Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLH-L30D-E1BD-C-NAV8SENSOR 1.08PSID 0.09" 16BIT 8DIP |
11 |
|
- |
DLH | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | 1.08PSI (7.48kPa) | I2C, SPI | 16b | ±1.5% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
TSCDJJN001PDUCVSENSOR 1PSID 0.09" .015V 8DIP |
79 |
|
Datasheet |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tray | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 15 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.09" (2.34mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±12.5PSI (±86.18kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
PS05-A100KP-5WSENSOR 14.5PSIA .15V |
10 |
|
Datasheet |
PS05 | Module | Box | Active | - | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | - | - | - | No Port | Temperature Compensated | Wire Leads | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | - | - |
|
PS04-G10KP-V4WSENSOR 1.45PSIG .15V |
8 |
|
Datasheet |
PS04 | Module | Box | Active | - | Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | - | 10V ~ 15V | - | No Port | Temperature Compensated | Wire Leads | 2.89PSI (20kPa) | -40°C ~ 125°C | - | - | - | - |
|
PS03-S600MP-V4WSENSOR 8700PSIS .12V |
8 |
|
Datasheet |
PS03 | Module | Box | Active | - | Sealed Gauge | 8702.26PSI (60000kPa) | Wheatstone Bridge | 80 mV ~ 120 mV | - | 10V ~ 15V | - | No Port | Temperature Compensated | Wire Leads | 13053PSI (90000kPa) | -40°C ~ 125°C | - | - | - | - |
|
DLHR-L01D-E1BD-C-NAV8SENSOR 0.04PSID 0.09" 18BIT 8DIP |
15 |
|
Datasheet |
DLHR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C, SPI | 18b | ±0.25% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.61PSI (24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
DLHR-L30D-E1BD-C-NAV8SENSOR 1.08PSID 0.09" 18BIT 8DIP |
8 |
|
Datasheet |
DLHR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | 1.08PSI (7.48kPa) | I2C, SPI | 18b | ±0.25% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
DLLR-L10D-E1BD-C-NAV8SENSOR 0.36PSID 0.09" 18BIT 8DIP |
3 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential | ±0.36PSI (±2.49kPa) | I2C, SPI | 18b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
ABP2MRRN004ND2B3BBSENS 0.144PSID 0.063" 14BIT SMD |
9 |
|
- |
ABP2 | 6-SMD, J-Lead, Dual Ports, Same Side | Box | Active | Medical Ventilation | Differential | -0.144PSI ~ 0.144PSI (-1.0kPa ~ 1.0kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.063" (1.6mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | 9.75PSI (67.25kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMD |
|
0.3 PSI-GF-HGRADE-MINISENSOR 0.3PSIG 0.18" .02V |
9 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.3PSI (2.07kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

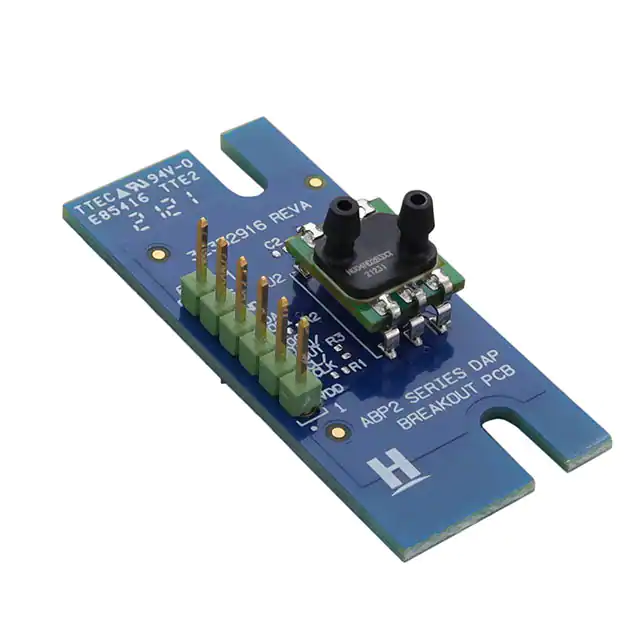

ABP2MDAN004ND2B3BBSENSOR 0.144PSID 0.12" 14BIT SMD |
6 |
|
- |
ABP2 | 6-SMD, J-Lead, Top Port | Box | Active | Medical Ventilation | Differential | -0.144PSI ~ 0.144PSI (-1.0kPa ~ 1.0kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | 9.75PSI (67.25kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMD |
|
BARO-A-4V-MINI-PRIMESENSOR 15.95PSIA 0.08" 4.25V |
9 |
|
Datasheet |
- | 4-SIP Module | Tube | Active | Board Mount | Absolute | 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±2% | 4.5V ~ 5.5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
PS02-G350KP-4WSENSOR 5.08PSIG |
11 |
|
Datasheet |
PS02 | Module | Box | Active | - | Gauge | 5.08PSI (35kPa) | I2C | - | ±0.5% | 3.1V ~ 3.6V | - | No Port | Temperature Compensated | Wire Leads | 15.23PSI (105kPa) | -40°C ~ 105°C | - | - | - | - |
|
|
PS02-G160MP-4WSENSOR 232.06PSIG |
10 |
|
Datasheet |
PS02 | Module | Box | Active | - | Gauge | 232.06PSI (1600kPa) | I2C | - | ±0.5% | 3.1V ~ 3.6V | - | No Port | Temperature Compensated | Wire Leads | 464.12PSI (3200kPa) | -40°C ~ 105°C | - | - | - | - |
|
PS01-A100KP-3WSENSOR 14.5PSIA 4.5V |
8 |
|
Datasheet |
PS01 | Module | Box | Active | - | Absolute | 14.5PSI (100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 29.01PSI (200kPa) | -40°C ~ 105°C | - | - | - | - |
|
2 INCH-D2-MV-MINISENSOR 0.07PSID 0.08" .01V |
5 |
|
Datasheet |
MDCX | 4-SIP Module | Bulk | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | Wheatstone Bridge | 0 mV ~ 10 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
PTE7100-23DC-0E050BNSENSOR 725.19PSIG 1/4"NPT 5V |
20 |
|
Datasheet |
PTE7100 | Cylinder, Threaded | Box | Active | - | Gauge | 725.19PSI (5000kPa) | Analog Voltage | 1 V ~ 5 V | ±1.5% | 8V ~ 32V | Male - 1/4" (6.35mm) NPT | Threaded | - | Connector | 1450.38PSI (10000kPa) | -40°C ~ 100°C | - | - | - | - |
|
26PCGFA6GSENSOR 250PSIC 0.2" .15V |
18 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±250PSI (±1723.69kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (10V) | ±0.7% | 2.5V ~ 16V | Male - 0.2" (5mm) Tube | Barbless | Temperature Compensated | PC Pin | ±500PSI (±3447.38kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
NPI-19J-015A2SENSOR 15PSIA 1/8"NPT 14BIT |
19 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Absolute | 15PSI (103.42kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Wire Leads | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19M-030G2SENSOR 30PSIG M12 14BIT |
16 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 30PSI (206.84kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - M12 x 1.0 | Threaded | Temperature Compensated | Wire Leads | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | - | - |
