Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLLR-L30D-E1BD-C-NAV8SENSOR 1.08PSID 0.09" 18BIT 8DIP |
17 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential | ±1.08PSI (±7.47kPa) | I2C, SPI | 18b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
M325M-00000E-010BGSENSOR 145.04PSIG 1/4" .02A |
16 |
|
Datasheet |
M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 145.04PSI (1000kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) BSPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 290PSI (2000kPa) | -40°C ~ 125°C | - | - | - | - |
|
100 PSI-A-4V-ASCXSENSOR 100PSIA 0.19" 4.75V 4SIP |
20 |
|
Datasheet |
ASCX | 4-SIP | Bulk | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0.25 V ~ 4.75 V | ±0.5% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -25°C ~ 105°C | - | - | Through Hole | 4-SIP |
|
30 PSI-A-4V-ASCXSENSOR 30PSIA 0.19" 4.75V 4SIP |
13 |
|
Datasheet |
ASCX | 4-SIP | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0.25 V ~ 4.75 V | ±0.5% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 100PSI (689.48kPa) | -25°C ~ 105°C | - | - | Through Hole | 4-SIP |
|

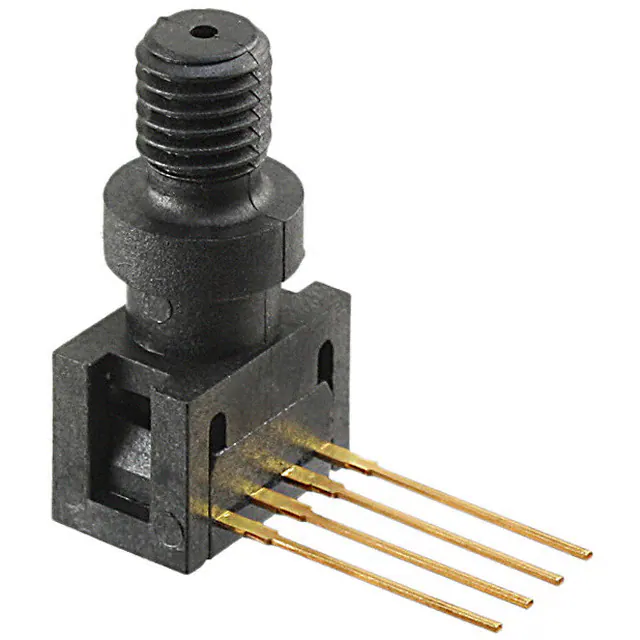

26PCDFM6GSENSOR 30PSIC 1/4" 0.1V |
20 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.2% | 2.5V ~ 16V | Male - 1/4" (6.35mm) UNF | Threaded | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
5 INCH-D-4VSENSOR 0.18PSID 0.19" 4.25V |
15 |
|
Datasheet |
ADCA | 4-SIP Module | Tube | Active | Board Mount | Differential | ±0.18PSI (±1.25kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±7.23PSI (±49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
1 INCH-G-4VSENSOR 0.04PSIG 0.19" 4.25V |
13 |
|
Datasheet |
ADCA | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.04PSI (0.25kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 3.61PSI (24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
114992650SENSOR 15.95PSI BAROMATRIC AU915 |
3 |
|
Datasheet |
SenseCAP | Module | Bulk | Active | - | - | 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) | - | - | ±0.015PSI (±0.1kPa) | 3.6V | - | - | - | - | - | -40°C ~ 85°C | - | - | - | - |
|
SDE5-D10-FP-Q4E-P-M8SENSOR 145.04PSI M8 |
4 |
|
Datasheet |
- | Module | Bulk | Active | - | Vacuum | 145.04PSI (1000kPa) | PNP | - | ±0.3% | 15V ~ 30V | Male - M8 | Threaded | - | - | - | 0°C ~ 50°C (TA) | - | - | - | - |
|
SDE5-D10-FP-Q6-P-M8SENSOR 145.04PSI M8 |
4 |
|
Datasheet |
- | Module | Bulk | Active | - | Vacuum | 145.04PSI (1000kPa) | PNP | - | ±0.3% | 15V ~ 30V | Male - M8 | Threaded | - | - | - | 0°C ~ 50°C (TA) | - | - | - | - |
|
|
SDE5-V1-O1-Q6-P-M8SENSOR 14.5PSI M8 |
6 |
|
Datasheet |
- | Module | Bulk | Active | - | Vacuum | 14.5PSI (100kPa) | PNP-NO | - | ±0.3% | 15V ~ 30V | Male - M8 | Threaded | - | - | - | 0°C ~ 50°C (TA) | - | - | - | - |
|
SDE5-V1-O-Q4-P-M8SENSOR 14.5PSI M8 |
3 |
|
Datasheet |
- | Module | Bulk | Active | - | Vacuum | 14.5PSI (100kPa) | PNP-NO | - | ±0.3% | 15V ~ 30V | Male - M8 | Threaded | - | - | - | 0°C ~ 50°C (TA) | - | - | - | - |
|
SPAN-B2R-G18M-PN-PN-L1SENSOR 14.5PSI M5 |
13 |
|
Datasheet |
- | Module Box with Display | Bulk | Active | - | Vacuum | -14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa) | NPN/PNP- NC/NO | - | ±1.5% | 15V ~ 30V | Male - M5 | Threaded | - | - | 72.52PSI (500kPa) | 0°C ~ 50°C (TA) | - | - | - | - |
|
SPAN-P10R-R18M-PN-PN-L1SENSOR 145.04PSI M5 |
2 |
|
Datasheet |
- | Module Box with Display | Bulk | Active | - | Vacuum | 145.04PSI (1000kPa) | NPN/PNP- NC/NO | - | ±1.5% | 15V ~ 30V | Male - M5 | Threaded | - | - | 217.56PSI (1500kPa) | 0°C ~ 50°C (TA) | - | - | - | - |
|
|
SPAN-B2R-R18M-PN-PN-L1SENSOR 14.5PSI M5 |
2 |
|
Datasheet |
- | Module Box with Display | Bulk | Active | - | Vacuum | -14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa) | NPN/PNP- NC/NO | - | ±1.5% | 15V ~ 30V | Male - M5 | Threaded | - | - | 72.52PSI (500kPa) | 0°C ~ 50°C (TA) | - | - | - | - |
|
PA-100-500D-SSENSOR 0.73PSID 0.1" 4.5V |
10 |
|
Datasheet |
PA-100 | 5-SIP Module | Bulk | Active | Board Mount | Differential | 0.73PSI (5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | - | 5V | Male - 0.1" (2.5mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -20°C ~ 70°C | - | - | Through Hole | - |
|
|
SPAN-P10R-R18M-PNLK-PNVBA-L1SENSOR 145.04PSI M5 5V |
7 |
|
Datasheet |
- | Module Box with Display | Bulk | Active | - | Vacuum | 145.04PSI (1000kPa) | Analog Current, Analog Voltage, NPN/PNP- NC/NO | 4 mA ~ 20 mA, 0 V ~ 10 V, 1 V ~ 5 V | ±1.5% | 15V ~ 30V | Male - M5 | Threaded | - | - | 217.56PSI (1500kPa) | 0°C ~ 50°C (TA) | - | - | - | - |
|
|
PA-100-200D-SSENSOR 0.29PSID 0.1" 4.5V |
3 |
|
Datasheet |
PA-100 | 5-SIP Module | Bulk | Active | Board Mount | Differential | 0.29PSI (2kPa) | Analog Voltage | 0.5 V ~ 4.5 V | - | 5V | Male - 0.1" (2.5mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 1.45PSI (10kPa) | -20°C ~ 70°C | - | - | Through Hole | - |
|
SPAU-P10R-T-N18M-L-PNLK-PNVBA-M8DSENSOR 145.04PSI 1/8"NPT 5V |
3 |
|
Datasheet |
- | Module Box with Display | Bulk | Active | - | Vacuum | 145.04PSI (1000kPa) | Analog Current, Analog Voltage, NPN/PNP- NC/NO | 4 mA ~ 20 mA, 0 V ~ 10 V, 1 V ~ 5 V | ±1.5% | 20V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | - | - | 217.56PSI (1500kPa) | 0°C ~ 50°C (TA) | - | - | - | - |
|
|
PA-100-500D-WSENSOR 0.73PSID 0.1" 4.5V |
6 |
|
Datasheet |
PA-100 | 5-SIP Module | Bulk | Active | Board Mount | Differential | -0.73PSI ~ 0.73PSI (-5kPa ~ 5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | - | 5V | Male - 0.1" (2.5mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -20°C ~ 70°C | - | - | Through Hole | - |
Pressure Sensors, Transducers Electronic Components
Explore Pressure Sensors, Transducers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
