Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELVH-L04D-HRRJ-C-N2A4SENSOR 0.15PSID 0.06" 14BIT |
53 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -0.15PSI ~ 0.15PSI (-1kPa ~ 1kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 10.88PSI (75kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
NPA-500B-10WGSENSOR 0.36PSIG 0.12" 4.5V |
76 |
|
Datasheet |
NPA-500 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 35PSI (241.32kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

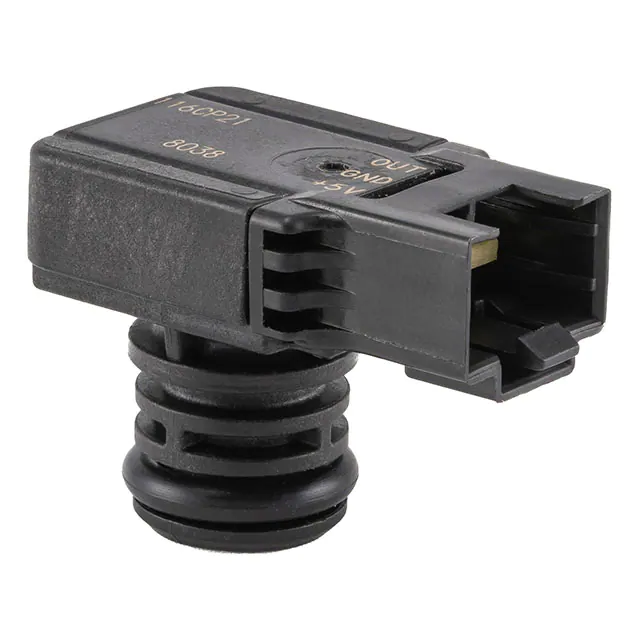

116CP21-M16S3-50SENSOR 230PSIS 0.59" 4.5V |
23 |
|
Datasheet |
116CP | Module | Box | Active | Board Mount | Sealed Gauge | 230PSI (1585.79kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 5V | Male - 0.59" (15mm) O-Ring | Barbed | - | Connector | 460PSI (3171.59kPa) | 2°C ~ 90°C | - | - | - | - |
|

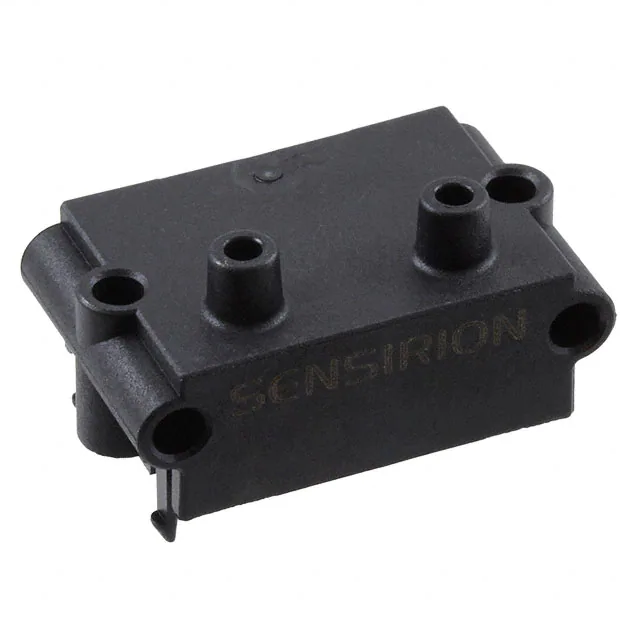

SDP806-125PASENSOR 0.018PSID 0.2" 4.5V |
50 |
|
Datasheet |
SDP800 | Module | Tray | Active | Board Mount | Differential | ±0.018PSI (± 0.125kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±3% | 3V ~ 5.5V | Male - 0.2" (5.2mm) Tube, Dual | Barbless | Temperature Compensated | - | 14.5PSI (100kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
ELVH-L20D-HAAH-C-NAA5SENSOR 0.73PSID 0.19" |
10 |
|
Datasheet |
ELV | 4-SIP, Dual Ports, Opposite Sides | Tray | Active | - | Differential | -0.73PSI ~ 0.73PSI (-5kPa ~ 5kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 12.62PSI (87kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
DLC-L10D-D4SENSOR 0.36PSID 0.12" 16BIT |
75 |
|
Datasheet |
DLC | 16-SOIC Module, Dual Top Ports | Tube | Active | Board Mount | Differential | ±0.36PSI (±2.5kPa) | I2C | 16 b | ±1.25% | 1.8V ~ 3.6V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 7.25PSI (50kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
|
NPA-500B-015DSENSOR 15PSID 0.12" 4.5V |
107 |
|
Datasheet |
NPA-500 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
ADP1141SENSOR 14.23PSIG 0.12" 0.1V |
99 |
|
Datasheet |
PF | 6-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 14.23PSI (98.1kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | 5V | Male - 0.12" (3mm) Tube | Barbless | Temperature Compensated | PC Pin | 28.46PSI (196.22kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
|
ADP1171SENSOR 71.11PSIG 0.12" 0.1V |
75 |
|
Datasheet |
PF | 6-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 71.11PSI (490.3kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | 5V | Male - 0.12" (3mm) Tube | Barbless | Temperature Compensated | PC Pin | 142.22PSI (980.57kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
ELVH-B002A-HRNJ-C-N2A4SENSOR 29.01PSIA 0.06" 14BIT |
41 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Side Port | Tray | Active | - | Absolute | 29.01PSI (200kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube | Barbed | Temperature Compensated | J Lead | 72.52PSI (500kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
24PCDFA6DSENSOR 30PSID 0.2" .33V |
47 |
|
Datasheet |
24PC | 4-SIP Module | Tray | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 330 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube, Dual | Barbless | - | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
ELVH-005D-HRRJ-C-N2A4SENSOR 4.93PSID 0.06" 14BIT |
10 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -0.44PSI ~ 4.93PSI (-3kPa ~ 34kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 14.94PSI (103kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
ADP51B63SENSOR 0.87PSIG 0.22" 4.5V |
28 |
|
Datasheet |
PS-A | 8-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Analog Voltage | 3.5 V ~ 4.5 V | ±2.5% | 5V | Male - 0.22" (5.45mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 1.74PSI (12kPa) | -5°C ~ 50°C | - | - | Through Hole | - |
|
ELVH-015A-HAND-C-N2A4SENSOR 14.94PSIA 0.19" 14BIT |
10 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Top Port | Tray | Active | - | Absolute | 15PSI (103.42kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 14.94PSI (103kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
ELVH-015G-HANH-C-NAA4SENSOR 14.94PSIG 0.19" |
10 |
|
Datasheet |
ELV | 4-SIP, Side Port | Tray | Active | - | Gauge | 15PSI (103.42kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 30.02PSI (207kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
ELVH-M100G-HANH-C-N2A4SENSOR 1.45PSIG 0.19" 14BIT |
10 |
|
Datasheet |
ELV | 4-SIP, Side Port | Tray | Active | - | Gauge | 1.45PSI (10kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 12.33PSI (85kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
|
ELVH-M025D-HRRJ-C-N3A4SENSOR 0.36PSID 0.06" 14BIT |
19 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -0.29PSI ~ 0.36PSI (-2kPa ~ 2.5kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 12.33PSI (85kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
ELVH-001D-HRRJ-C-N2A4SENSOR 1.02PSID 0.06" 14BIT |
10 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -1.02PSI ~ 1.02PSI (-7kPa ~ 7kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 14.94PSI (103kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
SSCDANV150PGAA5SENSOR 150PSIG 0.19" 4.5V 8DIP |
65 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
ELVH-M100D-HRRJ-C-NSA4SENSOR 1.45PSID 0.06" 14BIT |
10 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -0.15PSI ~ 1.45PSI (-1kPa ~ 10kPa) | SPI | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 12.33PSI (85kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
