Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLX90821LXG-DBA-008-SPSENSOR 0.18PSI 4.5V 16SOIC |
37 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | Tube | Active | Board Mount | - | -0.54PSI ~ 0.18PSI (-3.72kPa ~ 1.24kPa) | Analog Voltage | 0.5V ~ 4.5V | ±0.03PSI (±0.2kPa) | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 150°C | - | - | Surface Mount | 16-SOIC |
|
BLC-L01D-U2SENSOR 0.04PSIG 0.12" .008V |
7 |
|
Datasheet |
BLC | 6-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Gauge | ±0.04PSI (±0.25kPa) | Analog Voltage | 0 mV ~ 8 mV | ±0.5% | 0.9V ~ 1.8V | Male - 0.12" (3mm) Tube | Barbless | - | Gull Wing | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|

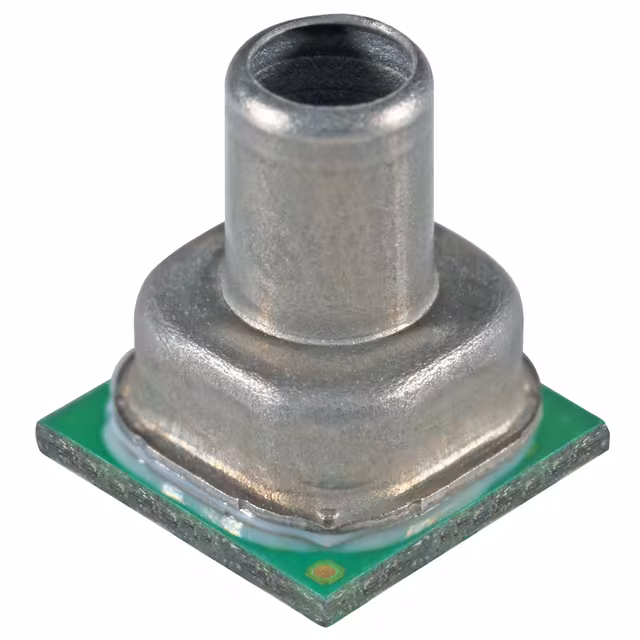

MPRLS0001PGN001SCSENSOR 1PSIG 0.1" 24BIT |
61 |
|
Datasheet |
MPR | 12-SMD Module | Tape & Reel (TR) | Active | - | Gauge | 1PSI (6.89kPa) | SPI | 24 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.1" (2.5mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 5PSI (34.47kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|

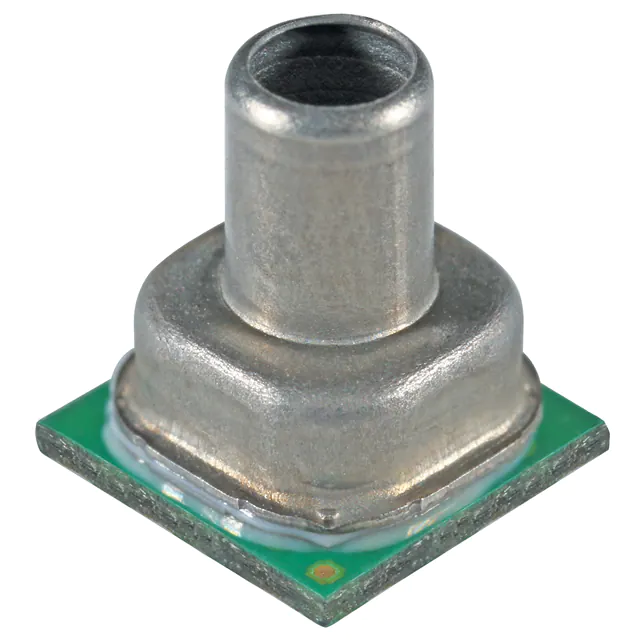

MPRLF0001PG00001CSENSOR 1PSIG 0.1" 24BIT |
72 |
|
Datasheet |
MPR | 12-SMD Module | Tape & Reel (TR) | Active | - | Gauge | 1PSI (6.89kPa) | I2C | 24 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.1" (2.5mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 5PSI (34.47kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
ABPLLNN600MGAA3SENSOR 8.7PSIG 0.11" 2.97V MOD |
97 |
|
Datasheet |
ABP | 6-SMD Module, No Lead | Tray | Active | Medical Ventilation | Vented Gauge | 8.7PSI (60kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.3V | Male - 0.11" (2.67mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 29.01PSI (200kPa) | -40°C ~ 85°C | - | - | Surface Mount | Module |
|
|
BLCR-L20D-U2SENSOR 0.72PSIG 0.12" .038V |
15 |
|
Datasheet |
BLCR | 6-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Gauge | ±0.72PSI (±4.98kPa) | Analog Voltage | 0 mV ~ 38 mV | ±0.5% | 1.8V ~ 3.3V | Male - 0.12" (3mm) Tube | Barbless | - | Gull Wing | 7.25PSI (50kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
BLCR-L10D-U2SENSOR 0.36PSIG 0.12" .032V |
10 |
|
Datasheet |
BLCR | 6-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Gauge | ±0.36PSI (±2.5kPa) | Analog Voltage | 0 mV ~ 32 mV | ±0.5% | 1.8V ~ 3.3V | Male - 0.12" (3mm) Tube | Barbless | - | Gull Wing | 7.25PSI (50kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
BLCR-L30D-U2SENSOR 1.08PSIG 0.12" .042V |
6 |
|
Datasheet |
BLCR | 6-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Gauge | ±1.08PSI (±7.47kPa) | Analog Voltage | 0 mV ~ 42 mV | ±0.5% | 1.8V ~ 3.3V | Male - 0.12" (3mm) Tube | Barbless | - | Gull Wing | 7.25PSI (50kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
|
PM4978SMALL 25VDC/0.25A ROUND PRESSUR |
16 |
|
Datasheet |
- | Module | Bulk | Active | - | - | - | - | - | - | - | - | - | - | Wire Leads | - | -10°C ~ 70°C | - | - | - | - |
|
NPA-730N-001DSENSOR 1PSID 14BIT 14SOIC |
97 |
|
Datasheet |
NPA-730 | 14-SOIC Module | Tape & Reel (TR) | Active | Board Mount | Differential | 1PSI (6.89kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | - | No Port | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
NPA-730B-030GSENSOR 30PSIG 0.12" 14BIT 14SOIC |
80 |
|
Datasheet |
NPA-730 | 14-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
NPA-730N-005DSENSOR 5PSID 14BIT 14SOIC |
26 |
|
Datasheet |
NPA-730 | 14-SOIC Module | Tape & Reel (TR) | Active | Board Mount | Differential | 5PSI (34.47kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | - | No Port | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
NPA-700B-015GSENSOR 15PSIG 0.12" 14BIT |
18 |
|
Datasheet |
NPA-700 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | I2C | 14 b | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NPA-500B-030GSENSOR 30PSIG 0.12" 4.5V |
54 |
|
Datasheet |
NPA-500 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NPA-100B-10WDSENSOR 0.36PSID 0.12" .12V |
176 |
|
Datasheet |
NPA-100 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Analog Voltage | 40 mV ~ 120 mV | ±1.5% | - | Male - 0.12" (3mm) Tube, Dual | Barbed | - | Gull Wing | 35PSI (241.32kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
BLC-L01D-D4SENSOR 0.04PSID 0.12" .008V |
28 |
|
Datasheet |
BLC | 16-SOIC Module, Dual Top Ports | Tube | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | 0 mV ~ 8 mV | ±0.5% | 0.9V ~ 1.8V | Male - 0.12" (3mm) Tube, Dual | Barbed | - | Gull Wing | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
|
BLC-L20D-D4SENSOR 0.72PSID 0.12" .038V |
18 |
|
Datasheet |
BLC | 16-SOIC Module, Dual Top Ports | Tube | Active | Board Mount | Differential | ±0.72PSI (±4.98kPa) | Analog Voltage | 0 mV ~ 38 mV | ±0.5% | 0.9V ~ 1.8V | Male - 0.12" (3mm) Tube, Dual | Barbed | - | Gull Wing | 7.25PSI (50kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
|
BLC-L10D-D4SENSOR 0.36PSID 0.12" .032V |
11 |
|
Datasheet |
BLC | 16-SOIC Module, Dual Top Ports | Tube | Active | Board Mount | Differential | ±0.36PSI (±2.5kPa) | Analog Voltage | 0 mV ~ 32 mV | ±0.5% | 0.9V ~ 1.8V | Male - 0.12" (3mm) Tube, Dual | Barbed | - | Gull Wing | 7.25PSI (50kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
|
NPA-730B-05WGSENSOR 0.18PSIG 0.12" 14BIT SOIC |
88 |
|
Datasheet |
NPA-730 | 14-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 0.18PSI (1.25kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 5PSI (34.47kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
BLCR-L30D-D4SENSOR 1.08PSID 0.12" .042V |
29 |
|
Datasheet |
BLCR | 16-SOIC Module, Dual Top Ports | Tube | Active | Board Mount | Differential | ±1.08PSI (±7.47kPa) | Analog Voltage | 0 mV ~ 42 mV | ±0.5% | 1.8V ~ 3.3V | Male - 0.12" (3mm) Tube, Dual | Barbed | - | Gull Wing | 7.25PSI (50kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
