Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS05-A250KP-5WSENSOR 36.26PSIA .15V |
8 |
|
Datasheet |
PS05 | Module | Box | Active | - | Absolute | 36.26PSI (250kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | - | - | - | No Port | Temperature Compensated | Wire Leads | 72.52PSI (500kPa) | -40°C ~ 125°C | - | - | - | - |
|
ELVH-M611A-HAND-I-PAA5SENSOR 15.95PSIA 0.19" |
34 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Active | - | Absolute | 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 14.94PSI (103kPa) | -20°C ~ 85°C | - | - | Through Hole | - |
|
NPC-1210-030A-3-LSENSOR 30PSIA 0.13" 0.1V |
42 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-015G-3-LSENSOR 15PSIG 0.13" 0.1V |
44 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-050G-3-LSENSOR 50PSIG 0.13" 0.1V |
38 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-100G-3-NSENSOR 100PSIG 0.13" 0.1V |
37 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
NPC-1220-100D-3SSENSOR 100PSID 0.12" .05V |
37 |
|
Datasheet |
NPC-1220 | 8-DIP Module | Bulk | Active | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | - | Male - 0.12" (3.04mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-015A-3-LSENSOR 15PSIA 0.13" 0.1V |
34 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-015D-3-LSENSOR 15PSID 0.13" 0.1V |
32 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
ELVH-L02D-HRRD-I-NAA5SENSOR 0.07PSID 0.06" 8DIP |
7 |
|
Datasheet |
ELV | 8-DIP (0.504", 12.80mm), Dual Ports, Same Side | Bulk | Active | - | Differential | 0.07PSI (0.5kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 9.72PSI (67kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
ELVH-L01D-HRRD-I-NAB4SENSOR 0.2KPA 0.06" 8DIP |
7 |
|
Datasheet |
ELV | 8-DIP (0.504", 12.80mm), Dual Ports, Same Side | Tray | Active | - | Differential | 0.2kPa | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 9.72PSI (67kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
MLDX-L05D-DX01-NSENSOR 5PSID 0.09" .017V 6DIP |
29 |
|
Datasheet |
MLDX | 6-DIP (0.600", 15.24mm), Dual Ports, Same Side | Tray | Active | - | Differential | ±5PSI (±34.47kPa) | Analog Voltage | 0 mV ~ 17 mV | ±0.3% | 20V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±7.23PSI (±49.83kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|

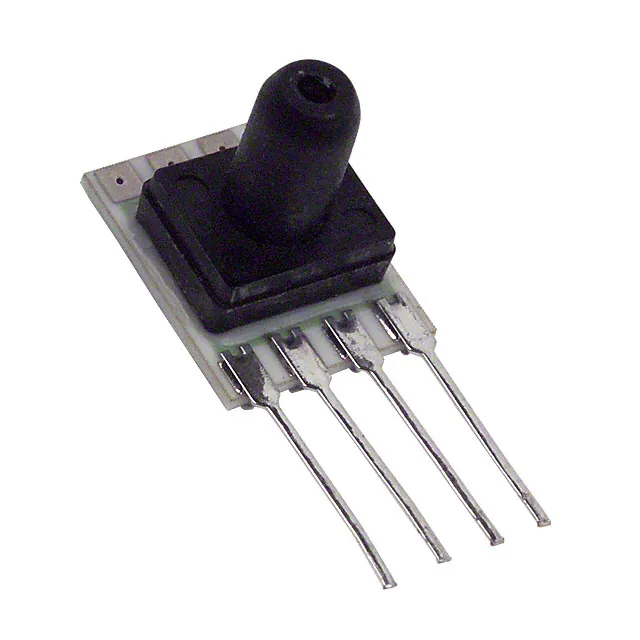

10 INCH-GF-CGRADE-MINISENSOR 0.36PSI 0.18" .02V |
55 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±1% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

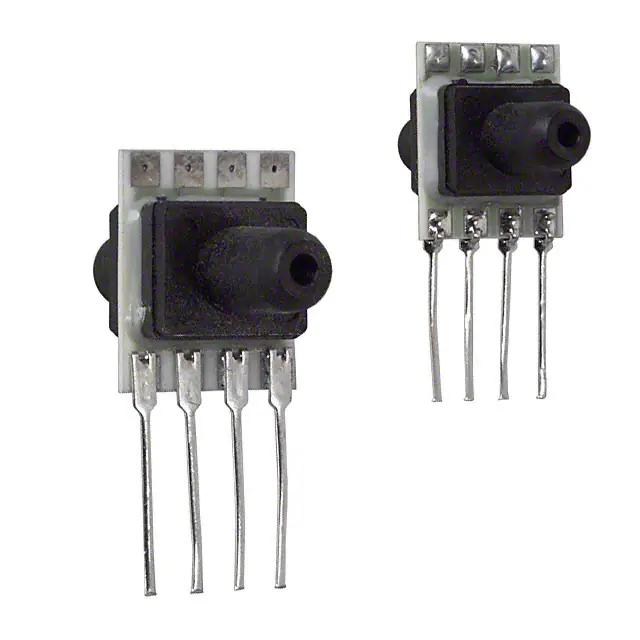

4 INCH-D-CGRADE-MINISENSOR 0.15PSID 0.18" .025V |
24 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±1% | 16V | Male - 0.18" (4.57mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
NPI-19A-100GVSENSOR 100PSIG 0.1V |
41 |
|
Datasheet |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | 10V | - | No Port | Temperature Compensated | Flex Cable | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | - | - |
|
DLVR-L10D-E1NS-C-NI3FSENSOR 0.36PSID 0.08" 14BIT 4SIP |
10 |
|
Datasheet |
DLVR | 4-SIP Module | Tube | Active | Board Mount | Differential | ±0.36PSI (±2.49kPa) | I2C | 14 b | ±0.75% | 3.3V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±7.23PSI (±49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
TBFLPNS015PGUCVSENSOR 15PSIG .02625V 6SMD |
15 |
|
Datasheet |
TBF | 6-SMD Module | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 26.25mV (5V) | ±0.5% | 1.5V ~ 12V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | 0°C ~ 50°C | - | - | Surface Mount | 6-SMD |
|
HSCDANN030PAAA5SENSOR 30PSIA 0.19" 4.5V 8DIP |
67 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCMRNN015PAAA3SENSOR 15PSIA 0.08" 2.97V 8SMD |
57 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Side Port | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
5 PSI-GF-HGRADE-MINISENSOR 5PSIG 0.18" .06V |
29 |
|
Datasheet |
ACPC | 4-SIP Module | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
