Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSCSSNT015PAAA5SENSOR 15PSIA 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP Module | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
TBPDANN060PGUCVSENSOR 60PSIG 0.08" .03V 4DIP |
0 |
|
- |
TBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 60PSI (413.69kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.08" (2.54mm) Tube | Barbed | Temperature Compensated | PC Pin | 145PSI (999.74kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|
|
TBPDANS150PGUCVSENSOR 150PSIG 0.08" .04575V DIP |
0 |
|
- |
TBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 45.75 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.08" (2.54mm) Tube | Barbed | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|

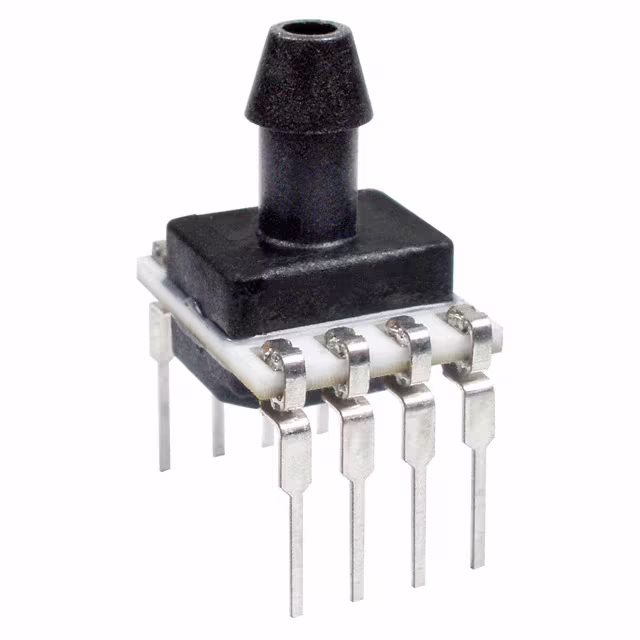

TSCDANN005PGUCVSENSOR 5PSIG 0.19" .025V 8DIP |
0 |
|
Datasheet |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
TSCDANN015PGUCVSENSOR 15PSIG 0.19" .02625V 8DIP |
0 |
|
Datasheet |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 26.25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

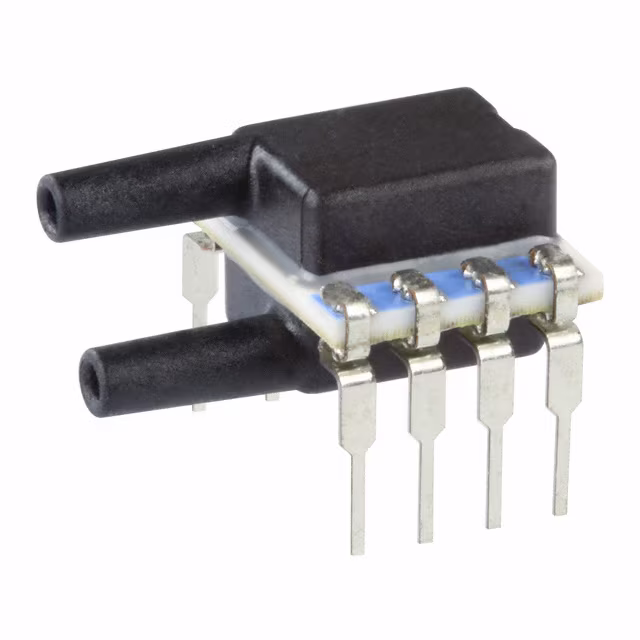

TSCDJJN015PDUCVSENSOR 15PSID 0.09" .0525V 8DIP |
0 |
|
Datasheet |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 52.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.09" (2.34mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
TSCDJJN030PDUCVSENSOR 30PSID 0.09" .0525V 8DIP |
0 |
|
Datasheet |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 52.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.09" (2.34mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±115PSI (±792.9kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
TSCDRRN001PDUCVSENSOR 1PSID 0.08" .015V 8DIP |
0 |
|
Datasheet |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 15 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±12.5PSI (±86.18kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
TSCDRRN005PDUCVSENSOR 5PSID 0.08" .05V 8DIP |
0 |
|
Datasheet |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
TSCMRRN010KDUCVSENSOR 1.45PSID 0.08" .022V 8SMT |
0 |
|
Datasheet |
TruStability® TSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1.45PSI (±10kPa) | Wheatstone Bridge | 0 mV ~ 22 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | ±12.62PSI (±87kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
TSCSAAN001PDUCVSENSOR 1PSID 0.19" .015V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 15 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±12.5PSI (±86.18kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSANN005PGUCVSENSOR 5PSIG 0.19" .025V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSHHN005PDUCVSENSOR 5PSID 0.16" .05V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSHHN100PDUCVSENSOR 100PSID 0.16" .06V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±245PSI (±1689.22kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSHNN100PGUCVSENSOR 100PSIG 0.19" .0305V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 30.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.78mm) Tube | Barbed | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSMNN001GDUCVSENSOR 145.04PSID .0885V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±145.04PSI (±1000kPa) | Wheatstone Bridge | 0 mV ~ 88.5 mV (5V) | ±0.15% | 1.5V ~ 12V | - | No Port | Temperature Compensated | PC Pin | ±246.56PSI (±1700kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSMNN100PDUCVSENSOR 100PSID .06V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (5V) | ±0.15% | 1.5V ~ 12V | - | No Port | Temperature Compensated | PC Pin | ±245PSI (±1689.22kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSMNN2.5BGUCVSENSOR 36.26PSIG .03175V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP Module | Bulk | Active | Board Mount | Vented Gauge | 36.26PSI (250kPa) | Wheatstone Bridge | 0 mV ~ 31.75 mV (5V) | ±0.15% | 1.5V ~ 12V | - | No Port | Temperature Compensated | PC Pin | 116.03PSI (800kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
TSCSNBN001PDUCVSENSOR 1PSID 0.19" .015V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 15 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±12.5PSI (±86.18kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSNBN150PGUCVSENSOR 150PSIG 0.19" .04575V SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 45.75 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
