Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPC15GFCSENSOR 15PSIG 0.15" .09V |
0 |
|
Datasheet |
CPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15" (3.8mm) Tube | Barbed | Temperature Compensated | - | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
9223011SENSOR 20000PSIS 0.1V |
0 |
|
- |
AB/HP | - | Bulk | Obsolete | - | Sealed Gauge | 20000PSI (137895.15kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.5% | 5V ~ 6V | - | No Port | Temperature Compensated | - | 30000PSI (206842.32kPa) | -54°C ~ 93°C | - | - | - | - |
|
|
9220104SENSOR 50PSIG 0.1V |
0 |
|
- |
AB/HP | - | Bulk | Obsolete | - | Vented Gauge | 50PSI (344.74kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.5% | 5V ~ 6V | - | No Port | Temperature Compensated | - | 250PSI (1723.69kPa) | -54°C ~ 93°C | - | - | - | - |
|
|
9222506SENSOR 3000PSIS 0.1V |
0 |
|
- |
AB/HP | - | Bulk | Obsolete | - | Sealed Gauge | 3000PSI (20684.27kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | 5V ~ 6V | - | No Port | Temperature Compensated | - | 6000PSI (41368.54kPa) | -54°C ~ 93°C | - | - | - | - |
|
|
142PC05DW79SENSOR 5PSID 0.2" 6V |
0 |
|
- |
140PC | 3-SIP Module | Bulk | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Analog Voltage | 1 V ~ 6 V | ±1.5% | 7V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
NPC-1220-030A3SSENSOR 30PSIA 0.12" .05V |
0 |
|
Datasheet |
NPC-1220 | 8-DIP Module | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | - | Male - 0.12" (3.04mm) Tube | Barbless | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
NBPLLNS001PSUNVSENSOR 1PSIS 0.13" |
0 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Discontinued at Digi-Key | Board Mount | Sealed Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | - | ±0.25% | 1.8V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | - | SMD (SMT) Tab | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|

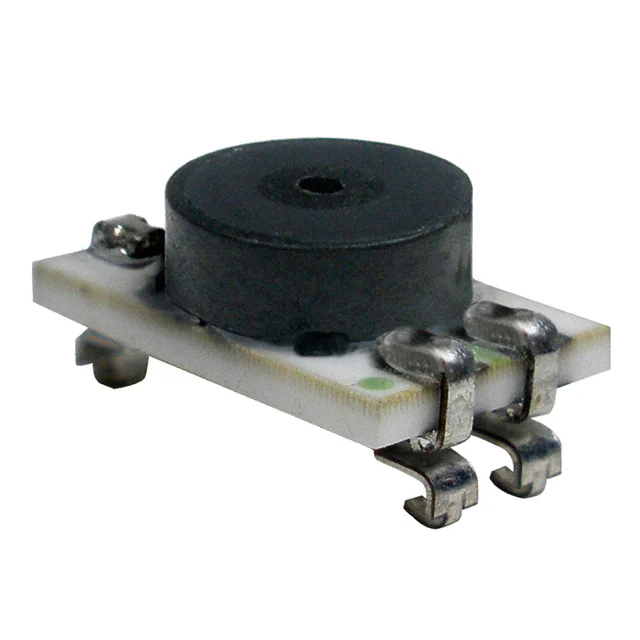

NBPMPNS005PSUNVSENSOR 5PSIS |
0 |
|
Datasheet |
NBP | 4-SMD, J-Lead, Top Port | Bulk | Discontinued at Digi-Key | Board Mount | Sealed Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | - | ±0.25% | 1.8V ~ 12V | - | No Port | - | J Lead | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
NBPDPNS005PSUNVSENSOR 5PSIS |
0 |
|
Datasheet |
NBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Discontinued at Digi-Key | Board Mount | Sealed Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | - | ±0.25% | 1.8V ~ 12V | - | No Port | - | PC Pin | - | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
B58610T4600A002SENSOR 36.26PSIA M5 .1225V TO39 |
0 |
|
Datasheet |
AT2 | Cylinder | Bulk | Active | Board Mount | Absolute | 36.26PSI (250kPa) | Wheatstone Bridge | 0 mV ~ 122.5 mV (5V) | ±2% | 10V | Male - M5 | Threaded | - | PC Pin | - | -30°C ~ 85°C | - | - | Through Hole | TO-39 |
|
|
B58610T4600A006SENSOR 232.06PSIA M5 .1248V TO39 |
0 |
|
Datasheet |
AT2 | Cylinder | Bulk | Active | Board Mount | Absolute | 232.06PSI (1600kPa) | Wheatstone Bridge | 0 mV ~ 124.8 mV (5V) | ±2% | 10V | Male - M5 | Threaded | - | PC Pin | - | -30°C ~ 85°C | - | - | Through Hole | TO-39 |
|

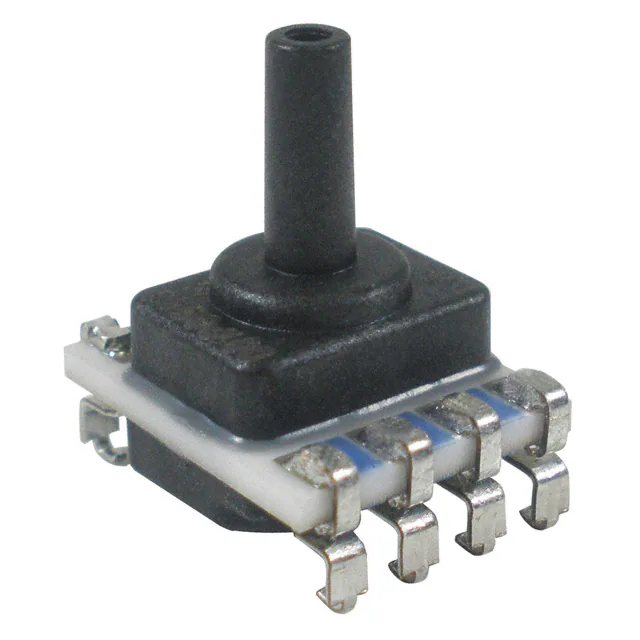

HSCMLNN150PGAA5SENSOR 150PSIG 0.1" 4.5V 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | J Lead | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
HSCMRRN030PD2A3SENSOR 30PSID 0.08" 12BIT 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±120PSI (±827.37kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMRRN100MD2A3SENSOR 1.45PSID 0.08" 12BIT 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1.45PSI (±10kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
SSCDANN015PD6A5SENSOR 15PSID 0.19" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCDRNN001PG2A3SENSOR 1PSIG 0.08" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
SSCDRNN015PA2A3SENSOR 15PSIA 0.08" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDRRN002NDSA5SENSOR 0.07PSID 0.08" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.07PSI (±0.5kPa) | SPI | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCSNBD010NDAA5SENSOR 0.36PSID 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.36PSI (±2.49kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±12.65PSI (±87.21kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSNBN002NDAA5SENSOR 0.07PSID 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.07PSI (±0.5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
