Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TBPDANS015PGUCVSENSOR 15PSIG 0.11" .02625V 4DIP |
0 |
|
Datasheet |
TBP | 4-DIP (0.453", 11.50mm), Top Port | Tray | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 26.25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|
ADP1181SENSOR 120.9PSIG 0.12" 0.1V |
0 |
|
Datasheet |
PF | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 120.9PSI (833.6kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.6% | 5V | Male - 0.12" (3mm) Tube | Barbless | Temperature Compensated | PC Pin | 181.36PSI (1250.4kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
ADP42010SENSOR 0.71PSIG 0.1" .04V |
0 |
|
Datasheet |
PS | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 0.71PSI (4.9kPa) | Wheatstone Bridge | 0 mV ~ 40 mV | ±0.7% | - | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 1.42PSI (9.8kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
|
ADP42810SENSOR 120.9PSIG 0.1" 0.1V |
0 |
|
Datasheet |
PS | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 120.9PSI (833.6kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.6% | - | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 181.36PSI (1250.4kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
ADP5130SENSOR 7.25PSIG 0.12" 4.5V |
0 |
|
Datasheet |
PS-A | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 14.5PSI (100kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|
ADP5131SENSOR 7.25PSIG 0.12" 4.5V |
0 |
|
Datasheet |
PS-A | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 14.5PSI (100kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|
HSCMRRD160MD3A3SENSOR 2.32PSID 0.08" 12BIT 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±2.32PSI (±16kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMRRN002NG2A3SENSOR 0.07PSIG 0.08" 12BIT 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 0.07PSI (0.5kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | 9.76PSI (67.28kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMRRN250MDSA3SENSOR 3.63PSID 0.08" 12BIT 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±3.63PSI (±25kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
HSCSNBV015PD4A5SENSOR 15PSID 0.19" 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
NBPDANS015PGUNVSENSOR 15PSIG 0.75" .075V |
0 |
|
Datasheet |
NBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 75 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.75" (1.91mm) Tube | Barbed | - | PC Pin | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NBPDANS060MGUNVSENSOR 0.87PSIG 0.75" .0285V |
0 |
|
Datasheet |
NBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Wheatstone Bridge | 0 mV ~ 28.5 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.75" (1.91mm) Tube | Barbed | - | PC Pin | 12.33PSI (85kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|

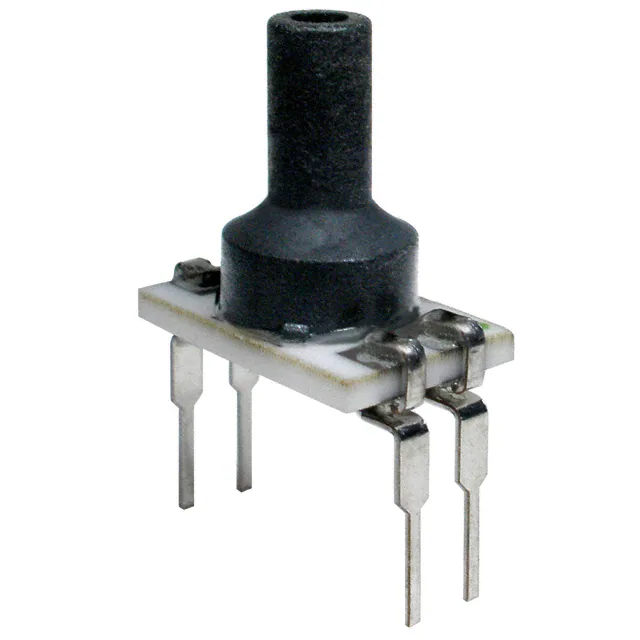

NBPDLNN001PGUNVSENSOR 1PSIG 0.13" .0325V |
0 |
|
Datasheet |
NBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 32.5 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | - | PC Pin | 10PSI (68.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
NBPLLNS160MGUNVSENSOR 2.32PSIG 0.13" .0755V |
0 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Active | Board Mount | Vented Gauge | 2.32PSI (16kPa) | Wheatstone Bridge | 0 mV ~ 75.5 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | - | SMD (SMT) Tab | 12.33PSI (85kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

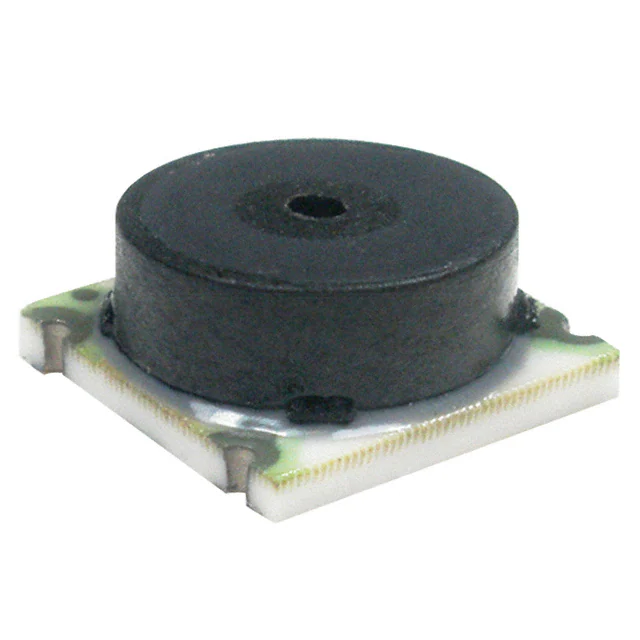

NBPLPNN100PAUNVSENSOR 100PSIA .086V |
0 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 86 mV (5V) | ±0.25% | 1.8V ~ 12V | - | No Port | - | SMD (SMT) Tab | 240PSI (1654.74kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NBPLPNS001PGUNVSENSOR 1PSIG .0325V |
0 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 32.5 mV (5V) | ±0.25% | 1.8V ~ 12V | - | No Port | - | SMD (SMT) Tab | 10PSI (68.95kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
NSCSAAN004NDUNVSENSOR 0.15PSID 0.19" .262V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Active | Board Mount | Differential | ±0.15PSI (±1kPa) | Wheatstone Bridge | 0 mV ~ 262 mV (5V) | ±0.25% | 2.7V ~ 6.5V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | - | PC Pin | ±9.76PSI (±67.27kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
NSCSHHN010NDUNVSENSOR 0.36PSID 0.16" .0785V SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.36PSI (±2.49kPa) | Wheatstone Bridge | 0 mV ~ 78.5 mV (5V) | ±0.25% | 2.7V ~ 6.5V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | - | PC Pin | ±12.29PSI (±84.72kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
NSCSHNN100PAUNVSENSOR 100PSIA 0.19" .063V |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 63 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.78mm) Tube | Barbed | - | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SSCSLNN600MG2A3SENSOR 8.7PSIG 0.1" 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Vented Gauge | 8.7PSI (60kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
