Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

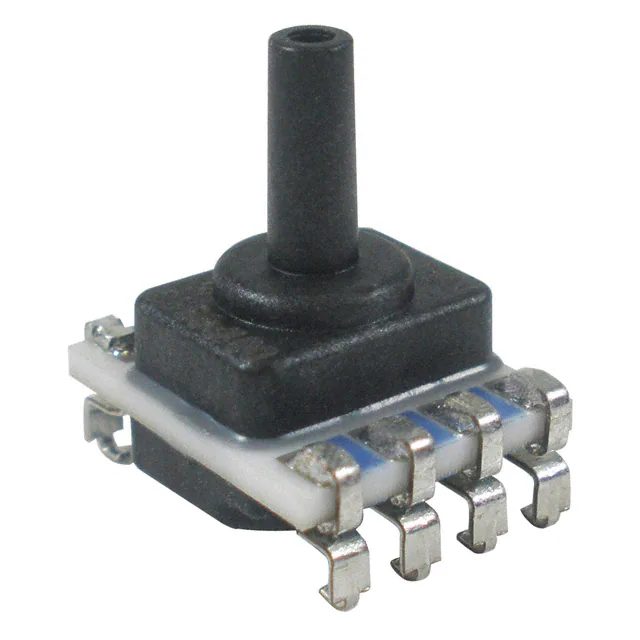

SSCMLNN010MGAA5SENSOR 0.15PSIG 0.1" 4.5V 8SMT |
0 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Top Port | Bulk | Active | Board Mount | Vented Gauge | 0.15PSI (1kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 9.79PSI (67.5kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
NSCDLNN100PGUNVSENSOR 100PSIG 0.1" .086V 8DIP |
0 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 86 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.1" (2.47mm) Tube | Barbless | - | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

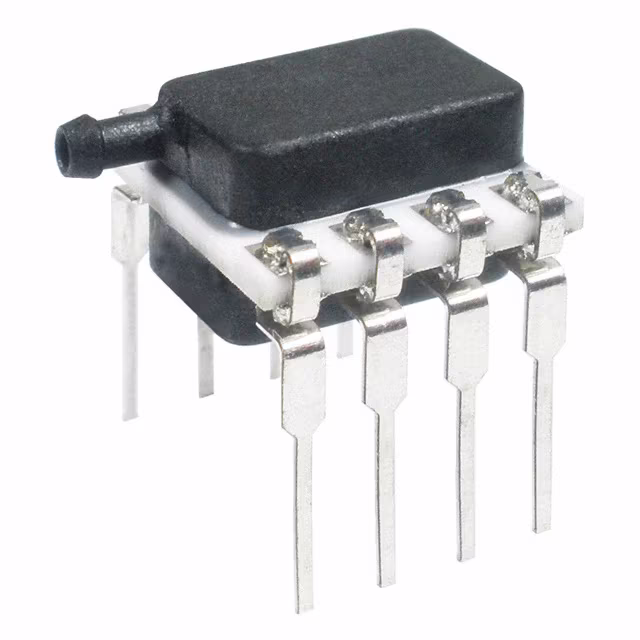

NSCDRNN015PAUNVSENSOR 15PSIA 0.08" .075V 8DIP |
0 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 75 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube | Barbed | PC Polished | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

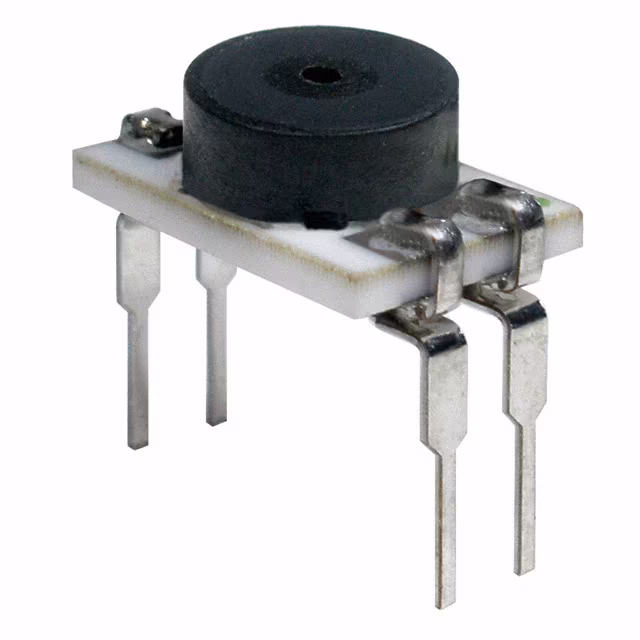

NBPDPNS001PGUNVSENSOR 1PSIG .0325V |
0 |
|
Datasheet |
NBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 32.5 mV (5V) | ±0.25% | 1.8V ~ 12V | - | No Port | - | PC Pin | 10PSI (68.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
NBPLPNN015PAUNVSENSOR 15PSIA .075V |
0 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 75 mV (5V) | ±0.25% | 1.8V ~ 12V | - | No Port | - | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NBPLPNN030PAUNVSENSOR 30PSIA .105V |
0 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.25% | 1.8V ~ 12V | - | No Port | - | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
ADP51A11SENSOR 5.8PSIG 0.12" 2.7V |
0 |
|
Datasheet |
PS-A | 6-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 5.8PSI (40kPa) | Analog Voltage | 0.3 V ~ 2.7 V | ±4% | 3V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 11.6PSI (80kPa) | -5°C ~ 50°C | - | - | Through Hole | - |
|
D6F-PH5050AD3SENSOR 0.07PSID 0.19" 12BIT 4SIP |
0 |
|
Datasheet |
D6F-PH | 4-SIP, Dual Top Ports | Bulk | Obsolete | - | Differential | -0.07PSI ~ 0.07PSI (-0.50kPa ~ 0.50kPa) | I2C | 12 b | ±3% | 2.3V ~ 3.6V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 1.45PSI (10kPa) | -20°C ~ 80°C | - | - | Through Hole | 4-SIP |
|
1230-015A-1LSENSOR 15PSIA 0.13" 0.1V |
0 |
|
Datasheet |
1230 | 8-DIP Module | - | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
SSCMRRN005PD3A3SENSOR 5PSID 0.08" 12BIT 8SMT |
0 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
ADP1231SENSOR 7.11PSIG 0.12" 0.1V |
0 |
|
Datasheet |
PF | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 7.11PSI (49kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | 5V | Male - 0.12" (3mm) Tube | Barbless | Temperature Compensated | PC Pin | 14.21PSI (98kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
NSCDRRN001NDUNVSENSOR 0.04PSID 0.08" .0785V DIP |
0 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tray | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Wheatstone Bridge | 0 mV ~ 78.5 mV (5V) | ±0.25% | 2.7V ~ 6.5V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | - | PC Pin | ±9.76PSI (±67.28kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

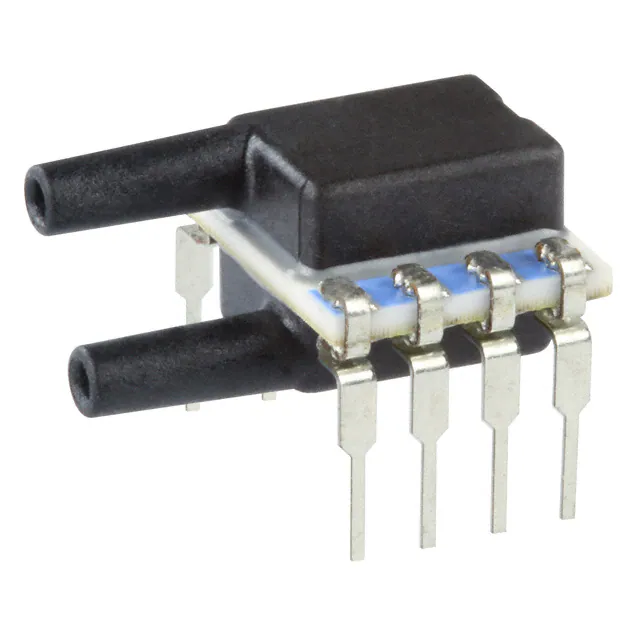

NSCDJJN005NDUNVSENSOR 0.18PSID 0.09" .3275V DIP |
0 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tray | Active | Board Mount | Differential | ±0.18PSI (±1.25kPa) | Wheatstone Bridge | 0 mV ~ 327.5 mV (5V) | ±0.25% | 2.7V ~ 6.5V | Male - 0.09" (2.34mm) Tube, Dual | Barbless | - | PC Pin | ±10.84PSI (±74.75kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
TSCDLNN100PGUCVSENSOR 100PSIG 0.1" .0305V 8DIP |
0 |
|
Datasheet |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Top Port | Tray | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 30.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.1" (2.47mm) Tube | Barbless | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
TSCDLNN001PGUCVSENSOR 1PSIG 0.1" .0075V 8DIP |
0 |
|
Datasheet |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Top Port | Tray | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 7.5 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.1" (2.47mm) Tube | Barbless | Temperature Compensated | PC Pin | 12.7PSI (87.56kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
TSCSNBN015PDUCVSENSOR 15PSID 0.19" .0525V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Dual Ports, Same Side | Tray | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 52.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

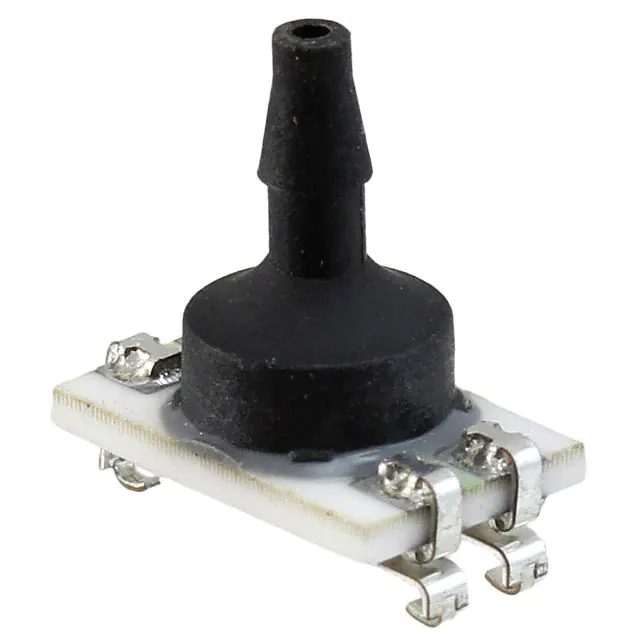

TBPMANN005PGUCVSENSOR 5PSIG 0.11" .025V 4SMT |
0 |
|
Datasheet |
TBP | 4-SMD, J-Lead, Top Port | Tray | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | 4-SMT |
|
TBPLLNN005PGUCVSENSOR 5PSIG 0.13" .025V 6SMT |
0 |
|
Datasheet |
TBP | 6-SMD, No Lead, Top Port | Tray | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | 6-SMT |
|
|
TBPLLNS001PGUCVSENSOR 1PSIG 0.13" .0075V 6SMT |
0 |
|
Datasheet |
TBP | 6-SMD, No Lead, Top Port | Tray | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 7.5 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 12.7PSI (87.56kPa) | -40°C ~ 125°C | - | - | Surface Mount | 6-SMT |
|
|
TBPLLNN015PGUCVSENSOR 15PSIG 0.13" .0275V 6SMT |
0 |
|
Datasheet |
TBP | 6-SMD, No Lead, Top Port | Tube | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 27.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | 6-SMT |
