Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1210A-100D-3SSENSOR 100PSID 0.13" 0.1V |
0 |
|
Datasheet |
- | 8-DIP Module | Tray | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | - | - | Male - 0.13" (3.18mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1210A-100G-1SSENSOR 100PSIG 0.13" 0.1V |
0 |
|
Datasheet |
- | 8-DIP Module | Tray | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | - | - | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1220A-002D-3SSENSOR 2PSID 0.13" .05V |
0 |
|
Datasheet |
- | 8-DIP Module | Tray | Obsolete | Board Mount | Differential | 2PSI (13.79kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | - | 1.235V | Male - 0.13" (3.18mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
1220A-005D-3SSENSOR 5PSID 0.13" .05V |
0 |
|
Datasheet |
- | 8-DIP Module | Tray | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | - | 1.235V | Male - 0.13" (3.18mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1220A-015A-3SSENSOR 15PSIA 0.13" .05V |
0 |
|
Datasheet |
- | 8-DIP Module | Tray | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | - | 1.235V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1220A-030G-3SSENSOR 30PSIG 0.13" .05V |
0 |
|
Datasheet |
- | 8-DIP Module | Tray | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | - | 1.235V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1230-015A-3SSENSOR 15PSIA 0.13" 0.1V |
0 |
|
Datasheet |
1230 | 8-DIP Module | Tray | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1230-015D-3SSENSOR 15PSID 0.13" 0.1V |
0 |
|
Datasheet |
1230 | 8-DIP Module | Tray | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.18mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1240-015A-3SSENSOR 15PSIA 0.13" 0.1V |
0 |
|
Datasheet |
1240 | 8-DIP Module | Tray | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | 1.235V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
325535009-00SENSOR 203.05PSIA 16BIT |
0 |
|
Datasheet |
- | 8-SMD Module | Tray | Obsolete | Board Mount | Absolute | 203.05PSI (1400kPa) | SPI | 16 b | - | 2.2V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 435.11PSI (3000kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

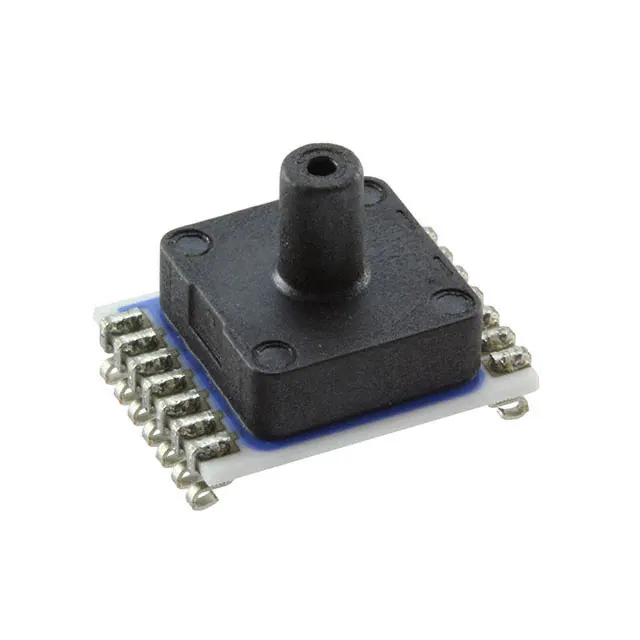

325536008-00SENSOR 14.5PSIG 0.12" 16BIT |
0 |
|
Datasheet |
- | 14-SMD Module | Tube | Obsolete | Board Mount | Vented Gauge | -5.8PSI ~ 14.5PSI (-40kPa ~ 100kPa) | SPI | 16 b | - | 2.2V ~ 3.6V | Male - 0.12" (3mm) Tube | Barbless | - | SMD (SMT) Tab | - | -40°C ~ 85°C | - | - | Surface Mount | - |
|
325541009-00SENSOR 203.05PSIA 16BIT |
0 |
|
Datasheet |
- | 8-SMD Module | Tube | Obsolete | Board Mount | Absolute | 203.05PSI (1400kPa) | SPI | 16 b | - | 2.2V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 435.11PSI (3000kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
KP254XTMA1SENSOR 16.68PSIA 10BIT |
0 |
|
Datasheet |
- | 8-SMD Module | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 5.8PSI ~ 16.68PSI (40kPa ~ 115kPa) | SPI | 10 b | ±0.44PSI (±3kPa) | 3.3V, 5V | - | No Port | Temperature Compensated | SMD (SMT) Tab | - | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | - |
|
HPB200X5DA-BSENSOR 17.4PSIA 0.13" |
0 |
|
Datasheet |
HPB | Module Cube | Bulk | Active | - | Absolute | 7.25PSI ~ 17.4PSI (50kPa ~ 120kPa) | RS-485 | - | ±0.012PSI (±0.08kPa) | 5.5V ~ 30V | Male - 0.13" (3.18mm) Tube | Barbed | - | Connector | 60.19PSI (415kPa) | -40°C ~ 85°C | - | - | - | - |
|
NPC-100SENSOR 5.8PSIG 0.19" |
0 |
|
Datasheet |
NPC-100, NovaSensor | Module | Tray | Active | Board Mount | Vented Gauge | -0.97PSI ~ 5.8PSI (-6.67kPa ~ 40kPa) | Wheatstone Bridge | - | ±2% | 1V ~ 10V | Male - 0.19" (4.8mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 125PSI (861.84kPa) | 15°C ~ 40°C | - | - | - | - |
|
SDP1000-RSENSOR 0.072PSID 0.2" 4V MODULE |
0 |
|
Datasheet |
SDP1000 | Module | Tray | Obsolete | Board Mount | Differential | -0.003PSI ~ 0.072PSI (-0.02kPa ~ 0.5kPa) | Analog Voltage | 0.25 V ~ 4 V | ±0.3% | 4.75V ~ 5.25V | Male - 0.2" (5.2mm) Tube, Dual | Barbed | Temperature Compensated | - | 14.5PSI (100kPa) | -10°C ~ 60°C | - | - | - | Module |
|
|
SDP2108-RSENSOR 0.51PSID 0.2" 4V MODULE |
0 |
|
Datasheet |
SDPx108 | Module | Tray | Obsolete | Board Mount | Differential | 0.51PSI (3.49kPa) | Analog Voltage | 0.25 V ~ 4 V | ±0.4% | 5V | Male - 0.2" (5.2mm) Tube, Dual | Barbed | Temperature Compensated | - | 14.5PSI (100kPa) | -40°C ~ 80°C | - | - | - | Module |
|
SDP606SENSOR 0.07PSID 16BIT 4SIP |
0 |
|
Datasheet |
SDP600 | 4-SIP Module | Tray | Obsolete | Board Mount | Differential | ±0.07PSI (±0.5kPa) | I2C | 16b | ±3% | 2.7V ~ 3.3V | - | No Port | Temperature Compensated | PC Pin | ±72.52PSI (±500kPa) | -20°C ~ 80°C | - | - | Through Hole | 4-SIP |
|
SDP616SENSOR 0.07PSID 0.2" 16BIT 4SIP |
0 |
|
Datasheet |
SDP600 | 4-SIP Module | Tray | Obsolete | Board Mount | Differential | ±0.07PSI (±0.5kPa) | I2C | 16b | ±3% | 2.7V ~ 3.3V | Male - 0.2" (5.2mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±72.52PSI (±500kPa) | -20°C ~ 80°C | - | - | Through Hole | 4-SIP |
|
KP253XTMA1SENSOR BAROMETRIC DSOF8 |
0 |
|
Datasheet |
- | 8-SMD Module | Tape & Reel (TR) | Obsolete | Board Mount | - | - | - | - | - | - | - | - | - | - | - | - | Automotive | AEC-Q100 | Surface Mount | PG-DSOF-8-16 |
Pressure Sensors, Transducers Electronic Components
Explore Pressure Sensors, Transducers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
