Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

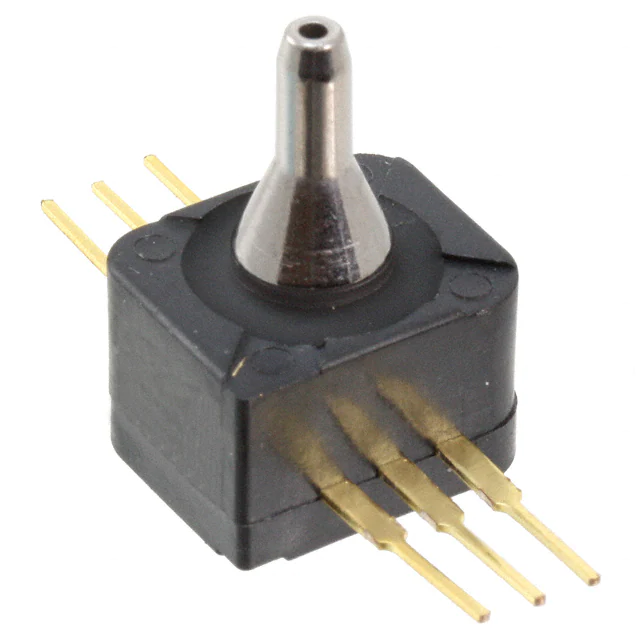

40PC250G1ASENSOR 250PSIG 0.18" 4.5V |
0 |
|
Datasheet |
40PC | 6-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 250PSI (1723.69kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±3% | 4.75V ~ 5.25V | Male - 0.18" (4.57mm) Tube | Barbless | Amplified Output | PC Pin | 500PSI (3447.38kPa) | -45°C ~ 125°C | - | - | Through Hole | - |
|
9220101SENSOR GAUGE 1-6 PSI |
0 |
|
- |
- | Cylinder, Threaded | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | Connector | - | - | - | - | - | - |
|
|
9242802SENSOR 15PSIG .02A |
0 |
|
- |
BL | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 12V ~ 30V | - | No Port | Amplified Output, Temperature Compensated | Connector | 30PSI (206.84kPa) | -40°C ~ 82°C | - | - | - | - |
|
|
9302904SENSOR GAUGE 0-100 PSI |
0 |
|
- |
- | Cylinder | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | Solder Tab | - | - | - | - | - | - |
|
|
9303004SENSOR SEALED GAUGE 0-100 PSI |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
9306704SENSOR 100PSIA 1/8"NPT 6V |
0 |
|
Datasheet |
SA Series | - | Bulk | Obsolete | - | Absolute | 100PSI (689.48kPa) | Analog Voltage | 1 V ~ 6 V | ±1% | - | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | - | 200PSI (1378.95kPa) | -55°C ~ 105°C | - | - | - | - |
|
|
9308701SENSOR GAUGE 0-15 PSI |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CPXL04GFSENSOR 0.15PSIG 0.15" .068V |
0 |
|
Datasheet |
CPXL | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 68 mV (5V) | ±2% | 3V ~ 12V | Male - 0.15" (3.8mm) Tube | Barbed | - | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
NBPLANN030PAUNVSENSOR 30PSIA 0.11" .105V |
0 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | - | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
NBPDLNN030PGUNVSENSOR 30PSIG 0.13" .105V |
0 |
|
Datasheet |
NBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | - | PC Pin | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NBPDLNN060PAUNVSENSOR 60PSIA 0.13" .105V |
0 |
|
Datasheet |
NBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Active | Board Mount | Absolute | 60PSI (413.69kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | - | PC Pin | 120PSI (827.37kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
B58600C5010A003SENSOR 3.63PSIA 0.1V DIE |
0 |
|
Datasheet |
C27 | Die | Bulk | Active | Board Mount | Absolute | 3.63PSI (25kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (5V) | ±2% | 1V ~ 5V | - | No Port | - | SMD (SMT) Tab | 43.51PSI (300kPa) | -40°C ~ 135°C | - | - | - | Die |
|
|
B58600C5010A004SENSOR 5.8PSIA .12V DIE |
0 |
|
Datasheet |
C27 | Die | Bulk | Active | Board Mount | Absolute | 5.8PSI (40kPa) | Wheatstone Bridge | 0 mV ~ 120 mV (5V) | ±2% | 1V ~ 5V | - | No Port | - | SMD (SMT) Tab | 43.51PSI (300kPa) | -40°C ~ 135°C | - | - | - | Die |
|
|
B58600C5010A005SENSOR 14.5PSIA .12V DIE |
0 |
|
Datasheet |
C27 | Die | Bulk | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 120 mV (5V) | ±2% | 1V ~ 5V | - | No Port | - | SMD (SMT) Tab | 43.51PSI (300kPa) | -40°C ~ 135°C | - | - | - | Die |
|
|
B58600D8010A011SENSOR 36.26PSIA .12V DIE |
0 |
|
- |
C28 | Die | Bulk | Active | Board Mount | Absolute | 36.26PSI (250kPa) | Wheatstone Bridge | 0 mV ~ 120 mV (5V) | ±2% | 1V ~ 5V | - | No Port | - | SMD (SMT) Tab | 43.51PSI (300kPa) | -40°C ~ 135°C | - | - | - | Die |
|
|
XPC30GTCSENSOR 30PSIG 0.19" .09V |
0 |
|
Datasheet |
XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | - | 90PSI (620.53kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPC100GTCSENSOR 100PSIG 0.19" 0.1V |
0 |
|
Datasheet |
XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | - | 250PSI (1723.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPC100GFHSENSOR 100PSIG 0.19" 0.1V |
0 |
|
Datasheet |
XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | - | 250PSI (1723.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPC05DTHSENSOR 5PSID 0.19" .06V |
0 |
|
Datasheet |
XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | - | 15PSI (103.42kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPC100DCSENSOR 100PSID 0.1V |
0 |
|
Datasheet |
XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (12V) | ±1% | 3V ~ 16V | - | No Port | Temperature Compensated | - | 250PSI (1723.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
