Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ND100DSENSOR 100PSID 0.08" 16BIT |
247 |
|
Datasheet |
ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 100PSI (689.48kPa) | I2C, SPI | 16 b | ±0.25% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 200PSI (1378.95kPa) | -20°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
|
ND150ASENSOR 150PSIA 0.08" 16BIT |
246 |
|
Datasheet |
ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 150PSI (1034.21kPa) | I2C, SPI | 16 b | ±0.25% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 250PSI (1723.69kPa) | -20°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
|
ND100ASENSOR 100PSIA 0.08" 16BIT |
241 |
|
Datasheet |
ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 100PSI (689.48kPa) | I2C, SPI | 16 b | ±0.25% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 200PSI (1378.95kPa) | -20°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
|
ND150DSENSOR 150PSID 0.08" 16BIT |
239 |
|
Datasheet |
ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 150PSI (1034.21kPa) | I2C, SPI | 16 b | ±0.25% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 250PSI (1723.69kPa) | -20°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
|
ND060DSENSOR 60PSID 0.08" 16BIT |
235 |
|
Datasheet |
ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 60PSI (413.69kPa) | I2C, SPI | 16 b | ±0.25% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 150PSI (1034.21kPa) | -20°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
24PCBFA6DSENSOR 5PSID 0.2" .115V |
1,877 |
|
Datasheet |
24PC | 4-SIP Module | Tray | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 115 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube, Dual | Barbless | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SSCDRNN250MGAA5SENSOR 3.63PSIG 0.08" 4.5V 8DIP |
429 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Active | Board Mount | Vented Gauge | 3.63PSI (25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 20.31PSI (140kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

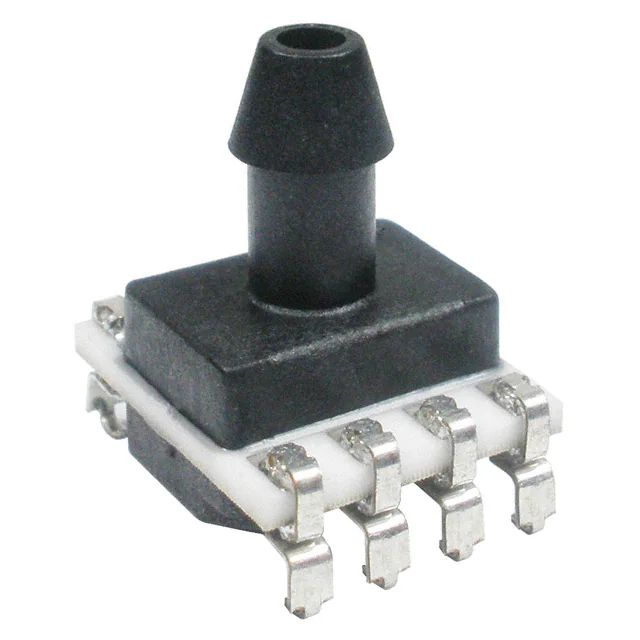

HSCMANN100PGSA5SENSOR 100PSIG 0.19" 12BIT 8SMD |
1,105 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMAND1.6BGSA3SENSOR 23.21PSIG 0.19" 12BIT SMD |
152 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Active | Board Mount | Vented Gauge | 23.21PSI (160kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 58.02PSI (400kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
2513130810301SENSOR 14.5PSID 0.087" 15BIT |
230 |
|
Datasheet |
WSEN-PDUS | 8-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | - | Differential | 14.5PSI (100kPa) | I2C | 15 b | ±0.3% | 4.75V ~ 5.25V | Male - 0.087" (2.2mm) Tube, Dual | Barbless | - | SMD (SMT) Tab | 43.51PSI (300kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
NPA-730B-05WDSENSOR 0.18PSID 0.12" 14BIT SOIC |
162 |
|
Datasheet |
NPA-730 | 14-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 5PSI (34.47kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
BPS125-AD0P04-2DGSENSOR 0.04PSID 0.087" 13BIT SMD |
133 |
|
Datasheet |
BPS125 | 8-SMD, J-Lead, Dual Ports, Same Side | Tape & Reel (TR) | Active | - | Differential | 0.04PSI (0.25kPa) | Digital - I2C | 13 b | ±0.25% | 3V ~ 3.6V | Male - 0.087" (2.2mm) Tube, Dual | Barbed | - | J Lead | 0.18PSI (1.25kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|

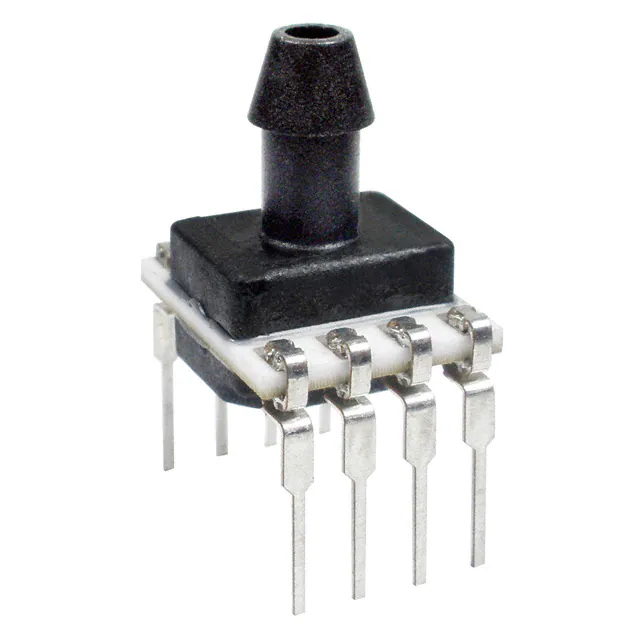

NSCDANN100PGUNVSENSOR 100PSIG 0.19" .086V 8DIP |
145 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 86 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
24PCFFH6GSENSOR 100PSIC M5 .225V |
18 |
|
Datasheet |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | Male - M5 | Threaded | - | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

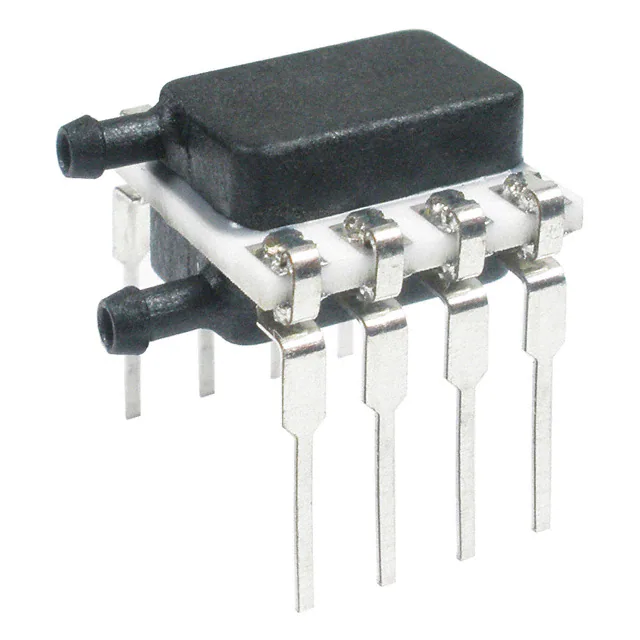

NSCDRRN005PDUNVSENSOR 5PSID 0.08" .15V 8DIP |
103 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
2513130810101SENSOR 0.15PSID 0.087" 15BIT |
245 |
|
Datasheet |
WSEN-PDUS | 8-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | - | Differential | ±0.15PSI (±1kPa) | I2C | 15 b | ±1% | 4.75V ~ 5.25V | Male - 0.087" (2.2mm) Tube, Dual | Barbless | - | SMD (SMT) Tab | 1.45PSI (10kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
|
CP301-SM06-RSENSOR 0.87PSID 0.08" 16BIT |
512 |
|
Datasheet |
CP | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential, Gauge | 0.04PSI ~ 0.36PSI (0.25kPa ~ 2.5kPa), 0.29PSI ~ 0.87PSI (2kPa ~ 6kPa) | I2C, SPI | 16 b | ±0.05% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Triple | Barbless | Temperature Compensated | SMD (SMT) Tab | 36.26PSI (250kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
82CV-100A-RSENSOR 100PSIA 0.1V |
2 |
|
Datasheet |
- | Cylinder | Bulk | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.1% | 10V ~ 14V | - | No Port | Temperature Compensated | Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
HSCDANN005PGSA5SENSOR 5PSIG 0.19" 12BIT 8DIP |
114 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Tube | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

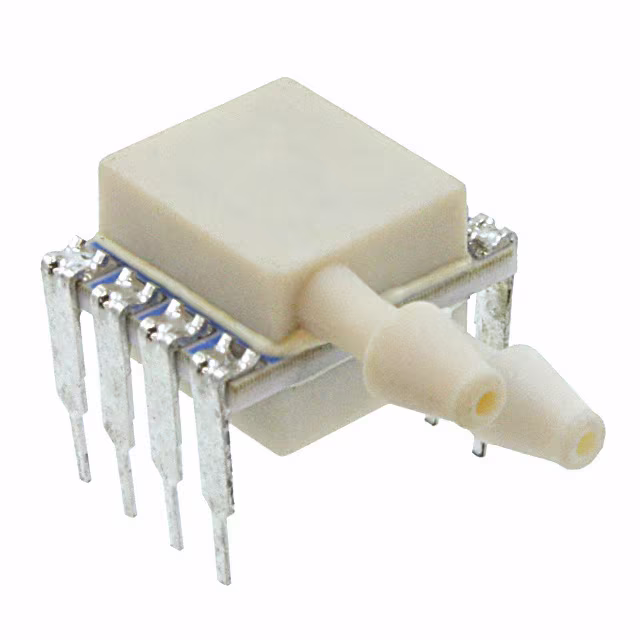

4525DO-DS5AI015DPSENSOR 15PSID 0.14" 14BIT |
0 |
|
Datasheet |
MS4525DO | 8-DIP Module | Tray | Active | - | Differential | 15PSI (103.42kPa) | I2C | 14 b | ±0.25% | 5V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
