Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPI-19A-701GHSENSOR 101.53PSIG 0.1V |
30 |
|
Datasheet |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 101.53PSI (700kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | - | - | No Port | Temperature Compensated | Flex Cable | 203.05PSI (1400kPa) | -40°C ~ 125°C | - | - | - | - |
|
82-030A-CSENSOR 30PSIA 0.1V |
101 |
|
Datasheet |
- | - | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
BPS6C-H00SENSOR 43.51PSIA MODULE |
30 |
|
Datasheet |
BPS | Module | Box | Active | - | Absolute | 7.25PSI ~ 43.51PSI (50kPa ~ 300kPa) | CAN Bus | - | ±0.580PSI (±4kPa) | 6V ~ 18V | - | No Port | - | Connector | 72.52PSI (500kPa) | -40°C ~ 105°C | - | - | - | Module |
|
HSCDRRN001ND2A5SENSOR 0.04PSID 0.08" 12BIT 8DIP |
183 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
86-500G-RSENSOR 500PSIG 0.1V |
32 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-015G-RSENSOR 15PSIG 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | - | - | Temperature Compensated | Cable with Connector | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19M-005G2SENSOR 5PSIG M12 14BIT |
47 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 5PSI (34.47kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - M12 x 1.0 | Threaded | Temperature Compensated | Wire Leads | 10PSI (68.95kPa) | -10°C ~ 80°C | - | - | - | - |
|
|
NPI-19A-300G2SENSOR 300PSIG 14BIT |
47 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 300PSI (2068.43kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19M-030A2SENSOR 30PSIA M12 14BIT |
43 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Absolute | 30PSI (206.84kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - M12 x 1.0 | Threaded | Temperature Compensated | Wire Leads | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | - | - |
|
HSCDANN100PGAA5SENSOR 100PSIG 0.19" 4.5V 8DIP |
178 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
NPI-15A-3K0SVSENSOR 3000PSIS 0.1V |
46 |
|
Datasheet |
NPI-15VC | Cylinder | Bulk | Active | Board Mount | Sealed Gauge | 3000PSI (20684.27kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.35% | 10V ~ 15V | - | No Port | Temperature Compensated | Flex Cable | 6000PSI (41368.54kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
4525-DS3A001DP1PSI DP PRESSURE SENSOR 10% TO 9 |
0 |
|
Datasheet |
MS4525 | 8-DIP (0.500", 12.70mm), Dual Ports, Same Side | Bulk | Active | - | Differential | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 3.3V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
|
76069-00000850-01SWITCH 90PSI SPST-NC 1/8"NPT |
46 |
|
Datasheet |
5000 | Cylinder, Threaded | Bulk | Active | - | Switch | 51PSI ~ 90PSI (351.63kPa ~ 620.53kPa) | SPST-NC | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Quick Connect - 0.250" (6.3mm) | 500PSI (3447.38kPa) | -40°C ~ 121°C | - | - | - | - |
|
FMA-500-T1-05W-GVSENSOR 0.18PSI 1/8"NPT 4.5V |
27 |
|
Datasheet |
FMA | Module | Bulk | Active | Board Mount | Vacuum | 0.18PSI (1.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2.5% | 4.75V ~ 5.25V | Female - 1/8" (3.18mm) NPT | Barbless | Amplified Output, Temperature Compensated | Connector | 0.36PSI (2.49kPa) | -40°C ~ 125°C | - | - | - | - |
|
ADP5110SENSOR 14.5PSI 0.12" 4.5V |
159 |
|
Datasheet |
PS-A | 6-DIP Module | Bulk | Last Time Buy | Board Mount | Vacuum | -14.5PSI (-100kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | -29.01PSI (-200kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|
|
76053-B00000370-15SWITCH 50PSI SPST-NO 1/8"NPT |
50 |
|
Datasheet |
5000 | Cylinder, Threaded | Bulk | Active | - | Switch | 25PSI ~ 50PSI (172.37kPa ~ 344.74kPa) | SPST-NO | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 500PSI (3447.38kPa) | -40°C ~ 121°C | - | - | - | - |
|
|
87641-B00000020-01SENSOR 2PSI |
50 |
|
- |
- | - | Bulk | Active | - | - | 2PSI (13.79kPa) | - | - | - | - | - | - | - | Screw Terminal | - | - | - | - | - | - |
|
|
NPI-19A-701AHSENSOR 101.53PSIA 0.1V |
28 |
|
Datasheet |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Absolute | 101.53PSI (700kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | - | - | No Port | Temperature Compensated | Flex Cable | 203.05PSI (1400kPa) | -40°C ~ 125°C | - | - | - | - |
|
SSCDRRN002ND2A3SENSOR 0.07PSID 0.08" 12BIT 8DIP |
74 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.07PSI (±0.5kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.28kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

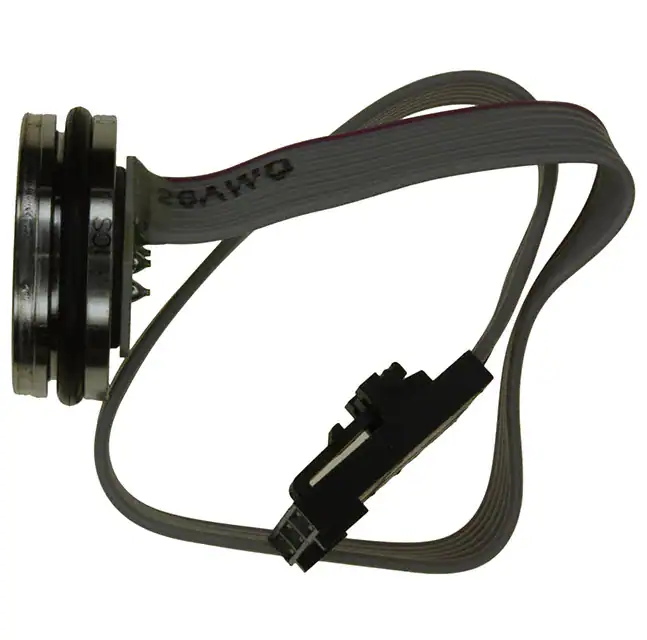

82-015G-CSENSOR 15PSIG 0.1V |
0 |
|
Datasheet |
- | - | Tube | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
