Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPI-19M-200A2SENSOR 200PSIA M12 14BIT |
28 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Absolute | 200PSI (1378.95kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - M12 x 1.0 | Threaded | Temperature Compensated | Wire Leads | 400PSI (2757.9kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-300G-RSENSOR 300PSIG 0.1V |
65 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|

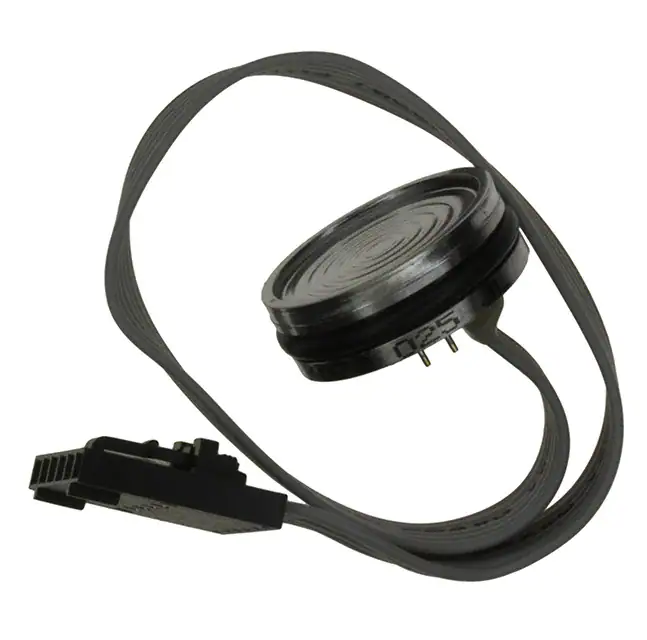

82-100G-CSENSOR 100PSIG 0.1V |
42 |
|
Datasheet |
- | - | Tube | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|

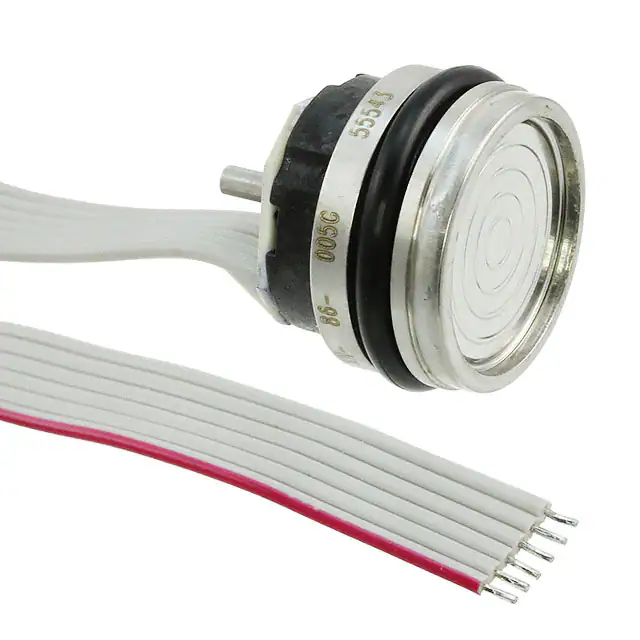

86-005G-RTSENSOR 5PSIG 0.1V |
0 |
|
Datasheet |
- | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | - | No Port | Temperature Compensated | Cable with Connector | 15PSI (103.42kPa) | -20°C ~ 70°C | - | - | - | - |
|
|
NPI-19M-002G2SENSOR 2.5PSIG M12 14BIT |
39 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 2.5PSI (17.24kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - M12 x 1.0 | Threaded | Temperature Compensated | Wire Leads | 5PSI (34.47kPa) | -10°C ~ 80°C | - | - | - | - |
|
P993-5BSENSOR 0.18PSID 4V |
0 |
|
Datasheet |
- | 3-SIP Module | Bulk | Active | Board Mount | Differential | -0.18PSI ~ 0.18PSI (-1.25kPa ~ 1.25kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | Barbed | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
|
M3256-00000E-020BGSENSOR 290.08PSIG 1/4" .02A |
36 |
|
Datasheet |
M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 290.08PSI (2000kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) BSPT | Threaded | Amplified Output, Temperature Compensated | Connector | 580PSI (4000kPa) | -40°C ~ 125°C | - | - | - | - |
|
P992-5B-ASENSOR 0.18PSI 4V |
1 |
|
Datasheet |
- | 4-DIP Module | Bulk | Active | Board Mount | Differential | -0.18PSI ~ 0.18PSI (-1.25kPa ~ 1.25kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
HSCDRRN004ND2A5SENSOR 0.15PSID 0.08" 12BIT 8DIP |
147 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.15PSI (±1kPa) | I2C | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.84PSI (±74.75kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
.jpg)
|
NPI-12-101GH (5V)SENSOR 15PSIG |
1,213 |
|
Datasheet |
NPI-12 | 4-SIP Module | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | - | ±4% | 5V | - | No Port | - | Cable | 50PSI (344.74kPa) | 10°C ~ 40°C | - | - | Through Hole | - |
|
|
M325M-00000P-250PGSENSOR 250PSIG 7/16" .02A |
40 |
|
Datasheet |
M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 250PSI (1723.69kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Female - 7/16" (11.11mm) UNF | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 500PSI (3447.38kPa) | -40°C ~ 125°C | - | - | - | - |
|
M325M-00000P-01KPGSENSOR 1000PSIG 7/16" .02A |
31 |
|
Datasheet |
M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 1000PSI (6894.76kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Female - 7/16" (11.11mm) UNF | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 2000PSI (13789.51kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
M326M-00000B-007BGSENSOR 101.53PSIG 1/4" 5V |
30 |
|
Datasheet |
- | - | Box | Active | - | Gauge | 101.53PSI (700kPa) | Analog Voltage | 0 V ~ 5 V | ±0.25% | 8V ~ 30V | Male - 1/4" (6.35mm) G | Threaded | Amplified Output, Temperature Compensated | - | 203.05PSI (1400kPa) | -40°C ~ 125°C | - | - | - | - |
|
P992-2B-CSENSOR 0.07PSI 4V |
0 |
|
Datasheet |
- | 2-SIP Module | Bulk | Active | Board Mount | Differential | -0.07PSI ~ 0.07PSI (-0.50kPa ~ 0.50kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
|
HSCDRRN010MDAA3SENSOR 0.15PSID 0.08" 2.97V 8DIP |
71 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.15PSI (±1kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.88PSI (±75kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCMRRN001ND2A3SENSOR 0.04PSID 0.08" 12BIT 8SMD |
120 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
85-015G-FCSENSOR 15PSIG 0.1V |
47 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
P993-1BSENSOR 0.04PSID 4V |
62 |
|
Datasheet |
- | 3-SIP Module | Bulk | Active | Board Mount | Differential | -0.04PSI ~ 0.04PSI (-0.25kPa ~ 0.25kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | Barbed | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
P992-10-ASENSOR 0.36PSI 4V |
240 |
|
Datasheet |
- | 4-DIP Module | Bulk | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
|
P992-2-ASENSOR 0.07PSI 4V |
64 |
|
Datasheet |
- | 4-DIP Module | Bulk | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
