Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

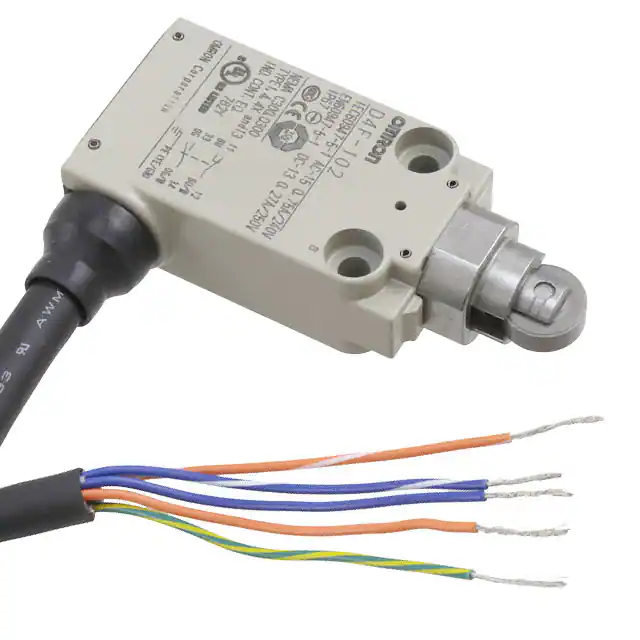

D4F-102-1RSWITCH SNAP ACTION DPST 15A 120V |
0 |
|
Datasheet |
D4F | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1224gf | 153gf | 1.156" (29.4mm) | 0.047" (1.2mm) | - | 0.125" (3.2mm) | -30°C ~ 70°C |
|
13SX50-H58SUBMINIATURE BASIC SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSXYNB3KSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Obsolete | SPDT (DB/DM) | On-On | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 65° | 30° | 20° | -29°C ~ 121°C |
|
|
D4C-3352SWITCH LIMIT SPDT 4A 30V |
0 |
|
Datasheet |
D4C | Bulk | Obsolete | SPDT | On-Mom | 4A (DC) | - | 30 V | - | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -10°C ~ 70°C |
|
|
9007C52RSWITCH LIMIT DPST 1.5A 600V |
0 |
|
Datasheet |
Square D 9007C | Box | Active | DPST-NO/NC | On-Off, Off-On | 1.5A (AC), 550mA (DC) | 600 V | 600 V | Side Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007MS09S1300SWITCH LIMIT SPDT 6A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Adjustable Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
|
51.452RFOOT SWITCHFL1U1RUSTDCLRGD 1NO/1 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1LS3SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller, Front Mounted | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
|
61CX11-D01SWITCH LIMIT HAZARDOUS LOCATION |
1 |
|
Datasheet |
CX | Bulk | Obsolete | SPDT | On-On | 15A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
GLAA01E7BSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 10gfm | - | 18° | 18° | 8° | - | -25°C ~ 85°C |
|

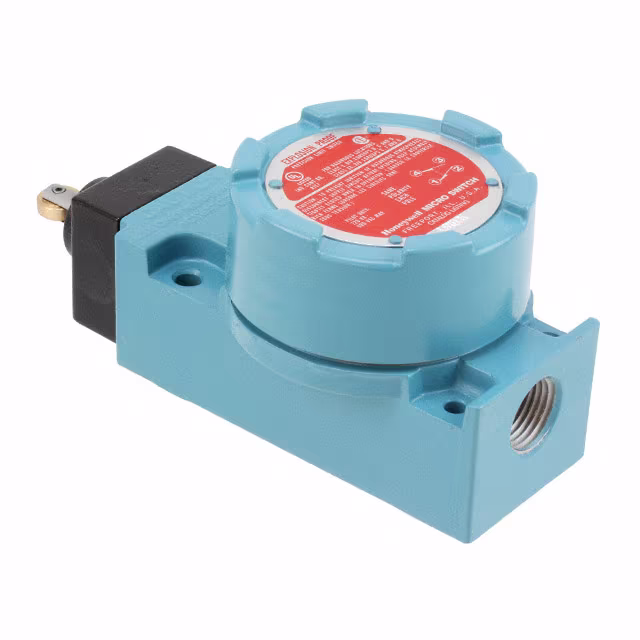

LSXD3KSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Screw Terminal | - | Explosion Proof | 1814gf | - | 2.700" (68.6mm) | 0.070" (1.78mm) | 0.015" (0.38mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
51.157RFOOT SWITCHFS1SU1SUSTDCLRGD 1NO/ |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCKJ1161SWITCH LIMIT SPDT 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | SPDT | On-On | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

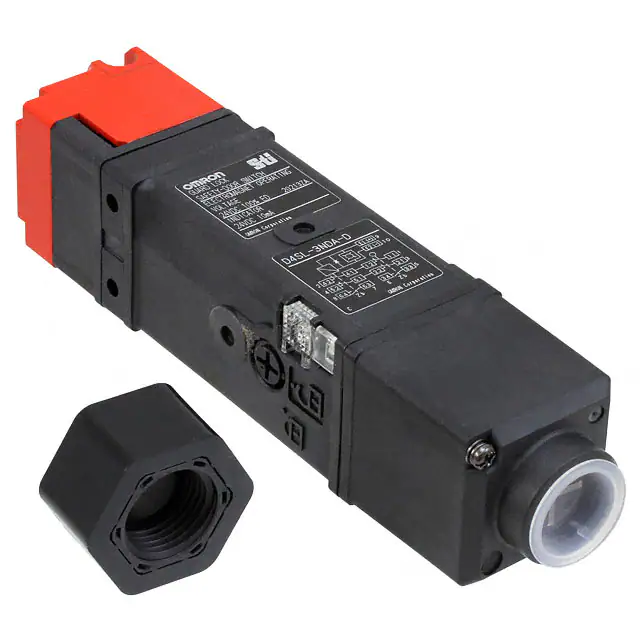

D4SL-3NDA-DSWITCH SNAP ACTION |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LSM4NSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 18° | 10° | 57° | -1°C ~ 121°C |
|
|
LSYAB1A-1BSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Plug In | - | Steel Roller, Front Mounted | 46gfm | - | - | 15° | 5° | 60° | -40°C ~ 121°C |
|
1LS91SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 51gfm | 8.640gfm | 5° | 5° | - | 30° | -29°C ~ 71°C |
|
202LS1SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Round (Pin Plunger) | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | Steel Plunger | 3175gf | 907gf | 1.330" (33.8mm) | 0.065" (1.65mm) | 0.020" (0.5mm) | 0.250" (6.35mm) | -29°C ~ 71°C |
|
|
1LS9-LSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 125 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 51gfm | 8.640gfm | 5° | 5° | - | 30° | -29°C ~ 71°C |
|
|
LS3A2BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
