Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WLCL-LDK43-NSWITCH LIMIT ADJ ROD LEVER |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLG2-LD-M1TGJSWITCH LIMIT SPDT 5A 125V |
0 |
|
Datasheet |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1000gf | 100gf | - | 10° | 7° | 65° | -10°C ~ 80°C |
|
8LS152SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 141gf | - | 1.125" (28.6mm) | 1.125" (28.6mm) | - | - | -29°C ~ 71°C |
|
|
LSR4LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 19gfm | - | - | 15° | 7° | 60° | -1°C ~ 121°C |
|
|
9007C54GY1848Y203SWITCH LIMIT 10A 600V |
0 |
|
Datasheet |
C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -18°C ~ 85°C |
|
LSXA4LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
3SE03AT3SWITCH LIMIT ROLLER |
0 |
|
Datasheet |
- | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Roller Plunger | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
51.163RFOOT SWITCHFS1SU2USTDCLRGD 2NO/2 |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
50075432-00SWITCH SNAP ACTION SHIFTERS |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCSM3710L2SWITCH SAFETY LMT 3PST 1.5A 240V |
0 |
|
Datasheet |
XCSM | Box | Active | 3PST-2NC/1NO | On-Off, Off-On | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCSM3716L1SWITCH SAFETY LMT 3PST 1.5A 240V |
0 |
|
- |
XCSM | Box | Active | 3PST-2NC/1NO | On-Off, Off-On | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
WLCA32-42-NSWITCH LIMIT FORK LEVR LOCK |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

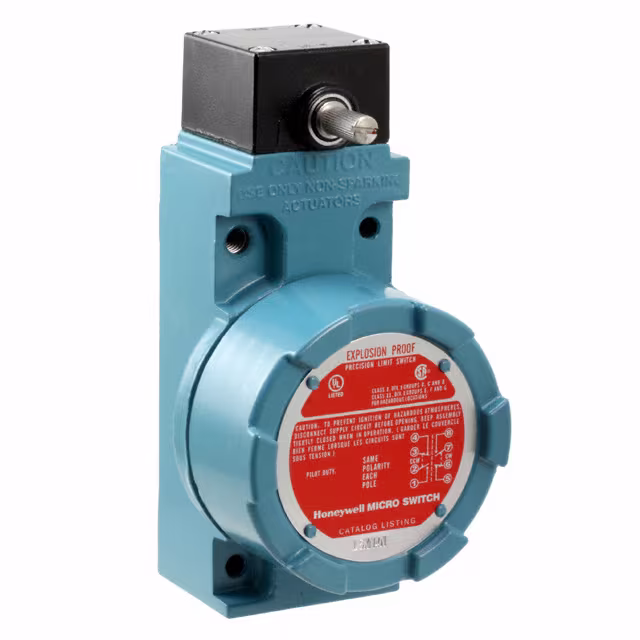

LSXM4NSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Obsolete | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 18° | 10° | 57° | -1°C ~ 121°C |
|
|
WLG2-LDFS-DTGJS-NSWITCH LIMIT RLR LVR |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LSA1ACSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 6' | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 60°C |
|
DT-2R-B6SWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
Datasheet |
DT | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 340 ~ 567gf | 57gf | 0.615" (15.6mm) | 0.090" (2.3mm) | 0.060" (1.5mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
LSA1AC-2CLIMIT SWITCH |
0 |
|
- |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Rotary, Adjustable Roller | Chassis Mount | Plug In | IP65/IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
1XE122SWITCH SNAP ACTION SPDT 7A 28V |
0 |
|
Datasheet |
XE | Bulk | Active | SPDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 105°C |
|
|
GSAA41A1BSWITCH SNAP ACT 4PST-NC 0.1A 50V |
0 |
|
Datasheet |
GSA | Bulk | Active | 4PST-NC | On-Mom | 100mA (AC/DC) | 50 V | 50 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 33gf | - | - | - | 12° | - | -25°C ~ 80°C |
|
|
9007AW12M16SWITCH LIMIT 15A 600V |
0 |
|
Datasheet |
AW | Box | Active | - | - | 15A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -51°C ~ 85°C |
