Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

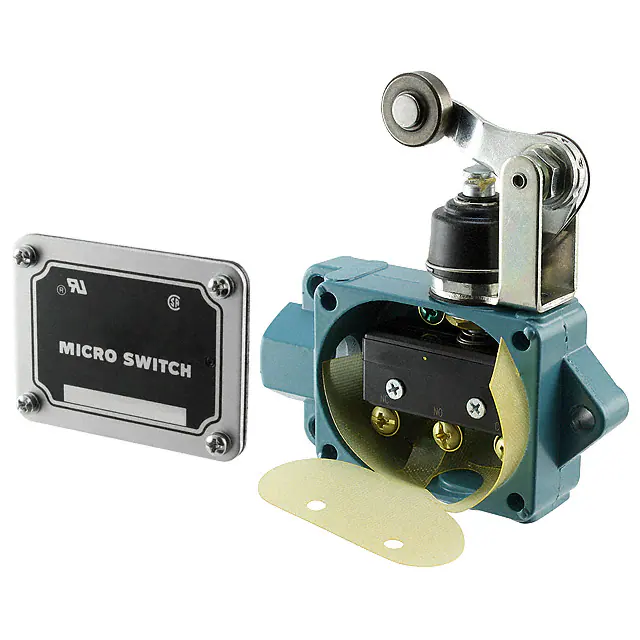

BAF1-2RN2-RHSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BAF1 | Bulk | Not For New Designs | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | Actuator Mounted Right Side | 907gf | 227gf | - | 0.219" (5.6mm) | 0.020" (0.5mm) | 0.250" (6.35mm) | -32°C ~ 71°C |
|
21EN321-R1SWITCH ENVIRONM SEALED LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4CC-4043SWITCH SNAP ACTION SPDT 1A 30V |
0 |
|
Datasheet |
D4CC | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Cross Roller Plunger | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | Status Indicator | 1200gf | 450gf | 1.449" (36.8mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
LSYJB3K-7MSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Wire | Chassis Mount | Screw Terminal | - | - | 141gf | - | - | 4.000" (102mm) | - | - | -40°C ~ 121°C |
|
|
XCKJ110511H7SWITCH LIMIT SPDT 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | SPDT | On-On | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKVR54D2H29SWITCH LIMIT 4PST-NC 3A 240V |
0 |
|
Datasheet |
OsiSense XC | Box | Active | 4PST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
DTE6-2RN80SWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
Datasheet |
E6 | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | Actuator Seal Boot | 567 ~ 1361gf | 170gf | 2.345" (59.6mm) | 0.110" (2.8mm) | 0.060" (1.5mm) | 0.125" (3.2mm) | -32°C ~ 71°C |
|
|
BZ-RMX4SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-On | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | Reset Plunger on Bottom | - | - | 0.750" (19.1mm) | - | - | 0.062" (1.6mm) | -55°C ~ 85°C |
|
|
LSXA3ESWITCH SNAP ACT SPDT 50MA 250V |
0 |
|
Datasheet |
LSX | Bulk | Discontinued at Digi-Key | SPDT (DB/DM) | On-Mom | 50mA (AC/DC) | 250 V | 60 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
9007C54CM11SWITCH LIMIT SPDT 1.2A 600V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
LSYAC3KY-FPSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 12' | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 105°C |
|
|
LSXK3K-8ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Discontinued at Digi-Key | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | - | Explosion Proof | 141gf | - | - | 2.000" (50.8mm) | - | - | -12°C ~ 93°C |
|
|
3SE03BW1SWITCH LIMIT WOBBLE HEAD |
0 |
|
- |
- | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
14XE1SWITCH SNAP ACTION SPDT 7A 28V |
0 |
|
Datasheet |
XE | Bulk | Active | SPDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 255gf | 57gf | 0.429" (10.9mm) | 0.030" (0.8mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 105°C |
|
|
51.410RFOOT SWITCHFL1U1DU1STDCLR 2X1NO/ |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCMD41F2L5EXSWITCH LIMIT 4PST 0.75A 240V |
0 |
|
Datasheet |
XC | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 750mA (AC), 100mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -20°C ~ 60°C |
|
|
9007AW19SWITCH LIMIT DPST 3A 120V |
0 |
|
Datasheet |
9007 | Box | Active | DPST-NC (DB) | On-Mom | 3A (AC), 1A (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -54°C ~ 85°C |
|
|
44505-2510SWITCH SNAP ACTION METAL 1NC/1NO |
0 |
|
- |
SL-STI | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-2JDG-DNSWITCH SNAP ACTION |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-2KDG-DNSWITCH SNAP ACTION |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
