Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WLRG2-LDS-DTGJS03SWITCH LIMIT SPDT 5A 125V |
0 |
|
Datasheet |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Cable with Connector | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -10°C ~ 80°C |
|
|
ADT3723RSWITCH ROLLER LEVER ASSMBLY |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3SF12341LC051BA1SWITCH LIMIT RND PLUNGER 2NC |
0 |
|
Datasheet |
SIRIUS | Box | Active | DPST-NC | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Connector | IP65 - Dust Tight, Water Resistant | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
3SE51141CD021AF3SWITCH LIMIT DPST 3A 24V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Roller Plunger | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
|
51.104RFOOT SWITCHFS1U1RSSTDCLR 1NO/1NC |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1LS22SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
D4F-220-1DSWITCH SNAP ACT DPST-NC 15A 120V |
0 |
|
Datasheet |
D4F | Bulk | Active | DPST-NC | On-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 510gf | 51gf | - | 12° | - | 40° | -30°C ~ 70°C |
|
|
D4F-402-5DSWITCH SNAP ACT 4PST-NC 15A 120V |
0 |
|
Datasheet |
D4F | Bulk | Active | 4PST-NC | On-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 1224gf | 153gf | 1.156" (29.4mm) | 0.047" (1.2mm) | - | 0.125" (3.2mm) | -30°C ~ 70°C |
|
|
616.1100.251FOOT SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Foot Switch | - | Screw Terminal | IP68 - Dust Tight, Waterproof | - | - | - | - | - | - | - | - |
|
|
XCLJ767H29SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKD2149M12SWITCH LIMIT DPST 3A 50V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 50 V | 50 V | Side Rotary, Adjustable Roller | Chassis Mount | Connector | - | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCLJ167SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
LSA1FSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | - | - | - | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
LSZ7D6BSWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1LS56SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 11gfm | 2.070gf | 5° | 5° | - | 30° | -29°C ~ 71°C |
|

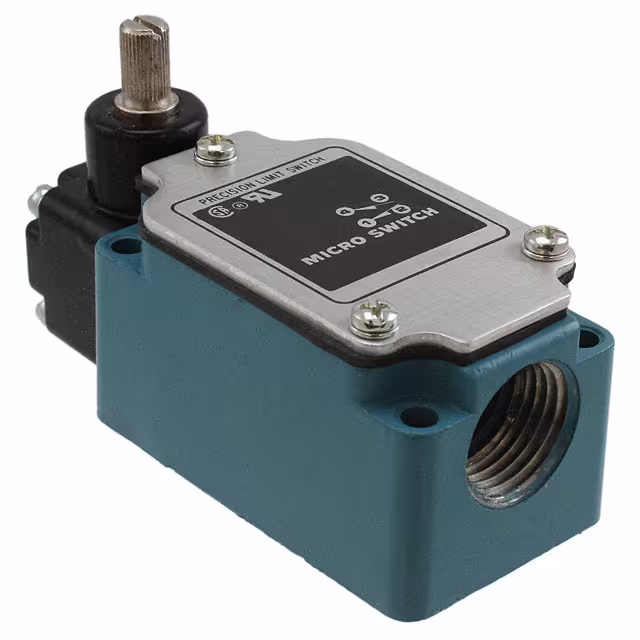

1LS56-LSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 125 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 11gfm | 2.070gf | 5° | 5° | - | 30° | -29°C ~ 71°C |
|

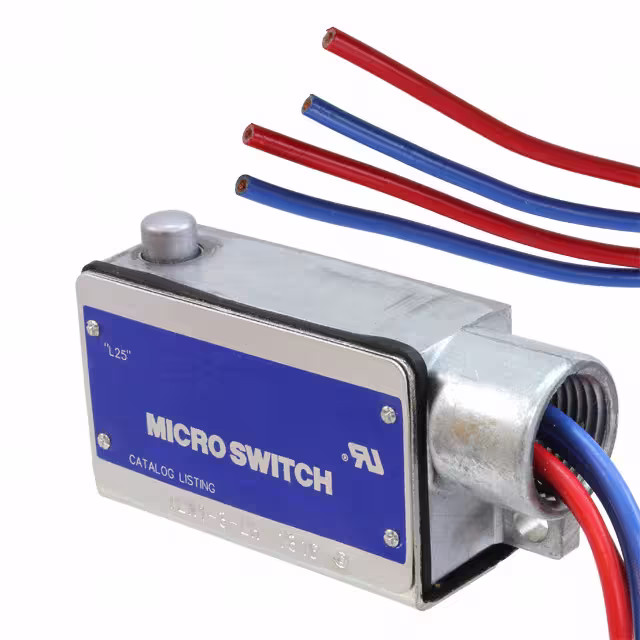

1LN1-3-LHSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
LN | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | Actuator Mounted Left Side | 2722gf | 454gf | 1.615" (41.0mm) | 0.063" (1.6mm) | 0.030" (0.76mm) | 0.172" (4.4mm) | -32°C ~ 55°C |
|
|
L100WS2PF3SWITCH LIMIT 10A 600V |
0 |
|
Datasheet |
Square D | Bulk | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLF2CA12SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -10°C ~ 80°C |
|
|
WLF2CA2SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -10°C ~ 80°C |
