Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4SL-2LDG-DNSWITCH SNAP ACTION |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-2MDG-DNSWITCH SNAP ACTION |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-4JDG-DNSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-4KDG-DNSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-4LDG-DNSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-4MDG-DNSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCMD41G1L5EXSWITCH SNAP ACT 4PST 0.75A 240V |
0 |
|
Datasheet |
XC | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 750mA (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -20°C ~ 60°C |
|
|
LSA7L-4NSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|

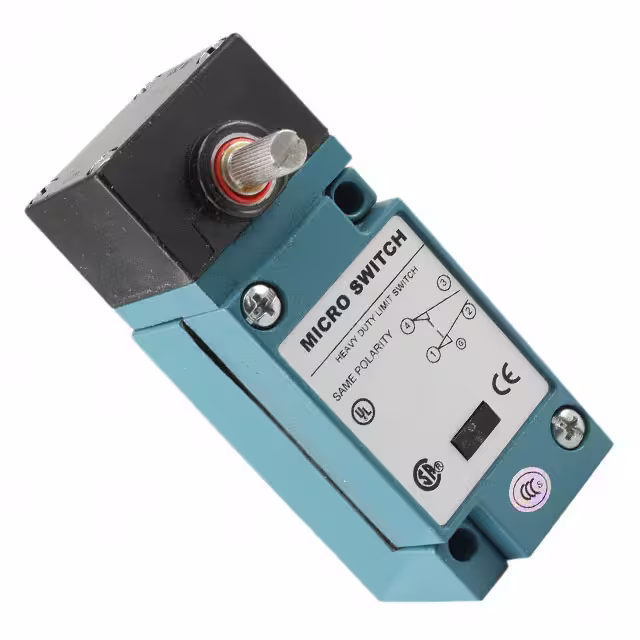

LSH5ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | Status Indicator | 19gfm | - | - | 9° | 3° | 66° | -1°C ~ 121°C |
|
6LS2-LSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-On | 10A (AC), 800mA (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 34gfm | - | - | 55° | - | - | -29°C ~ 71°C |
|
|
9007C54B2Y1905SWITCH LIMIT 10A 600V |
0 |
|
Datasheet |
C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
D4A-2507-V-NSWITCH SNAP ACTION DPDT 5A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | DPDT (DB/DM) | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Side Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 2000gf | 500gf | 1.732" (44.0mm) | 0.094" (2.4mm) | 0.040" (1.0mm) | 0.201" (5.1mm) | -20°C ~ 100°C |
|
D4A-2510-NSWITCH SNAP ACTION DPDT 5A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | DPDT (DB/DM) | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1800gf | 500gf | 2.205" (56.0mm) | 0.063" (1.6mm) | 0.040" (1.0mm) | 0.201" (5.1mm) | -20°C ~ 100°C |
|
|
D4A-3301NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 40gfm | 5.103gfm | - | 15° | 5° | 70° | -10°C ~ 80°C |
|
|
D4A-3302NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 40gfm | 5.103gfm | - | 7° | 4° | 75° | -10°C ~ 80°C |
|
|
D4A-3305NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | SPDT (DB/DM) | On-On | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 40gfm | - | - | 65° | 35° | 20° | -10°C ~ 80°C |
|
|
D4A-4505NSWITCH SNAP ACTION DPDT 5A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | DPDT (DB/DM) | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 40gfm | - | - | 65° | 35° | 20° | -40°C ~ 100°C |
|
|
D4A-3309NSWITCH LIMIT TOP PLUNGER |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007AEQ4105LIMIT SWITCH 600V 10A LOW TEMP |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSYJB3K-7ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Rod | Chassis Mount | Screw Terminal | - | - | 283gf | - | - | 1.000" (25.4mm) | - | - | -40°C ~ 121°C |
