Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4A-3E15NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 150gf | - | - | 15° | - | - | -10°C ~ 80°C |
|
|
D4A-3311NSWITCH LIMIT W/ TOP PLNGR |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLCL-LDK13-NSWITCH LIMIT ADJUSTABLE ROD LVR |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LSF1ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Roller Plunger | Chassis Mount | Plug In | - | - | 2720gf | - | - | 0.100" (2.5mm) | 0.025" (0.6mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
201LS503SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
- |
LS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary, Adjustable Roller | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | Nylon Roller, Front Mounted | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|

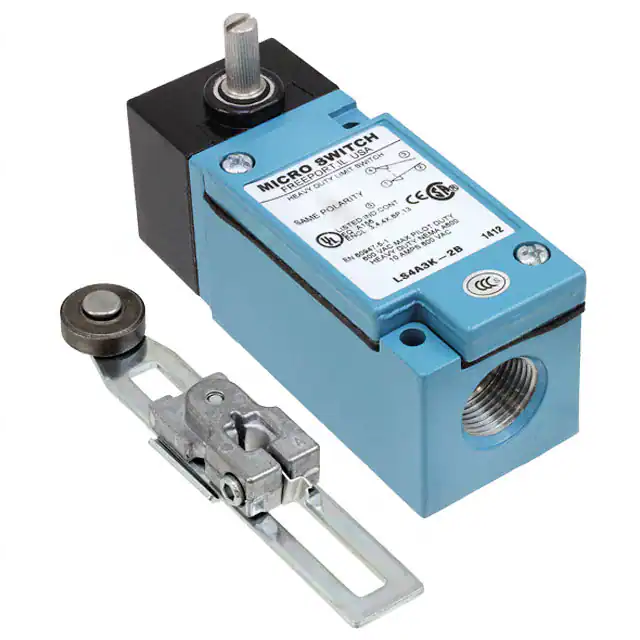

LS4A3K-2BSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | - | Steel Roller, Back Mounted | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
3SE51620CB01SWITCH LIMIT 4PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 3059gf | - | - | - | - | - | -25°C ~ 85°C |
|
208LS152SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Coil | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 141gf | - | 1.125" (28.6mm) | 1.125" (28.6mm) | - | - | -29°C ~ 71°C |
|
|
T4011-022F1NSWITCH SNAP ACTION 2NC/2NO |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007C62HSWITCH LIMIT 4PST 1.5A 600V |
0 |
|
Datasheet |
Square D 9007C | Box | Active | 4PST-2NO/2NC | On-Off, Off-On | 1.5A (AC), 550mA (DC) | 600 V | 600 V | Side Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|

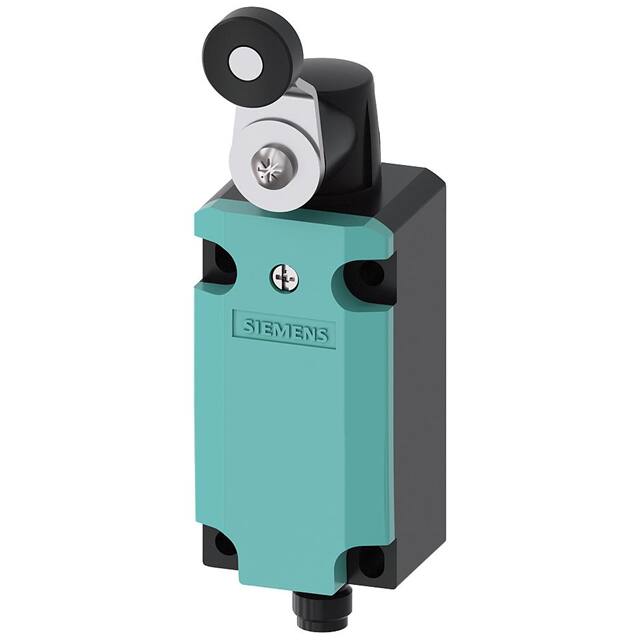

3SE51141CH011AF3SWITCH LIMIT DPST 3A 24V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Side Rotary, Roller | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 60°C |
|
|
XCKML110SWITCH LIMIT 10A 240V |
0 |
|
Datasheet |
XC | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
LSA9ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | Status Indicator | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 93°C |
|
|
LSH3KSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 19gfm | - | - | 9° | 3° | 66° | -1°C ~ 121°C |
|
|
V3L-1088SWITCH SIM ROLL SPDT 10A SOLDER |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3SE51620DA001CA0SWITCH LIMIT 6PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 6PST-4NC/2NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 3059gf | - | - | - | - | - | -25°C ~ 85°C |
|
XCKVR24SR1H29SWITCH LIMIT 4PST 3A 240V |
0 |
|
Datasheet |
XCKVR | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 3A (AC), 550mA (DC) | 240 V | 125 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKVR44D1H29SWITCH LIMIT 4PST 3A 240V |
0 |
|
Datasheet |
OsiSense XC | Box | Active | 4PST-2NO/2NC | On-Off, Off-On | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
80210-26SWITCH OPERATOR CNTRLS SHIFTERS |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
89950-17SWITCH OPERATOR CNTRLS SHIFTERS |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
