Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9007ML02S0400SWITCH LIMIT SPDT 6A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
|
D4A-2504-NSWITCH SNAP ACTION DPDT 5A 125V |
0 |
|
Datasheet |
D4A | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 20gfm | - | - | 7° | 5° | 75° | -20°C ~ 100°C |
|
|
LSE3KSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Plunger | Chassis Mount | Screw Terminal | - | - | 2720gf | - | - | 0.100" (2.5mm) | 0.025" (0.6mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
DTE6-2RQ81SWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
Datasheet |
E6 | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Cross Roller Plunger | Chassis Mount | Screw Terminal | IP40 | - | 680 ~ 1361gf | 227gf | 1.953" (49.6mm) | 0.140" (3.6mm) | 0.060" (1.5mm) | 0.125" (3.2mm) | -32°C ~ 71°C |
|
|
614.1103.494SWITCH LIMIT DPST 6A 240V |
0 |
|
Datasheet |
D | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 6A (AC) | 240 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -30°C ~ 80°C |
|
|
9007C54JM11SWITCH LIMIT SPDT 1.2A 600V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Spring, Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
BZE6-RN18X2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
E6 | Bulk | Obsolete | SPDT | On-On | 15A (AC), 500mA (DC) | 125 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Actuator Seal Boot, Reset Plunger | 198gf | - | 15° | - | - | - | -32°C ~ 71°C |
|
|
606.2110.013TWOPEDAL FOOT SWITCH F2-U1Z/U1Z |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
606.2330.021TWOPEDAL FOOT SWITCH F2-SU1Z/SU1 |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLAB22CSWITCH SNAP ACTION DPDT 0.1A 50V |
0 |
|
Datasheet |
GLS | Bulk | Active | DPDT | On-Mom | 100mA (AC/DC) | 50 V | 50 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 1.890" (48.0mm) | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.180" (4.6mm) | -25°C ~ 85°C |
|
|
44506-1030SWITCH SNAP ACTION 3NC/1NO NPT |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.159RFOOT SWITCHFS1U2USTDCLRGD 2NO/2N |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007AEQ4103LIMIT SWITCH 600V 10A LOW TEMP |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007MS02S0082SWITCH LIMIT SPDT 6A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
|
D4CC-3042SWITCH SNAP ACTION SPDT 1A 30V |
0 |
|
Datasheet |
D4CC | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Roller Plunger | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 450gf | 1.449" (36.8mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4A-1310NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1800gf | 500gf | 2.205" (56.0mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.201" (5.1mm) | -10°C ~ 80°C |
|
|
D4A-1E11NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4A | Bulk | Last Time Buy | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Adjustable Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1800gf | 500gf | 2.205" (56.0mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.201" (5.1mm) | -10°C ~ 80°C |
|
|
ZC-Q2255-MR VCT 1MSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1200gf | 500gf | 1.866" (47.4mm) | 0.060" (1.5mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
ZC-Q55-MR VCT 5MSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 1200gf | 500gf | 1.504" (38.2mm) | 0.060" (1.5mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|

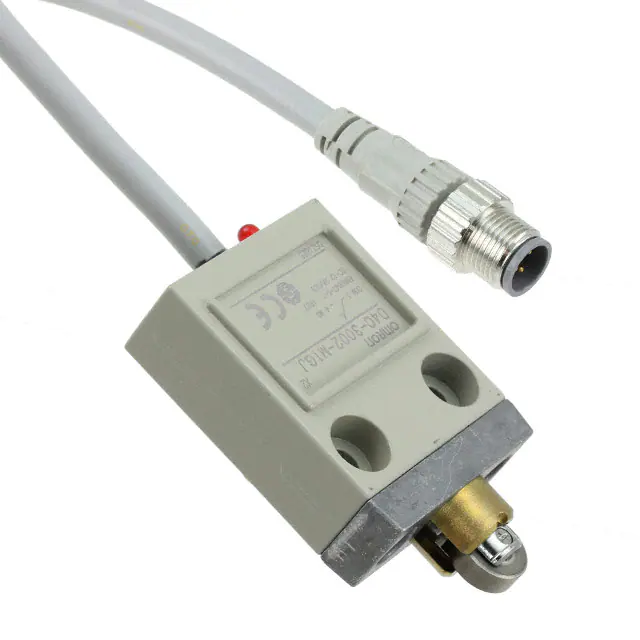

D4C-3002-M1GJ 0.5MSWITCH SNAP ACTION SPDT 1A 30V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Roller Plunger | Chassis Mount | Cable with Connector | IP67 - Dust Tight, Waterproof | Cable Length 0.5m, Status Indicator | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
