Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSQL7M122SWITCH LEVER FOR ROTARY |
0 |
|
Datasheet |
LSQ | Bulk | Active | SPDT (DB/DM) | On-On | - | - | - | Side Rotary - No Lever | Chassis Mount | Connector | - | - | - | - | - | - | - | - | -12°C ~ 121°C |
|
LSK1A-8CSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Coil | Chassis Mount | Plug In | - | - | 198gf | - | - | 2.000" (50.8mm) | - | - | -12°C ~ 93°C |
|
LSK3K-8CSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Coil | Chassis Mount | Screw Terminal | - | - | 198gf | - | - | 2.000" (50.8mm) | - | - | -12°C ~ 93°C |
|
LSXA3K-1ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Nylon Roller, Front Mounted | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
D4A-2502-NSWITCH SNAP ACTION DPDT 5A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | DPDT (DB/DM) | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 40gfm | 5.103gfm | - | 7° | 5° | 75° | -20°C ~ 100°C |
|
|
D4A-2512-NSWITCH SNAP ACTION DPDT 5A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | DPDT (DB/DM) | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Spring, Wire | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 100gf | - | - | 15° | - | - | -20°C ~ 100°C |
|
|
D4C-1720-CSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 580gf | 150gf | - | 25° | 3° | 40° | -10°C ~ 70°C |
|
|
ZC-N2255-ML VCT 1MSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 700gf | 170gf | 1.866" (47.4mm) | 0.060" (1.5mm) | 0.008" (0.2mm) | 0.098" (2.5mm) | -10°C ~ 80°C |
|
|
ZC-N2255-MR VCT 3MSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 700gf | 170gf | 1.866" (47.4mm) | 0.060" (1.5mm) | 0.008" (0.2mm) | 0.098" (2.5mm) | -10°C ~ 80°C |
|

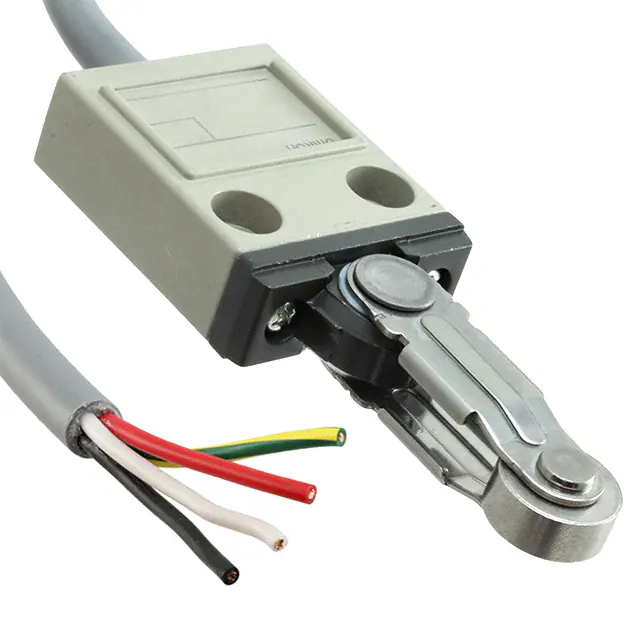

D4C-3260SWITCH SNAP ACTION SPDT 4A 30V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 4A (DC) | - | 30 V | Lever, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m, Status Indicator | 680gf | 150gf | - | 10° | 3° | 50° | -10°C ~ 70°C |
|
D4C-1661-F3SWITCH LIMIT SPDT 5A 250V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | - | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -10°C ~ 70°C |
|
|
D4C-1229-PSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Side Rotary, Adjustable Rod | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m | 580gf | 150gf | - | 25° | 3° | 40° | -10°C ~ 70°C |
|
|
LSXYLB4MSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Sequence Action | 46gfm | - | - | 15° | 5° | 48° | -40°C ~ 121°C |
|
|
51.110RFOOT SWITCHFS1U1DU1STDCLR 2X1NO/ |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3SE51620DA00SWITCH LIMIT 6PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 6PST-4NC/2NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 3059gf | - | - | - | - | - | -25°C ~ 85°C |
|
|
3SE51620BA001CA0SWITCH LIMIT 4PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 3059gf | - | - | - | - | - | -25°C ~ 85°C |
|
MT-4RV2-A28SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
MT | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 78gf | 7.138gf | 1.188" (30.2mm) | 0.351" (8.9mm) | 0.065" (1.7mm) | 0.031" (0.79mm) | -55°C ~ 85°C |
|
|
GLFA24A2ASWITCH SNAP ACTION DPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller, Status Indicator | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
|
|
51.407RFOOT SWITCHFL1SU1SSTDCLR 1NO/1NC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
618.1100.153SWITCH LIMIT PLASTIC BODY |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
