Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

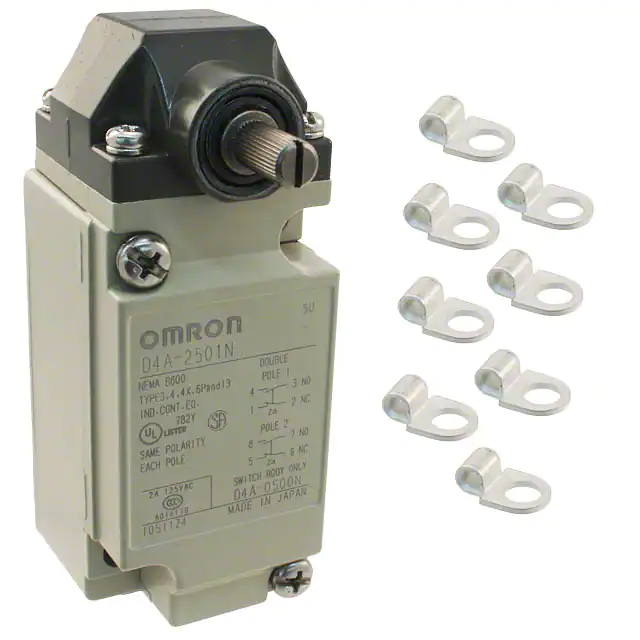

D4A-4501NSWITCH SNAP ACTION DPDT 5A 125V |
48 |
|
Datasheet |
D4A | Bulk | Active | DPDT (DB/DM) | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 40gfm | 5.103gfm | - | 15° | 7° | 70° | -40°C ~ 100°C |
|
D4F-320-5DSWITCH SNAP ACTION 4PST 15A 120V |
95 |
|
Datasheet |
D4F | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 510gf | 51gf | - | 12° | - | 40° | -30°C ~ 70°C |
|
ESE-18R11ASWITCH DETECTOR SPST-NO 0.01A 5V |
3,693 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|

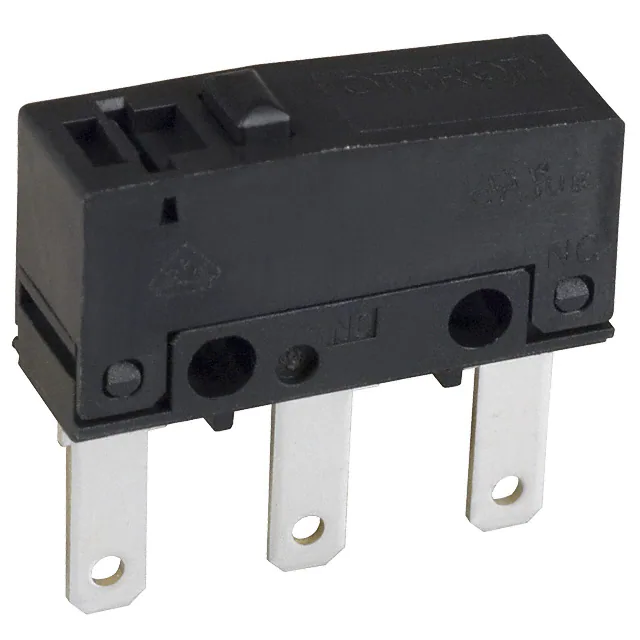

SS-01GPTSWITCH SNAP ACT SPDT 0.1A 125V |
1,047 |
|
Datasheet |
SS-P | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 153gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
ESE-11MH3SWITCH DETECTOR SPST-NO 0.01A 5V |
10,401 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount, Right Angle | Gull Wing | - | - | 35gf | - | 0.146" (3.7mm) | - | - | - | -10°C ~ 70°C |
|
ESE-31L15TSWITCH DETECTOR SPST-NO 0.01A 5V |
1,182 |
|
Datasheet |
ESE31 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | 20 V | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 40gf | - | 0.091" (2.3mm) | - | - | - | -10°C ~ 70°C |
|
ESE-13H05ASWITCH DETECTOR SPST-NO 0.01A 5V |
4,495 |
|
Datasheet |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-58L11ASWITCH DETECTOR SPST-NO 0.01A 5V |
4,764 |
|
Datasheet |
ESE58 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 30gf | - | 0.069" (1.75mm) | - | - | - | -10°C ~ 60°C |
|
|
ESE-58L61ASWITCH DETECTOR SPST-NC 0.01A 5V |
4,480 |
|
Datasheet |
ESE58 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 30gf | - | 0.061" (1.55mm) | - | - | - | -10°C ~ 60°C |
|
|
ESE-58R11ASWITCH DETECTOR SPST-NO 0.01A 5V |
9,840 |
|
Datasheet |
ESE58 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 30gf | - | 0.069" (1.75mm) | - | - | - | -10°C ~ 60°C |
|
ESE-23J105SWITCH DETECTOR SPDT 0.01A 5V |
3,997 |
|
Datasheet |
ESE23 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | Board Guide | 30gf | - | 0.087" (2.2mm) | - | - | - | -10°C ~ 60°C |
|
ESE-23J005SWITCH DETECTOR SPDT 0.01A 5V |
3,993 |
|
Datasheet |
ESE23 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.087" (2.2mm) | - | - | - | -10°C ~ 60°C |
|
JJDVUUJ305NONMRTRSWITCH DETECTOR SPST-NO 0.01A 5V |
7,121 |
|
Datasheet |
JJD | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 40gf | - | 0.063" (1.6mm) | 0.057" (1.45mm) | - | - | -10°C ~ 60°C |
|

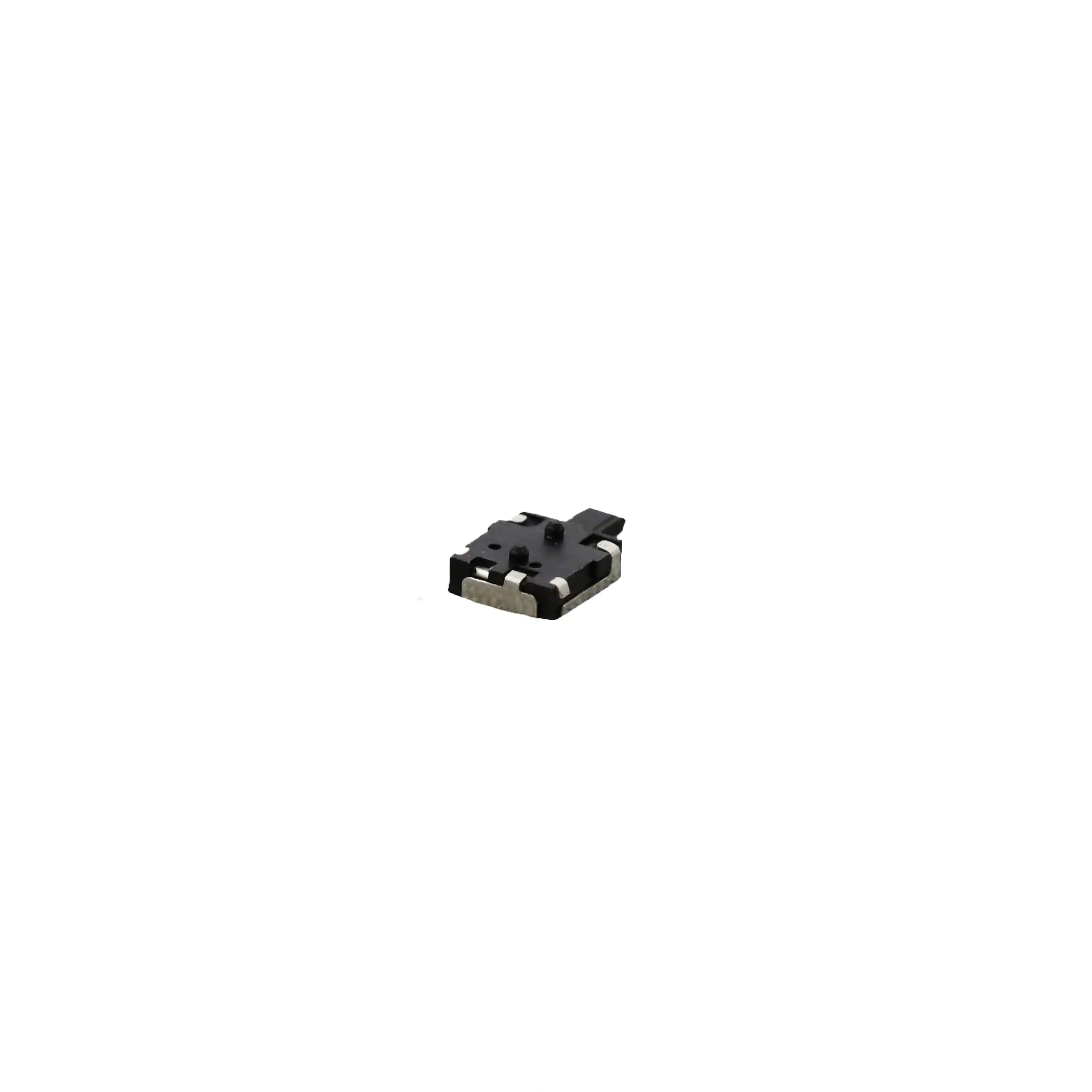

JJDVUUJ305NOPMRTRSWITCH DETECTOR SPST-NO 0.01A 5V |
6,925 |
|
Datasheet |
JJD | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | Board Guide | 40gf | - | 0.063" (1.6mm) | 0.057" (1.45mm) | - | - | -10°C ~ 60°C |
|
ESE-23F105SWITCH DETECTOR SPDT 0.01A 5V |
3,908 |
|
Datasheet |
ESE23 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.087" (2.2mm) | - | - | - | -10°C ~ 60°C |
|
JJDVDUJ305NONMRQTRSWITCH DETECTOR SPST-NO 0.01A 5V |
1,939 |
|
Datasheet |
JJD | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 40gf | - | 0.104" (2.65mm) | 0.015" (0.4mm) | - | - | -10°C ~ 60°C |
|

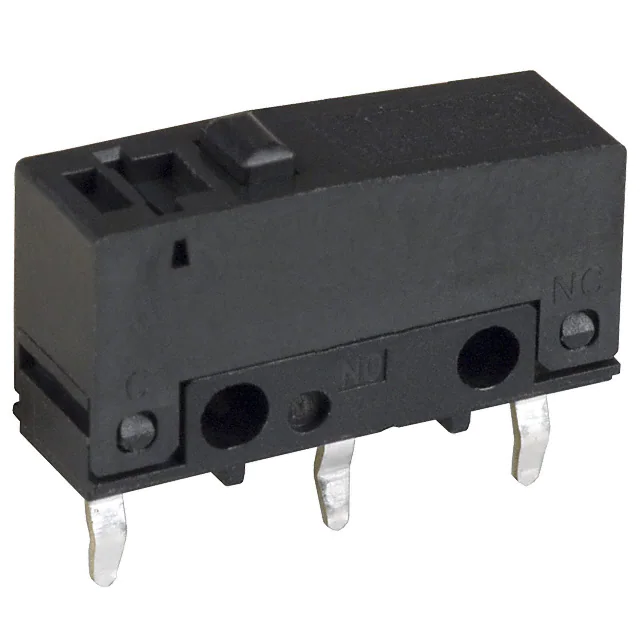

SS-3GPBSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
SS-P | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 153gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
ESE-18R13DSWITCH DETECTOR SPST-NO 0.01A 5V |
9,787 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.130" (3.3mm) | - | - | - | -10°C ~ 60°C |
|
ESE-18L63ASWITCH DETECTOR SPST-NC 0.01A 5V |
4,990 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.130" (3.3mm) | - | - | - | -10°C ~ 60°C |
|
|
ESE-18L13ASWITCH DETECTOR SPST-NO 0.01A 5V |
4,979 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.130" (3.3mm) | - | - | - | -10°C ~ 60°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
