Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

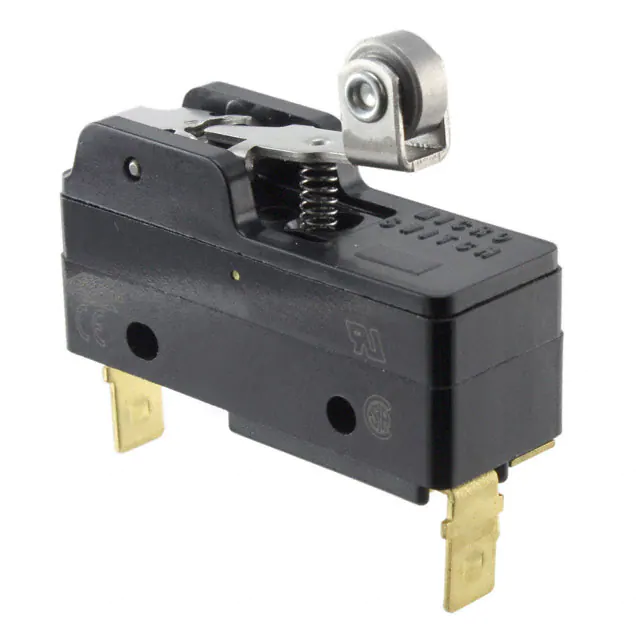

BZ-2RW822-D5SWITCH SNAP ACTION SPDT 15A 125V |
399 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 170gf | 43gf | 1.188" (30.2mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
BZ-2RW822244-A2SWITCH SNAP ACTION SPDT 5A 125V |
200 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 170gf | 43gf | 1.188" (30.2mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|

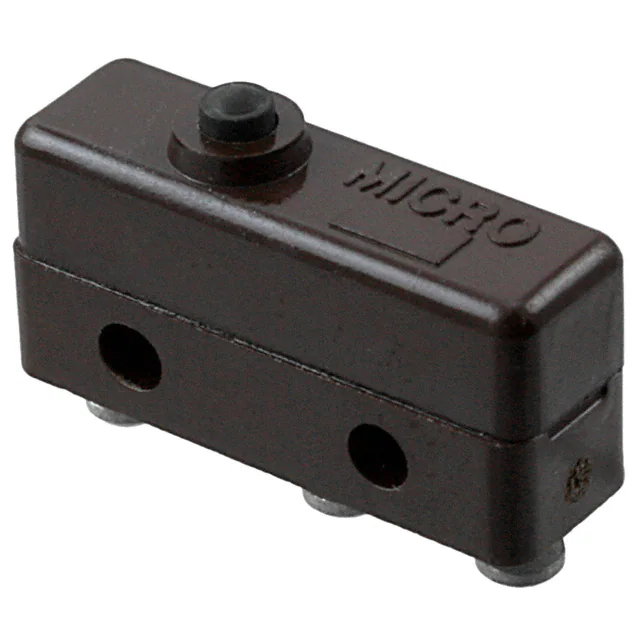

22SM426-TSWITCH SNAP ACTION SPDT 5A 250V |
211 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 99gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.001" (0.025mm) | 0.003" (0.076mm) | -55°C ~ 125°C |
|
BA-2RQ1-A2SWITCH SNAP ACTION SPDT 20A 125V |
238 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 0.859" (21.8mm) | 0.050" (1.27mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
BZ-2RW8299-A2SWITCH SNAP ACTION SPDT 15A 125V |
222 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 99gf | 21gf | 1.150" (29.2mm) | - | 0.040" (1.0mm) | 0.085" (2.16mm) | -55°C ~ 85°C |
|
Z-01HD-BSWITCH SNAP ACT SPDT 0.1A 125V |
317 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP00 | - | 250gf | 80gf | 0.846" (21.5mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
BZ-2RQ172-D6SWITCH SNAP ACTION SPDT 1A 125V |
206 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
313SX5-TSWITCH SNAP ACTION SPDT 1A 125V |
184 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Turret | - | - | 30gf | 5.099gf | 0.585" (14.86mm) | 0.106" (2.7mm) | 0.035" (0.9mm) | 0.022" (0.55mm) | -55°C ~ 125°C |
|
BZ-2RQ172-A2SWITCH SNAP ACTION SPDT 1A 125V |
282 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|

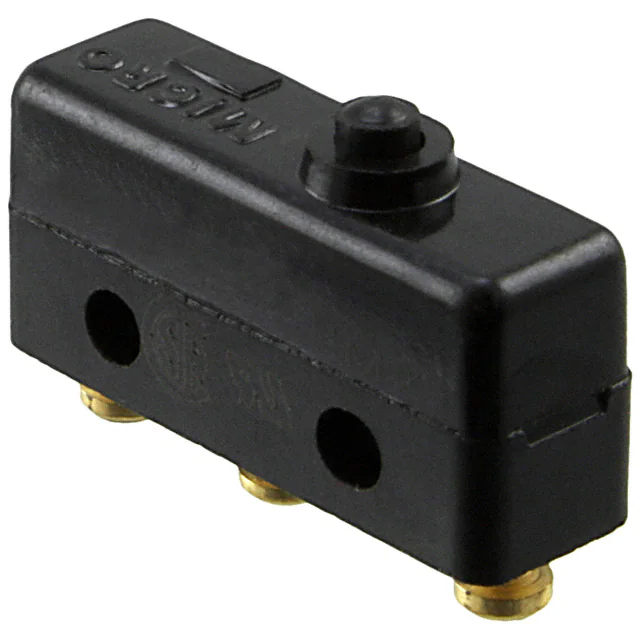

11SM430-TSWITCH SNAP ACTION SPDT 1A 125V |
193 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 99gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.001" (0.025mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|

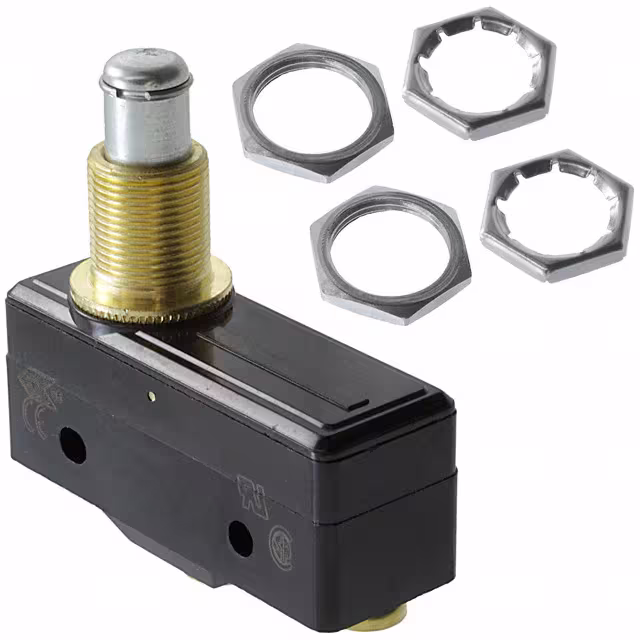

BZ-2RQ124-A2SWITCH SNAP ACTION SPDT 15A 125V |
389 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 121°C |
|

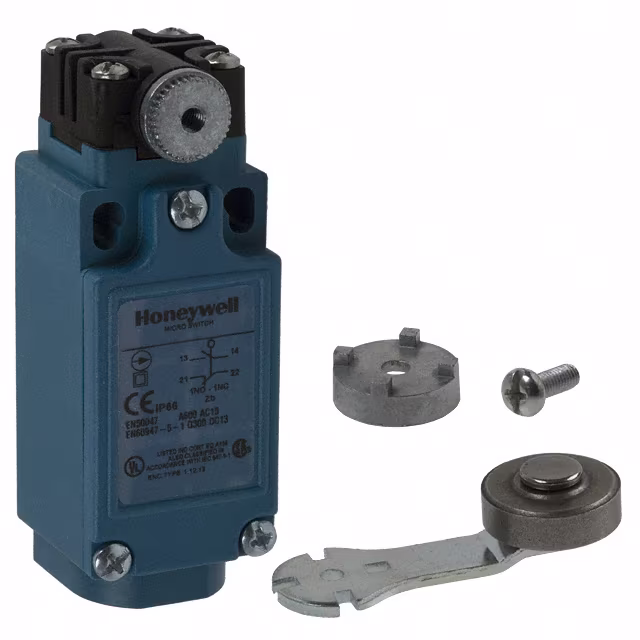

GLDA01A1BSWITCH SNAP ACTION SPDT 6A 120V |
538 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
ZC-D55-01SWITCH SNAP ACT SPDT 0.1A 125V |
34 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.276" (32.4mm) | 0.060" (1.5mm) | 0.008" (0.2mm) | 0.094" (2.4mm) | -10°C ~ 80°C |
|
NGCPB10AX01CSWITCH SNAP ACTION DPST 6A 120V |
41 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
13SX21-TSWITCH SNAP ACTION SPDT 1A 125V |
193 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 71 ~ 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|

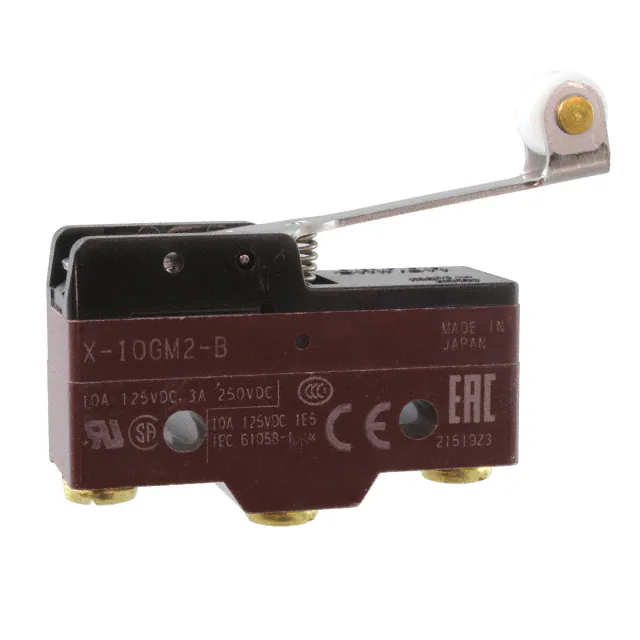

X-10GM2-BSWITCH SNAP ACTION SPDT 10A 30V |
28 |
|
Datasheet |
X | Tray | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 320gf | 50gf | 1.266" (32.2mm) | - | 0.060" (1.5mm) | 0.158" (4.0mm) | -25°C ~ 80°C |
|

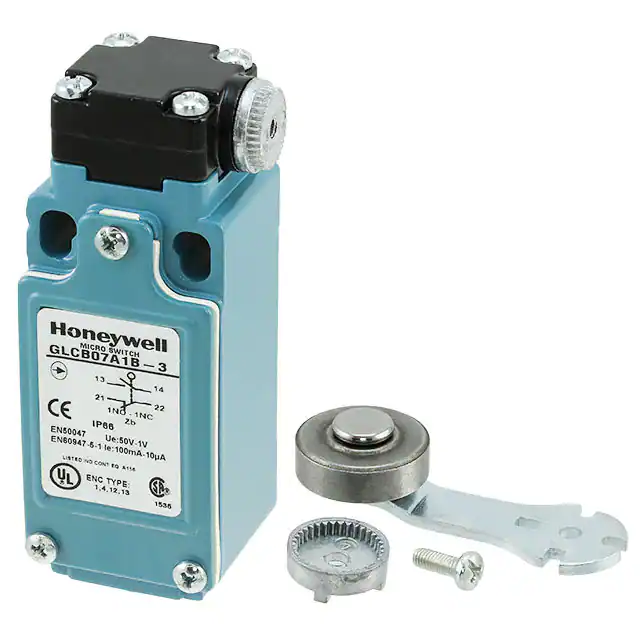

GLCB07A1B-3SWITCH SNAP ACTION SPDT 0.1A 50V |
123 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 50 V | 50 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
NGCMA10AX01A1BSWITCH SNAP ACTION DPST 6A 120V |
33 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Stainless Steel Roller | 18gfm | 2.534gfm | 25° | 25° | 15° | 65° | -25°C ~ 75°C |
|
NGCMB10AX01A1BSWITCH SNAP ACTION DPST 6A 120V |
26 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Stainless Steel Roller | 18gfm | 2.534gfm | 25° | 25° | 15° | 65° | -25°C ~ 75°C |
|

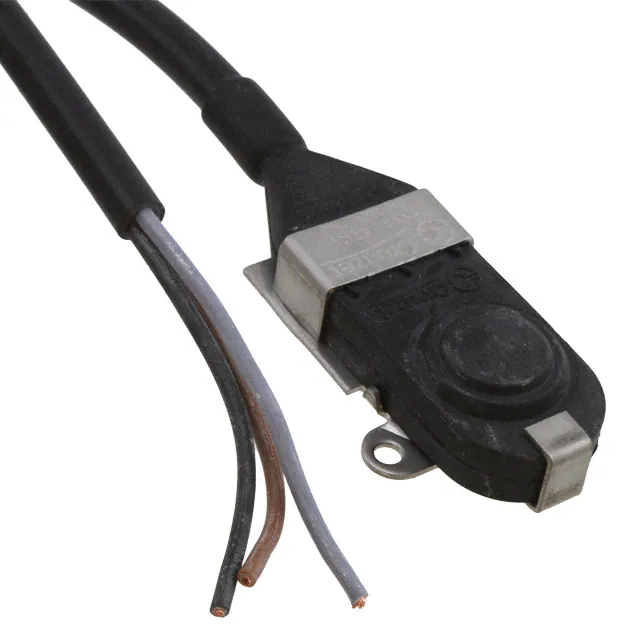

83123005SWITCH SNAP ACTION SPDT 5A 250V |
174 |
|
Datasheet |
83123 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 2m | 540gf | 153gf | 0.449" (11.4mm) | - | 0.008" (0.2mm) | 0.008" (0.2mm) | 0°C ~ 85°C |
