Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JJNHWUG200NOPMRTRSWITCH DETECTOR SPST-NO 0.1A 12V |
2,284 |
|
Datasheet |
JJN | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 70gf | - | 0.146" (3.7mm) | 0.014" (0.35mm) | - | - | -10°C ~ 60°C |
|
SS-01GL-2TSWITCH SNAP ACT SPDT 0.1A 125V |
478 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
JJCHLUJ100NOPMRTRSWITCH DETECT SPST-NO 0.001A 5V |
3,283 |
|
Datasheet |
JJC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | Board Guide | 35gf | - | 0.120" (3.05mm) | 0.012" (0.3mm) | - | - | -10°C ~ 60°C |
|
JJFV0UG380NONMRTRSWITCH DETECT SPST-NO 0.001A 5V |
1,751 |
|
Datasheet |
JJF | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 40gf | - | 0.138" (3.5mm) | 0.012" (0.3mm) | - | - | -10°C ~ 60°C |
|
JJFV0UG380NOPMRTRSWITCH DETECT SPST-NO 0.001A 5V |
835 |
|
Datasheet |
JJF | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 40gf | - | 0.138" (3.5mm) | 0.012" (0.3mm) | - | - | -10°C ~ 60°C |
|
SS-3GL13PBSWITCH SNAP ACTION SPDT 3A 125V |
467 |
|
Datasheet |
SS-P | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 51gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
SS-01GL-F-3DSWITCH SNP ACT SPST-NO 0.1A 125V |
461 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 16gf | 2.039gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
AH166061SWITCH SNAP ACT SPDT 0.1A 125V |
128 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
JJHH0UG200NONMRTRSWITCH DETECTOR SPST-NO 0.01A 5V |
3,511 |
|
Datasheet |
JJH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 150gf | - | 0.134" (3.4mm) | 0.014" (0.35mm) | - | - | -40°C ~ 85°C |
|
JJGH0UG200NOHPMRTRSWITCH DETECTOR SPST-NO 0.1A 12V |
5,316 |
|
Datasheet |
JJG | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 100gf | - | 0.136" (3.45mm) | 0.012" (0.3mm) | - | - | -40°C ~ 85°C |
|
D2AW-EL002D RSWITCH SNAP ACT SPST-NC 0.1A 12V |
428 |
|
Datasheet |
D2AW | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | Support Posts | 101gf | 10gf | 0.409" (10.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
D2AW-ER002D RSWITCH SNAP ACT SPST-NC 0.1A 12V |
411 |
|
Datasheet |
D2AW | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | Support Posts | 101gf | 10gf | 0.409" (10.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
SS-5-F-2DSWITCH SNAP ACT SPST-NC 5A 125V |
410 |
|
Datasheet |
SS | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 50gf | 4.079gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
|
SM3CQF3501L02SWITCH LIMIT SPDT 5A 125V |
204 |
|
Datasheet |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 95gf | 30gf | 0.512" (13.00mm) | 0.178" (4.5mm) | 0.035" (0.9mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
|
D3SK-A1L-6SWITCH DETECT SPST-NO 0.001A 5V |
1,386 |
|
Datasheet |
D3SK | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Board Guide, Left Operating Lever | 41gf | - | 0.185" (4.7mm) | - | - | - | -25°C ~ 85°C |
|
SS075Q103F040V1ASWITCH SNAP ACT SPDT 0.1A 125V |
608 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 40gf | 15gf | 0.380" (9.7mm) | 0.053" (1.35mm) | - | - | -25°C ~ 75°C |
|
SAJ13XXPP0N88SNCPTQSWITCH SNAP ACT SPST-NC 3A 125V |
995 |
|
Datasheet |
SAJ1 | Bulk | Active | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 90gf | 5.000gf | 0.272" (6.9mm) | 0.020" (0.5mm) | 0.008" (0.2mm) | 0.008" (0.2mm) | -25°C ~ 75°C |
|

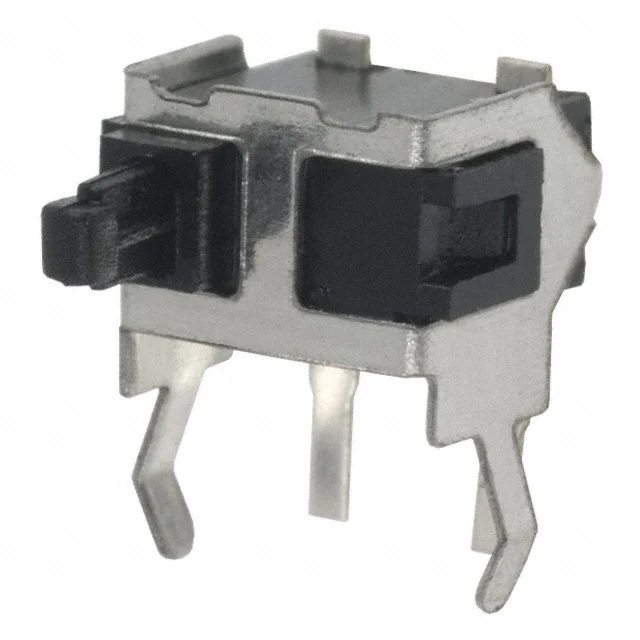

DDS003SWITCH SNAP SPST-NO 100MA 30V |
204 |
|
Datasheet |
DDS | Tray | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Overtravel Plunger | Through Hole | PC Pin | - | - | 40gf | - | 0.197" (5.0mm) | - | - | 0.079" (2.0mm) | -20°C ~ 70°C |
|
ZMT01ACFP00PCESWITCH SNAP ACT SPDT 0.1A 125V |
170 |
|
Datasheet |
ZMT | Box | Active | SPDT | On-Mom | 100mA (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 170gf | 35gf | 0.232" (5.9mm) | 0.020" (0.5mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
|
|
SM3AQF0804L03SWITCH LIMIT SPST-NO 5A 125V |
234 |
|
Datasheet |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 18gf | 5.000gf | 0.646" (16.4mm) | 0.161" (4.1mm) | 0.031" (0.80mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
