Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
11SM244-H4SWITCH SNAP ACTION SPDT 5A 250V |
210 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC), 300mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|

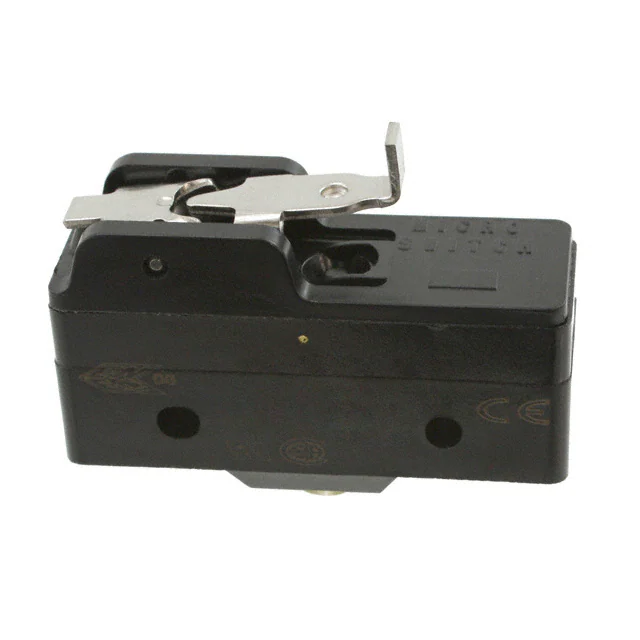

BZ-2RW80288-A2SWITCH SNAP ACTION SPDT 15A 125V |
187 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 85gf | 7.087gf | 0.961" (24.4mm) | - | 0.020" (0.5mm) | 0.100" (2.54mm) | -55°C ~ 85°C |
|
V7-7B37D8C4-732-1SWITCH SNAP ACT SPST-NC 11A 125V |
142 |
|
Datasheet |
V7 | Bulk | Active | SPST-NC | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Formed | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 273gf | 45gf | 0.602" (15.3mm) | - | 0.012" (0.3mm) | 0.032" (0.81mm) | - |
|
D2D-3103SWITCH SNAP ACTION SPDT 16A 250V |
146 |
|
Datasheet |
D2D | Tray | Active | SPDT (DB/DM) + SPST-NO (DB) | On-Mom, Off-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | - | 300gf | - | 0.468" (11.9mm) | - | - | 0.090" (2.3mm) | -25°C ~ 85°C |
|
1SM1SWITCH SNAP ACTION SPDT 5A 250V |
173 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
V15W-WZ200A05-AW1SWITCH SNAP ACT SPDT 0.1A 125V |
920 |
|
Datasheet |
V15W | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | - | 0.810" (20.57mm) | 0.080" (2.0mm) | 0.020" (0.51mm) | 0.040" (1.02mm) | -40°C ~ 85°C |
|
D2SW-P2L2MSWITCH SNAP ACTION SPDT 2A 250V |
184 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|

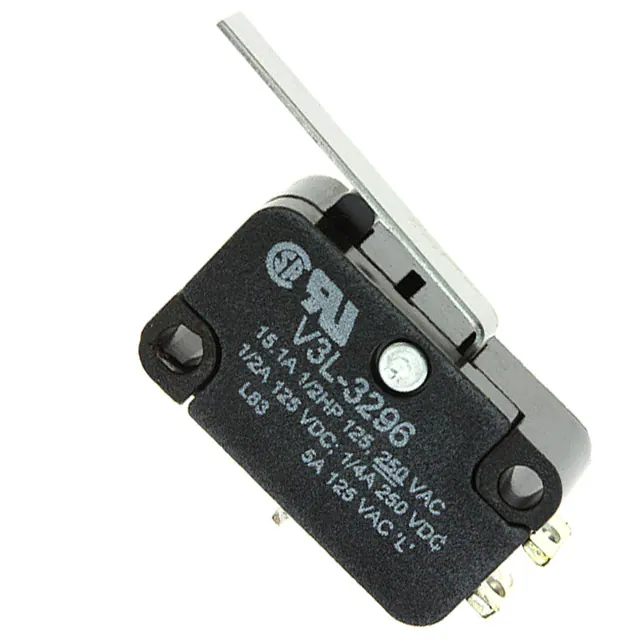

V3L-3296SWITCH SNAP ACTION SPDT 15A 125V |
449 |
|
Datasheet |
V3L | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 88gf | 6.000gf | 0.600" (15.2mm) | 0.120" (3.0mm) | 0.032" (0.81mm) | 0.090" (2.3mm) | - |
|
311SM706-TSWITCH SNAP ACTION SPDT 4A 250V |
185 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 4A (AC), 5A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder Turret | - | - | 16gf | 3.059gf | 0.560" (14.2mm) | 0.085" (2.16mm) | 0.013" (0.33mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|
J-7-V3SWITCH SNAP ACTION SPDT 7A 250V |
749 |
|
Datasheet |
J | Tray | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Turret | IP40 | - | 30gf | 5.099gf | 0.328" (8.3mm) | 0.114" (2.9mm) | 0.027" (0.7mm) | 0.020" (0.5mm) | -10°C ~ 80°C |
|

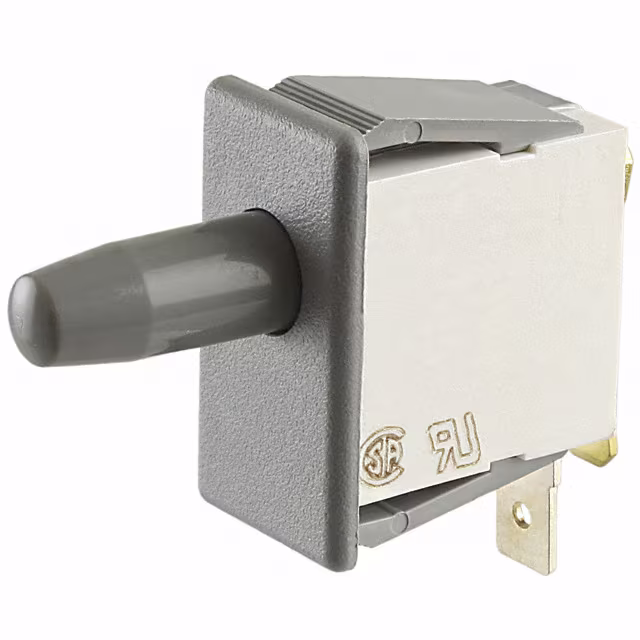

1DM176SWITCH SNAP ACTION SPDT 10A 125V |
143 |
|
Datasheet |
DM | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | 85gf | 0.750" (19.1mm) | - | 0.045" (1.1mm) | 0.375" (9.5mm) | -37°C ~ 82°C |
|
Z-15GW4-BSWITCH SNAP ACTION SPDT 15A 125V |
2,344 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP00 | - | 28gf | 3.500gf | 0.748" (19.0mm) | 0.394" (10.0mm) | 0.050" (1.3mm) | 0.219" (5.6mm) | -25°C ~ 80°C |
|
1DM21SWITCH SNAP ACTION SPDT 10A 125V |
295 |
|
Datasheet |
DM | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | 85gf | 0.355" (9.0mm) | - | 0.045" (1.1mm) | 0.235" (6.0mm) | -37°C ~ 82°C |
|
|
D2RV-L2GSWITCH SNAP SPST-NO 0.25A 100V |
154 |
|
Datasheet |
D2RV | Bulk | Active | SPST-NO | Off-Mom | 250mA (DC) | - | 100 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 50gf | - | 0.785" (19.9mm) | 0.157" (4.0mm) | 0.062" (1.6mm) | 0.040" (1.0mm) | -10°C ~ 60°C |
|

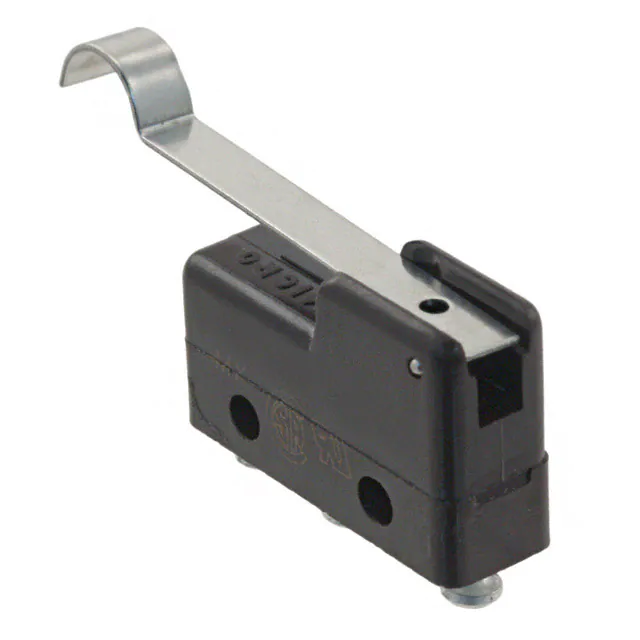

311SM705-TSWITCH SNAP ACTION SPDT 4A 250V |
180 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 4A (AC), 5A (DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Turret | - | - | 12gf | 2.039gfm | 0.455" (11.6mm) | 0.120" (3.0mm) | 0.015" (0.38mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|

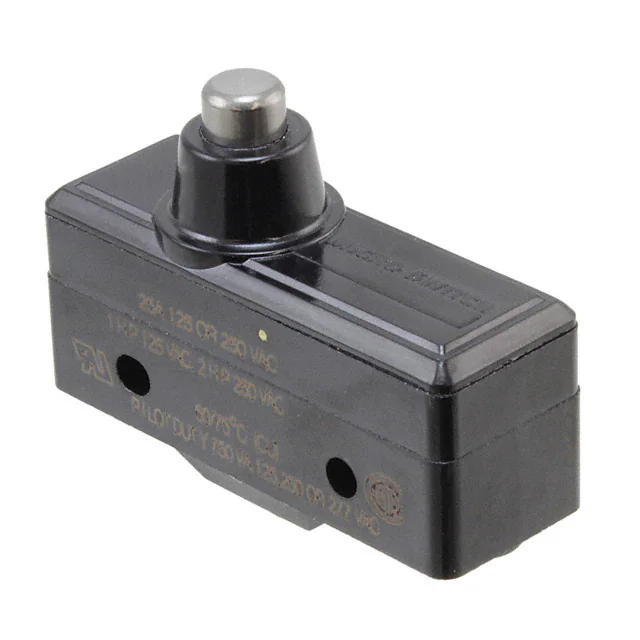

YE-2RB-A2SWITCH SNAP ACT SPST-NO 25A 125V |
131 |
|
Datasheet |
YE | Bulk | Active | SPST-NO | Off-Mom | 25A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 1.030" (26.2mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
D2VW-5L1B-3HSSWITCH SNAP ACT SPST-NO 5A 125V |
129 |
|
Datasheet |
D2VW | Tray | Active | SPST-NO | Off-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 60gf | 5.099gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.080" (2.0mm) | 0.125" (3.2mm) | -40°C ~ 85°C |
|
1DM437SWITCH SNAP ACTION SPDT 1A 125V |
192 |
|
Datasheet |
DM | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | - | 0.755" (19.2mm) | - | - | 0.585" (14.9mm) | -37°C ~ 82°C |
|
111SM602-H4SWITCH SNAP ACTION SPDT 5A 250V |
207 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 198gf | 57gf | 0.562" (14.3mm) | 0.218" (5.5mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -55°C ~ 125°C |
|
4SX37-H58SWITCH SNAP ACTION SPDT 7A 250V |
188 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -55°C ~ 204°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
