Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

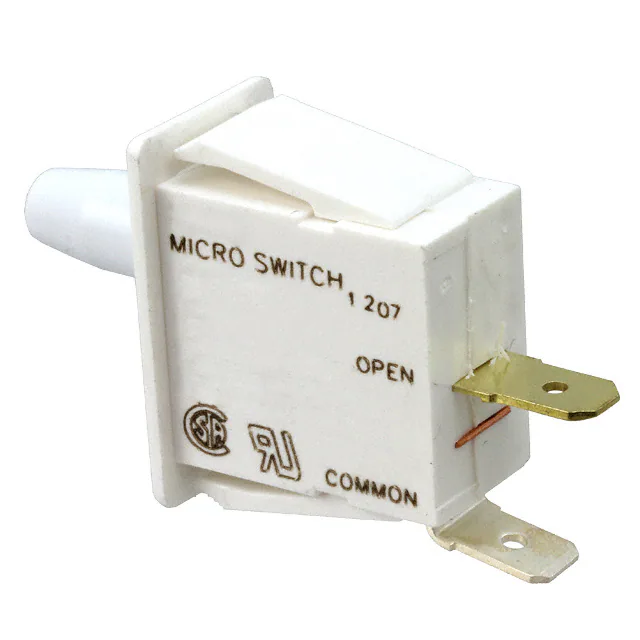

1DP5SWITCH SNAP ACT SPST-NO 14A 125V |
143 |
|
Datasheet |
DP | Bulk | Active | SPST-NO | Off-Mom | 14A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 454gf | 85gf | 0.595" (15.13mm) | - | - | 0.219" (5.6mm) | -37°C ~ 82°C |
|
BA-2RV-A2SWITCH SNAP ACTION SPDT 20A 125V |
154 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 71gf | 15gf | 0.750" (19.1mm) | 0.630" (16.0mm) | 0.110" (2.8mm) | 0.077" (1.96mm) | -55°C ~ 85°C |
|
311SX3-TSWITCH SNAP ACTION SPDT 5A 125V |
167 |
|
Datasheet |
SX | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 20gf | 3.059gf | 0.305" (7.75mm) | 0.185" (4.7mm) | 0.060" (1.5mm) | 0.025" (0.6mm) | -55°C ~ 125°C |
|
Z-15HW24-BSWITCH SNAP ACTION SPDT 15A 125V |
129 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP00 | - | 6.000gf | 0.500gf | 0.780" (19.8mm) | 0.780" (19.8mm) | 0.080" (2.0mm) | 0.394" (10.0mm) | -25°C ~ 80°C |
|

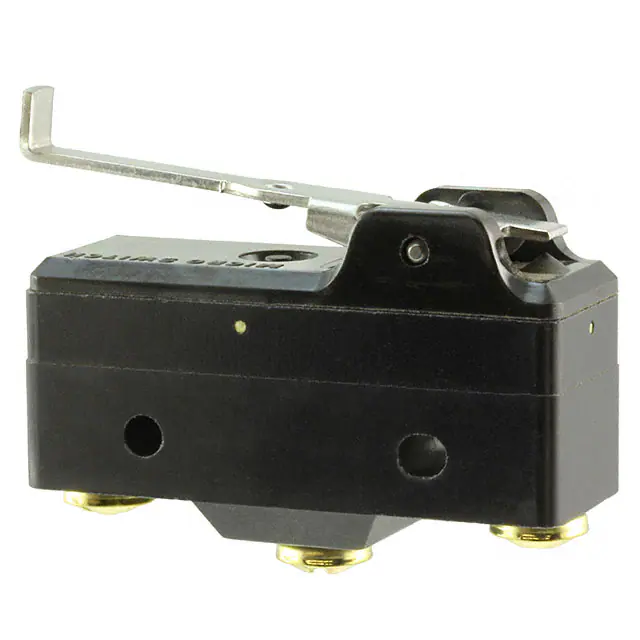

BA-1RV5435246-A2SWITCH SNAP ACTION SPDT 15A 125V |
187 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Formed | Chassis Mount | Screw Terminal | - | - | 42gf | 14gf | 0.875" (22.2mm) | 0.275" (7.0mm) | 0.030" (0.76mm) | 0.060" (1.5mm) | -55°C ~ 121°C |
|
BZ-2RQ784SWITCH SNAP ACTION SPDT 15A 125V |
337 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Panel Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 1.953" (49.6mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|
MMGGD1L0TSWITCH SNAP ACTION SPDT 7A 250V |
289 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 115gf | 20gf | 0.330" (8.4mm) | 0.090" (2.3mm) | 0.026" (0.65mm) | 0.045" (1.1mm) | -55°C ~ 135°C |
-1MS SERIES.jpg)
|
D2VW-01-1MSSWITCH SNAP ACT SPDT 0.1A 125V |
3,048 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

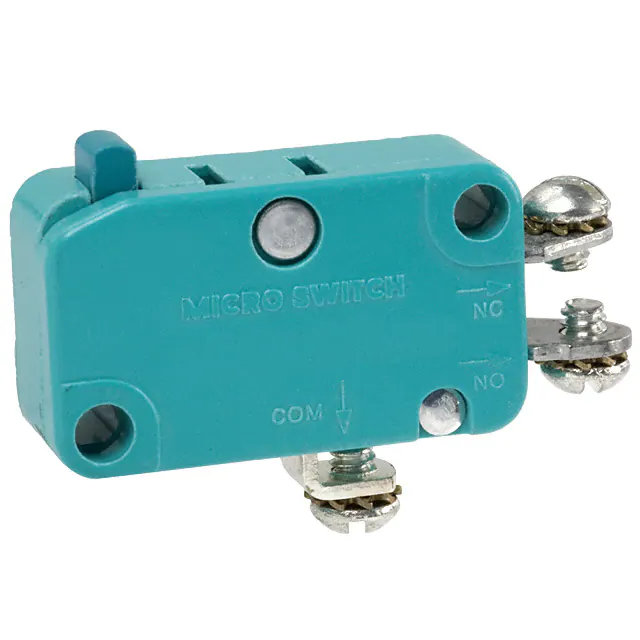

V3-1001SWITCH SNAP ACTION SPDT 10A 115V |
119 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 170 ~ 397gf | 113gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
|

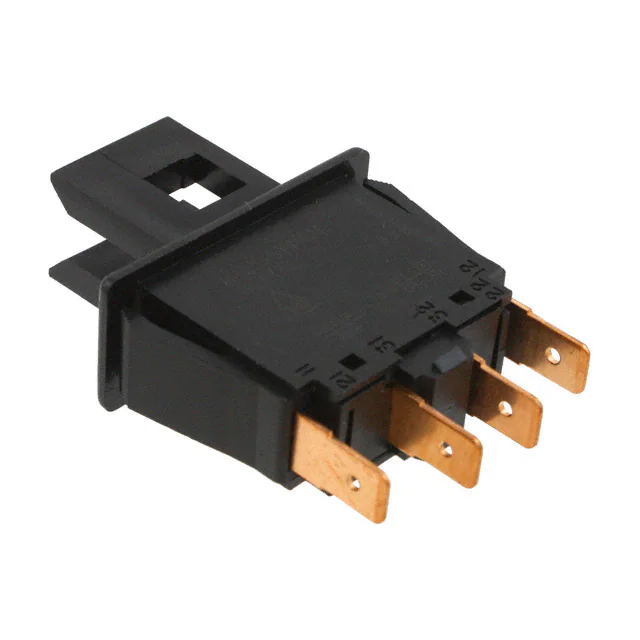

WW1G02A-D9SWITCH SNAP ACT DPST-NO 3A 125V |
123 |
|
Datasheet |
WW | Bulk | Active | DPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | Button Guard | 907gf | - | 0.355" (9.0mm) | - | - | 0.079" (2.0mm) | - |
|

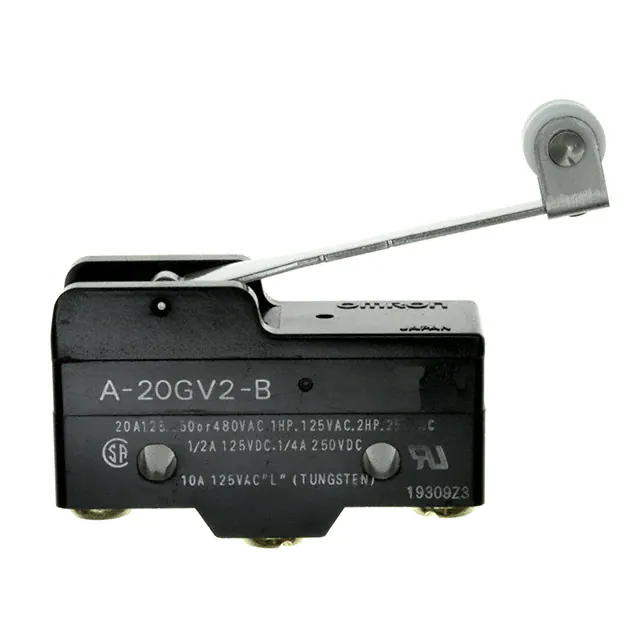

A-20GV2-BSWITCH SNAP ACTION SPDT 20A 125V |
309 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 90gf | 14gf | 1.188" (30.2mm) | 0.472" (12.0mm) | 0.086" (2.2mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|

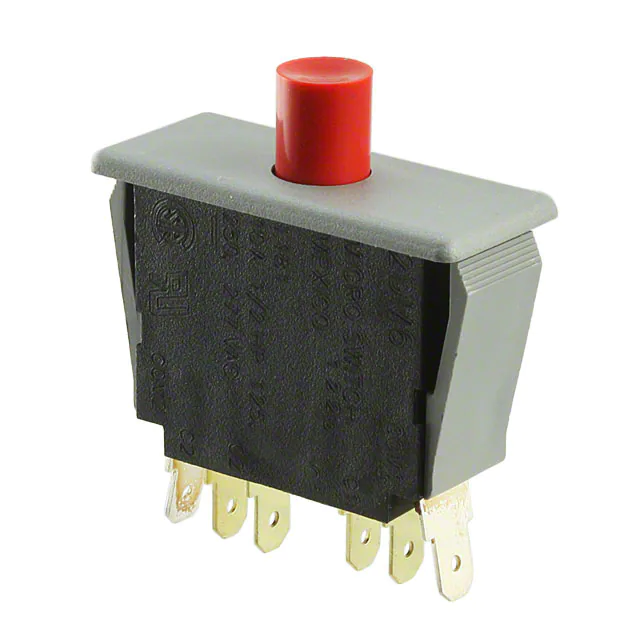

2DM6SWITCH SNAP ACTION DPDT 10A 125V |
168 |
|
Datasheet |
DM | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | 170gf | - | - | - | 0.120" (3.05mm) | -37°C ~ 82°C |
|

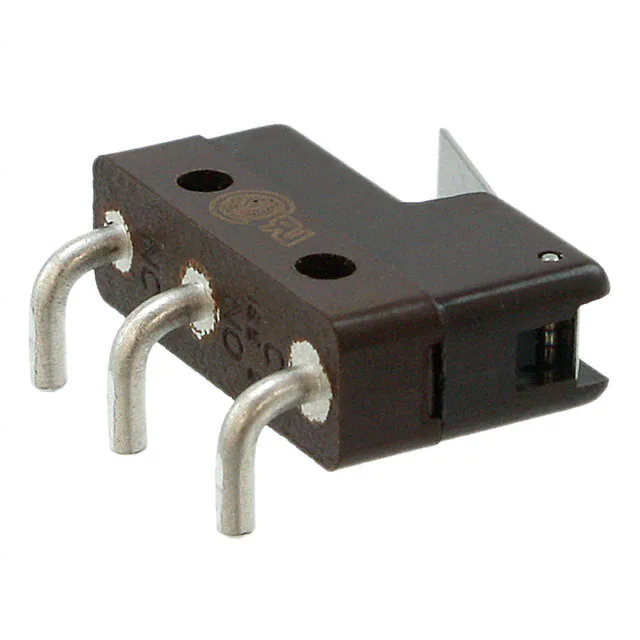

341SM169-H252SWITCH SNAP ACTION SPDT 11A 250V |
137 |
|
- |
SM | Bulk | Active | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 45gf | 7.138gf | 0.340" (8.6mm) | 0.080" (2.0mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|
D2VW-5L2A-2MSSWITCH SNAP ACT SPST-NC 5A 125V |
451 |
|
Datasheet |
D2VW | Bulk | Active | SPST-NC | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 230gf | 20gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
Z-15GD55SWITCH SNAP ACTION SPDT 15A 125V |
106 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP62 | - | 540gf | 114gf | 0.846" (21.5mm) | 0.071" (1.8mm) | 0.002" (0.05mm) | 0.062" (1.6mm) | -15°C ~ 80°C |
|
W26-810SWITCH SNAP ACTION DPDT 6A 115V |
300 |
|
Datasheet |
W26 | Bulk | Active | DPDT (DB/DM) | On-On | 6A (AC), 8A (DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 510gf | 142gf | 0.394" (10.0mm) | 0.060" (1.5mm) | 0.025" (0.6mm) | 0.020" (0.51mm) | -65°C ~ 125°C |
|
BZ-RW822-P4SWITCH SNAP ACTION SPDT 15A 125V |
123 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 156gf | 43gf | 1.188" (30.2mm) | - | 0.006" (0.15mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
Z-15GW4455-BSWITCH SNAP ACTION SPDT 15A 125V |
996 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP62 | - | 90gf | 14gf | 0.748" (19.0mm) | - | 0.138" (3.5mm) | 0.219" (5.6mm) | -15°C ~ 80°C |
|
23SL40410SWITCH SNAP ACTION DPDT 10A 125V |
460 |
|
Datasheet |
SL | Box | Active | DPDT | On-On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 200gf | - | - | - | - | - | -40°C ~ 85°C |
|
411SX21-TSWITCH SNAP ACTION SPDT 2A 28V |
848 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 2A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -53°C ~ 204°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
