Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2HW-C272MRSWITCH SNP ACT SPST-NC 0.1A 125V |
431 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.425" (10.8mm) | - | 0.020" (0.5mm) | 0.079" (2.0mm) | -40°C ~ 85°C |
|
V15W-DZ200A04-W2SWITCH SNAP ACTION SPDT 5A 125V |
811 |
|
Datasheet |
V15W | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 20gf | 0.730" (18.5mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
L3M SERIES.jpg)
|
D2SW-P2L3MSWITCH SNAP ACTION SPDT 2A 250V |
201 |
|
Datasheet |
D2SW-P | Tray | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
ASKHF3J04AYSWITCH SNAP ACT SPST-NO 25A 125V |
1,973 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
V7-9W1AE9-048SWITCH SNAP ACTION SPDT 15A 125V |
183 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 90gf | 4.000gf | 0.602" (15.3mm) | 0.250" (6.35mm) | 0.055" (1.4mm) | 0.125" (3.2mm) | -40°C ~ 177°C |
|
311SM701-TSWITCH SNAP ACTION SPDT 4A 250V |
164 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 4A (AC), 5A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 16gf | 3.059gf | 0.340" (8.6mm) | 0.085" (2.16mm) | 0.014" (0.35mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|
D2SW-01L3MSSWITCH SNAP ACT SPDT 0.1A 125V |
673 |
|
Datasheet |
D2SW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
311SM5-TSWITCH SNAP ACTION SPDT 5A 250V |
184 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Turret | - | - | 30gf | 5.099gf | 0.455" (11.6mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|

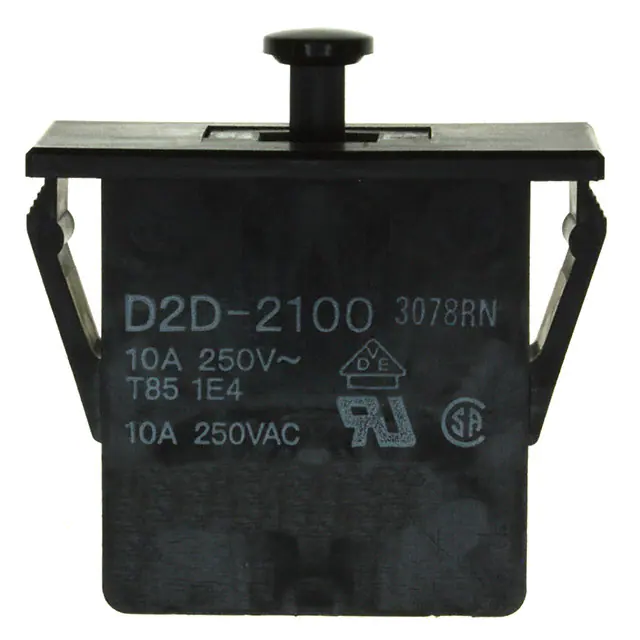

D2D-2100SWITCH SNAP ACTION SPDT 10A 250V |
935 |
|
Datasheet |
D2D | Tray | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | Pull On Lock | 300gf | - | 0.343" (8.7mm) | - | - | 0.175" (4.5mm) | -25°C ~ 85°C |
|
D2HW-BL231MSWITCH SNAP ACT SPDT 0.1A 125V |
144 |
|
Datasheet |
D2HW | Tray | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 66gf | 5.099gf | 0.440" (11.2mm) | - | 0.020" (0.5mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|
D2HW-C281MSWITCH SNAP ACT SPDT 0.1A 125V |
568 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 92gf | 5.099gf | 0.606" (15.4mm) | - | 0.027" (0.7mm) | 0.110" (2.8mm) | -40°C ~ 85°C |
|
D2SW-P01L2MSWITCH SNAP ACT SPDT 0.1A 125V |
747 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
1DM18SWITCH SNAP ACTION SPDT 10A 125V |
144 |
|
Datasheet |
DM | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | - | - | - | - | 0.120" (3.05mm) | -37°C ~ 82°C |
|

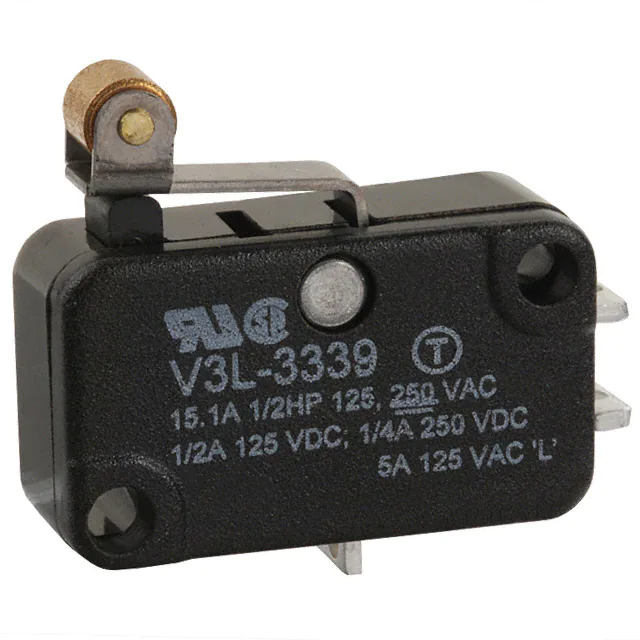

V3L-3339SWITCH SNAP ACTION SPDT 15A 125V |
977 |
|
Datasheet |
V3L | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 150gf | 15gf | 0.812" (20.6mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.040" (1.0mm) | - |
|

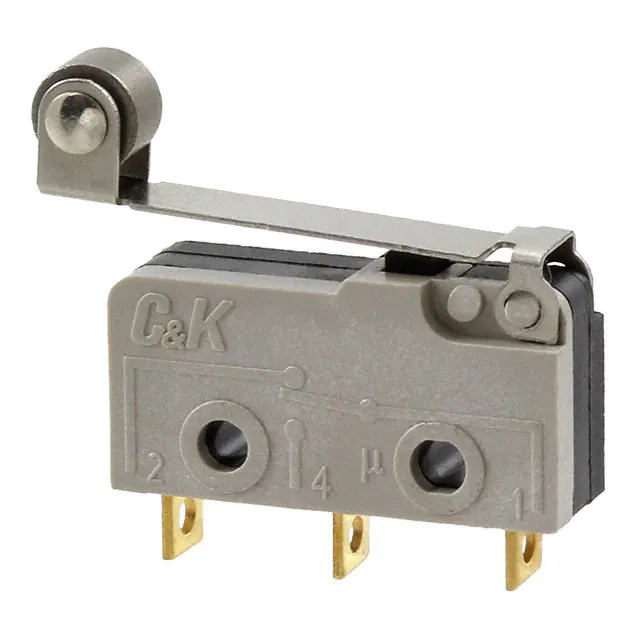

LCGGF5A10ECUSWITCH SNAP ACTION SPDT 1A 125V |
133 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 48gf | 6.000gf | 0.560" (14.2mm) | 0.140" (3.6mm) | 0.034" (0.86mm) | 0.029" (0.74mm) | -25°C ~ 85°C |
|
X0230872SWITCH SNAP ACTION SPDT 6A 250V |
326 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 85gf | 27gf | 0.606" (15.4mm) | - | 0.012" (0.3mm) | 0.070" (1.8mm) | -40°C ~ 105°C |
|
|
X0229202SWITCH SNAP ACTION SPDT 6A 250V |
1,089 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 85gf | 27gf | 0.606" (15.4mm) | - | 0.012" (0.3mm) | 0.070" (1.8mm) | -40°C ~ 105°C |
|
83133115SWITCH SNAP ACTION SPDT 5A 125V |
172 |
|
Datasheet |
83133 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | Actuator Mounted Left Side | 35gf | 6.000gf | 0.413" (10.5mm) | 0.203" (5.15mm) | 0.083" (2.1mm) | - | -20°C ~ 125°C |
|

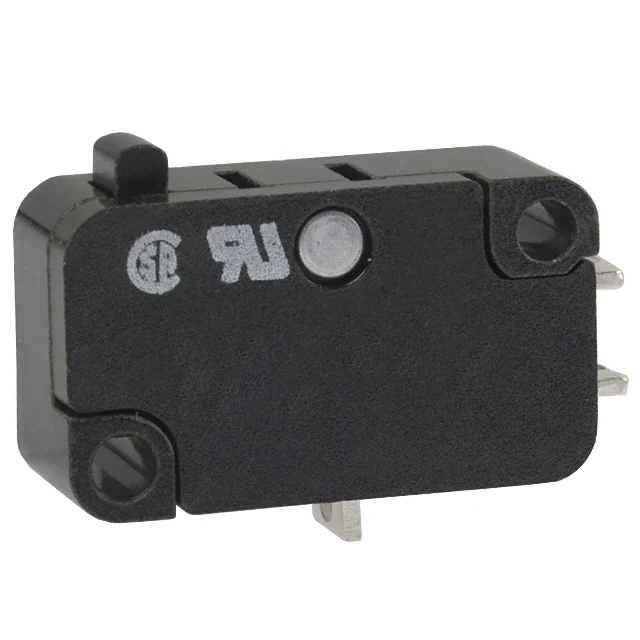

V3-15SWITCH SNAP ACTION SPDT 15A 125V |
188 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 170 ~ 397gf | 113gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
|

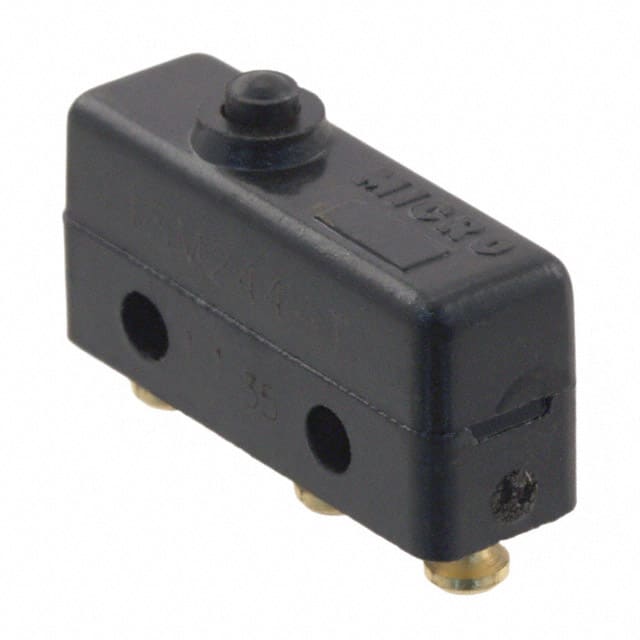

11SM244-TSWITCH SNAP ACTION SPDT 5A 250V |
140 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC), 300mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
