Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V7-4A29E8-424SWITCH SNAP ACT SPST-NO 5A 125V |
210 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 10gf | - | 0.812" (20.6mm) | 0.183" (4.6mm) | 0.040" (1.0mm) | 0.098" (2.5mm) | -40°C ~ 85°C |
|
D2S-01L2SWITCH SNAP ACT SPDT 0.1A 125V |
484 |
|
Datasheet |
D2S | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP40 | Sealed - Flux Protection | 50gf | 6.118gf | 0.594" (15.1mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
V7-6C17D8-057SWITCH SNAP ACTION SPDT 15A 125V |
234 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 113gf | - | 0.602" (15.3mm) | 0.310" (7.9mm) | 0.065" (1.7mm) | 0.146" (3.7mm) | -40°C ~ 85°C |
|
D2VW-5L1-3HSSWITCH SNAP ACT SPST-NO 5A 125V |
1,099 |
|
Datasheet |
D2VW | Tray | Active | SPST-NO | Off-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
D2SW-3L2TSSWITCH SNAP ACTION SPDT 3A 125V |
881 |
|
Datasheet |
D2SW | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
H3141AAKAASWITCH DETECTOR DPDT 5A 250V |
445 |
|
Datasheet |
3140 | Bulk | Active | DPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
V-166-1C6SWITCH SNAP ACTION SPDT 16A 250V |
736 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 400gf | 80gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 105°C |
|
V-215-1C6SWITCH SNAP ACTION SPDT 21A 250V |
437 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 21A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 480gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
83186001SWITCH SNAP ACTION SPDT 6A 250V |
2,181 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
|

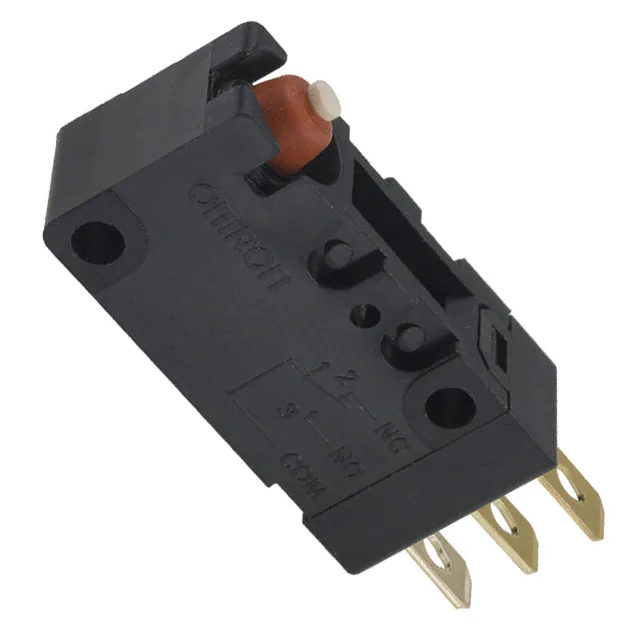

D2VW-01-1HSSWITCH SNAP ACT SPDT 0.1A 125V |
466 |
|
Datasheet |
D2VW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

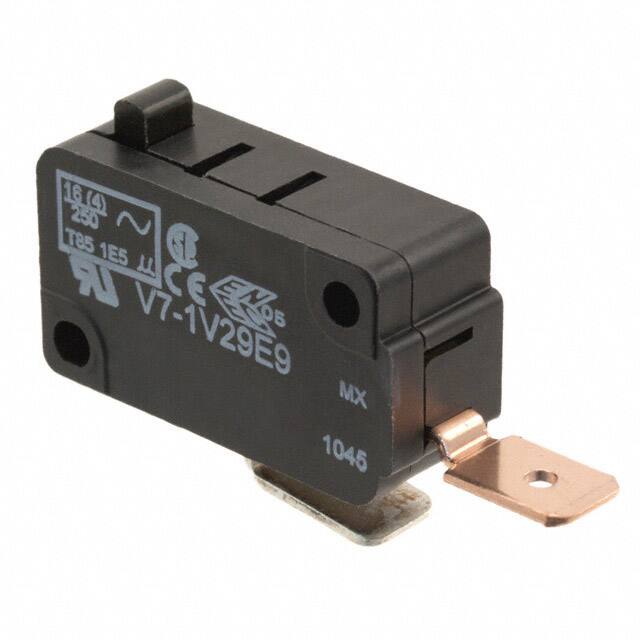

V7-1V29E9SWITCH SNAP ACT SPST-NO 21A 125V |
162 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 21A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 175gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
D433-R1RDSWITCH SNAP ACTION SPDT 6A 250V |
689 |
|
Datasheet |
D4 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 88gf | 20gf | 0.806" (20.5mm) | 0.125" (3.2mm) | 0.030" (0.76mm) | 0.087" (2.2mm) | -40°C ~ 85°C |
|
D2SW-01L2TSSWITCH SNAP ACT SPDT 0.1A 125V |
299 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
D2VW-01L3-1HSSWITCH SNAP ACT SPDT 0.1A 125V |
1,123 |
|
Datasheet |
D2VW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
V7-6C17D8-162SWITCH SNAP ACTION SPDT 15A 125V |
128 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 85gf | - | 0.600" (15.2mm) | 0.450" (11.4mm) | 0.156" (4.0mm) | 0.141" (3.6mm) | -40°C ~ 85°C |
|
ASQMR11630ASWITCH SNAP ACT FAIL DETECT 16V |
127 |
|
Datasheet |
ASQMR1 | Tray | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 16 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 122gf | - | 0.541" (13.75mm) | - | - | 0.063" (1.6mm) | -40°C ~ 85°C |
|
TFCJF5SP0040CSWITCH SNAP ACTION SPDT 1A 125V |
8,709 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 35gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
ASQ10337SWITCH SNAP ACT SPST-NO 0.1A 30V |
185 |
|
Datasheet |
ASQ1 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 173gf | - | 0.366" (9.3mm) | - | - | 0.102" (2.6mm) | -40°C ~ 85°C |
|
|
D2QW-C003DSWITCH SNAP ACT SPST-NO 0.1A 30V |
182 |
|
Datasheet |
D2QW | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.330" (8.4mm) | - | - | 0.106" (2.7mm) | -40°C ~ 85°C |
|
V7-1S17D8-263SWITCH SNAP ACT SPDT 100MA 125V |
140 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 9.000gf | 0.730" (18.5mm) | 0.110" (2.8mm) | 0.030" (0.76mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
