Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2F-01FL2-TSWITCH SNAP ACTION SPDT 0.1A 30V |
746 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 40gf | 2.039gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
SS-5GL13-F-3TSWITCH SNAP ACT SPST-NO 5A 125V |
440 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 16gf | 2.039gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
ZM50E10A01SWITCH SNAP ACTION SPDT 5A 125V |
1,810 |
|
Datasheet |
ZM | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 146gf | 35gf | 0.449" (11.4mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|
D2SW-P2L1HSWITCH SNAP ACTION SPDT 2A 250V |
494 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
V15S05-EZ025SWITCH SNAP ACTION SPDT 5A 125V |
1,026 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 5A (AC), 100mA (DC) | 125 V | 48 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 25gf | - | - | - | - | - | -25°C ~ 85°C |
|
D2SW-P01HSWITCH SNAP ACT SPDT 0.1A 125V |
580 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -20°C ~ 70°C |
|
SSG-01HSWITCH SNAP ACT SPDT 0.1A 125V |
18 |
|
Datasheet |
SSG | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 153gf | 25gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 125°C |
|

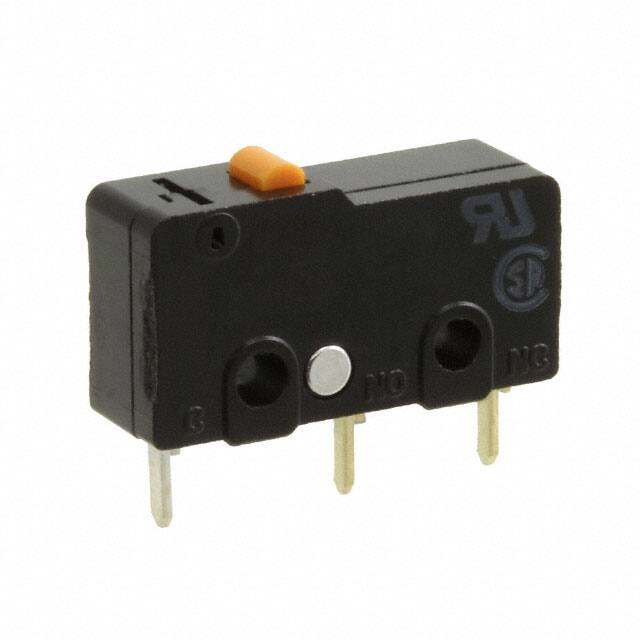

SS-5-FDSWITCH SNAP ACTION SPDT 5A 125V |
292 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 50gf | 4.079gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
D3V-013-1C23SWITCH SNAP ACT SPDT 0.1A 125V |
17,752 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 20gf | - | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.125" (3.2mm) | -25°C ~ 85°C |
|
D2S-5DSWITCH SNAP ACTION SPDT 5A 125V |
473 |
|
Datasheet |
D2S | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | Sealed - Flux Protection | 150gf | 25gf | 0.330" (8.4mm) | 0.028" (0.7mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
SS-5GL13-3TSWITCH SNAP ACT SPST-NO 5A 125V |
1,927 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
.jpg)
|
D3V-16G-1C25-KSWITCH SNAP ACTION SPDT 16A 250V |
370 |
|
Datasheet |
D3V | Tray | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|

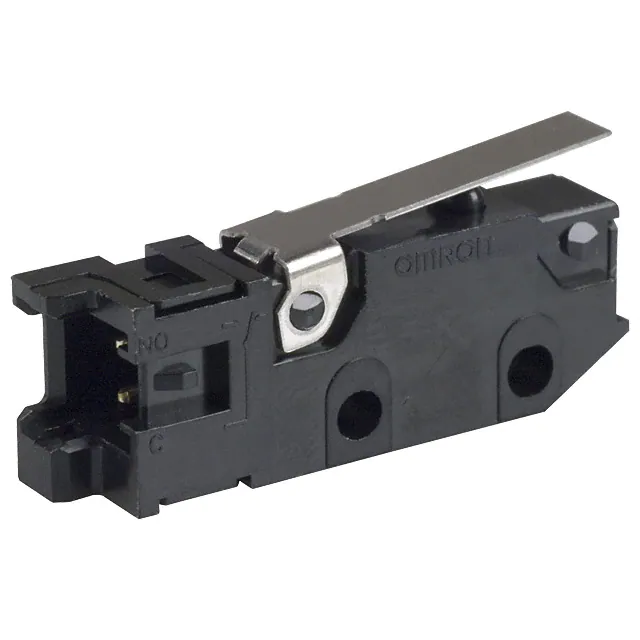

D3M-01L1-3SWITCH SNAP ACT SPST-NO 0.1A 30V |
2,712 |
|
Datasheet |
D3M | Tray | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Connector | IP40 | - | 102gf | 10gf | 0.362" (9.2mm) | - | 0.025" (0.6mm) | 0.026" (0.7mm) | -25°C ~ 85°C |
|

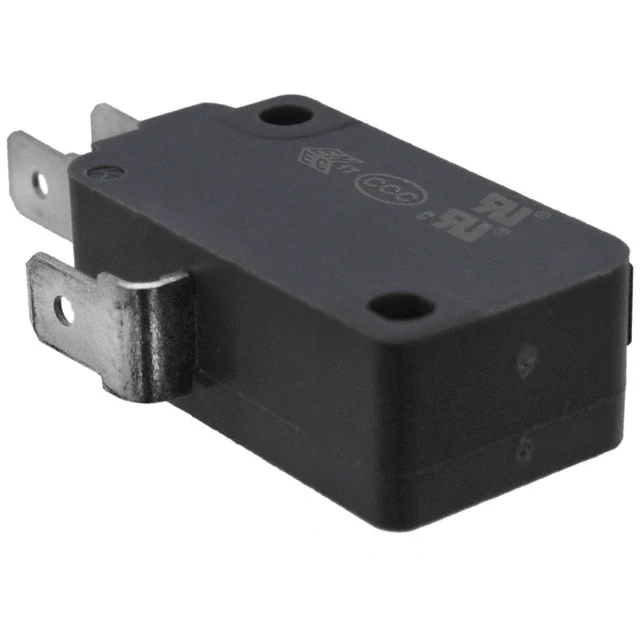

V15T16-EZ200-KSWITCH SNAP ACTION SPDT 16A 250V |
4,378 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 200gf | 50gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
ABJ151060SWITCH SNAP ACTION SPDT 2A 125V |
175 |
|
Datasheet |
ABJ | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP50 - Dust Protected | - | 200gf | 25gf | 0.217" (5.5mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
ZM50E10C01SWITCH SNAP ACTION SPDT 5A 125V |
999 |
|
Datasheet |
ZM | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 33gf | 8.000gf | 0.465" (11.8mm) | 0.157" (4.0mm) | 0.032" (0.81mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
V7-1C17E9SWITCH SNAP ACTION SPDT 15A 125V |
2,960 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 150gf | 25gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

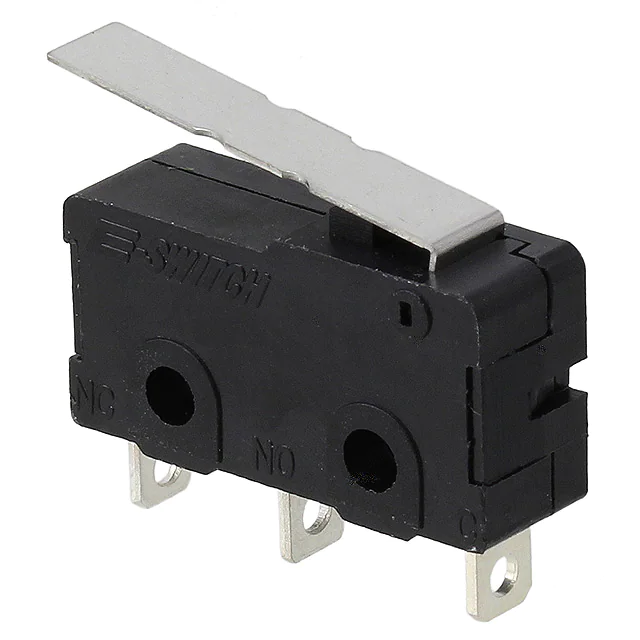

MS085R102F050S1ASWITCH SNAP ACT SPDT 0.4VA 20V |
330 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 50gf | 20gf | 0.358" (9.1mm) | 0.150" (3.8mm) | - | - | -25°C ~ 85°C |
|
|
D3V-012-3C23SWITCH SNP ACT SPST-NO 0.1A 125V |
190 |
|
Datasheet |
D3V | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 30gf | - | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
|
CF-DA-1CN-1SWITCH DETECTOR SPST-NO 0.1A 30V |
1,735 |
|
Datasheet |
CF-DA | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Angled Toggle (Detector) | Panel Mount, Snap-In | Connector | - | - | 200 ~ 400gf | - | - | 0.110" (2.8mm) | - | - | -25°C ~ 85°C |
