Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS-5GL111-2SWITCH SNAP ACT SPST-NC 5A 125V |
494 |
|
Datasheet |
SS | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 40gf | 3.059gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
AV464461SWITCH SNAP ACTION SPDT 0.1A 30V |
204 |
|
Datasheet |
AV4 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Left Side | 29gf | - | 0.240" (6.1mm) | 0.087" (2.2mm) | 0.027" (0.7mm) | 0.011" (0.3mm) | -25°C ~ 80°C |
|
SS-5GL111-3SWITCH SNAP ACT SPST-NO 5A 125V |
154 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 40gf | 3.059gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
AV4624SWITCH SNAP ACTION SPDT 0.5A 30V |
4,151 |
|
Datasheet |
AV4 | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Left Side | 25gf | - | 0.228" (5.8mm) | 0.094" (2.4mm) | 0.027" (0.7mm) | 0.015" (0.4mm) | -25°C ~ 80°C |
|

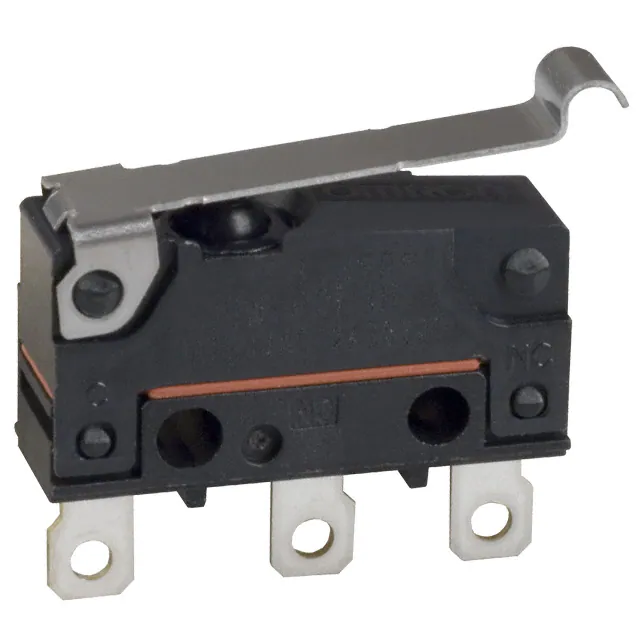

D2SW-P2L3HSWITCH SNAP ACTION SPDT 2A 250V |
1,735 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
SS-01-E-3SWITCH SNP ACT SPST-NO 0.1A 125V |
302 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 25gf | 2.039gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
D3SH-A0RSWITCH DETECT SPST-NO 0.001A 5V |
2,505 |
|
Datasheet |
D3SH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Right Operating Lever | 31gf | - | 0.197" (5.0mm) | - | - | - | -25°C ~ 85°C |
|
D3SH-B1L1SWITCH DETECT SPST-NC 0.001A 5V |
793 |
|
Datasheet |
D3SH | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide, Left Operating Lever | 24gf | - | 0.213" (5.4mm) | - | - | - | -25°C ~ 85°C |
|
D3SH-B1R1SWITCH DETECT SPST-NC 0.001A 5V |
494 |
|
Datasheet |
D3SH | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide, Right Operating Lever | 24gf | - | 0.213" (5.4mm) | - | - | - | -25°C ~ 85°C |
|
D3SH-A0LSWITCH DETECT SPST-NO 0.001A 5V |
329 |
|
Datasheet |
D3SH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Left Operating Lever | 31gf | - | 0.197" (5.0mm) | - | - | - | -25°C ~ 85°C |
|
|
D3SH-B0RSWITCH DETECT SPST-NC 0.001A 5V |
155 |
|
Datasheet |
D3SH | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Right Operating Lever | 31gf | - | 0.197" (5.0mm) | - | - | - | -25°C ~ 85°C |
|
VM3CQF0802L02SWITCH LIMIT SPDT 16A 125V |
119 |
|
Datasheet |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 40gf | 20gf | 0.697" (17.7mm) | 0.122" (3.1mm) | 0.027" (0.7mm) | 0.090" (2.3mm) | -40°C ~ 120°C |
|
|
D2GW-A02HSEALED SWITCH PCB PIN PLUNGER |
604 |
|
- |
D2GW | Tray | Active | SPST-NC | On-Mom | 10mA (DC) | - | 13.5 V | Round (Pin Plunger) | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 122gf | 10gf | 0.315" (8.0mm) | - | 0.010" (0.25mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
AVT344411613SWITCH SNAP ACT SPDT 0.1A 125V |
547 |
|
Datasheet |
AVT3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 35gf | 3.059gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D2F-L3-DSWITCH SNAP ACTION SPDT 3A 125V |
8,778 |
|
Datasheet |
D2F | Tray | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 80gf | 5.099gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
VM3CQF0801L03SWITCH LIMIT SPDT 16A 125V |
177 |
|
Datasheet |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 35gf | 18gf | 0.551" (14.0mm) | 0.131" (3.3mm) | 0.025" (0.6mm) | 0.090" (2.3mm) | -40°C ~ 120°C |
|
SS-5-FTSWITCH SNAP ACTION SPDT 5A 125V |
3,478 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 4.079gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
D2F-FL-TSWITCH SNAP ACTION SPDT 1A 125V |
964 |
|
Datasheet |
D2F | Tray | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 75gf | 2.039gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
V15H22-CZ100A05-KSWITCH SNAP ACTION SPDT 22A 250V |
236 |
|
Datasheet |
V15 | Tray | Active | SPDT | On-Mom | 22A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 120gf | 20gf | 0.812" (20.6mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 150°C |
|
D3V-166-1A4SWITCH SNAP ACTION SPDT 16A 250V |
1,375 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
