Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V19T16-EZ100SWITCH SNAP ACTION SPDT 16A 125V |
796 |
|
Datasheet |
V19 | Box | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 125°C |
|
V19S05-HZ015SWITCH SNAP ACTION SPDT 5A 125V |
770 |
|
Datasheet |
V19 | Box | Active | SPDT | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 15gf | 4.000gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
AVM35059-ASWITCH SNAP ACTION SPDT 5A 125V |
109 |
|
Datasheet |
AVM3 | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
SS-01GLPDSWITCH SNAP ACT SPDT 0.1A 125V |
125 |
|
Datasheet |
SS-P | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 51gf | 5.099gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
AV444461SWITCH SNAP ACTION SPDT 0.1A 30V |
10,487 |
|
Datasheet |
AV4 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 29gf | - | 0.240" (6.1mm) | 0.087" (2.2mm) | 0.027" (0.7mm) | 0.011" (0.3mm) | -25°C ~ 80°C |
|
D2F-FL2-TSWITCH SNAP ACTION SPDT 1A 125V |
1,649 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 75gf | 2.039gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
D2F-01F-DSWITCH SNAP ACTION SPDT 0.1A 30V |
944 |
|
Datasheet |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 75gf | 5.099gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
.jpg)
|
D3V-16G-2C26-KSWITCH SNAP ACT SPST-NC 16A 250V |
284 |
|
Datasheet |
D3V | Bulk | Active | SPST-NC | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | - | - | - | - | - | - | -25°C ~ 105°C |
|
D3SH-A1LSWITCH DETECT SPST-NO 0.001A 5V |
1,154 |
|
Datasheet |
D3SH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide, Left Operating Lever | 31gf | - | 0.197" (5.0mm) | - | - | - | -25°C ~ 85°C |
|
VM3AQF1802L07SWITCH LIMIT SPST-NO 16A 125V |
224 |
|
Datasheet |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 40gf | 20gf | 0.445" (11.3mm) | 0.303" (7.7mm) | 0.075" (1.9mm) | 0.278" (7.1mm) | -40°C ~ 120°C |
|
VM3AQF1801L07SWITCH LIMIT SPST-NO 16A 125V |
162 |
|
Datasheet |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 40gf | 20gf | 0.445" (11.3mm) | 0.303" (7.7mm) | 0.075" (1.9mm) | 0.278" (7.1mm) | -40°C ~ 120°C |
|
JJAV0UJ253NONMRTRSWITCH DETECT SPST-NO 0.001A 5V |
2,189 |
|
Datasheet |
JJA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 50gf | - | 0.087" (2.2mm) | 0.013" (0.33mm) | - | - | -10°C ~ 60°C |
|
D3SK-A1RSWITCH DETECT SPST-NO 0.001A 5V |
1,860 |
|
Datasheet |
D3SK | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Board Guide, Right Operating Lever | 41gf | - | 0.185" (4.7mm) | - | - | - | -25°C ~ 85°C |
|
SS-5GL-3DSWITCH SNAP ACT SPST-NO 5A 125V |
152 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
SS-01GL111-3DSWITCH SNP ACT SPST-NO 0.1A 125V |
500 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 40gf | 3.059gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
SSG-5HSWITCH SNAP ACTION SPDT 5A 125V |
322 |
|
Datasheet |
SSG | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 153gf | 25gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 125°C |
|

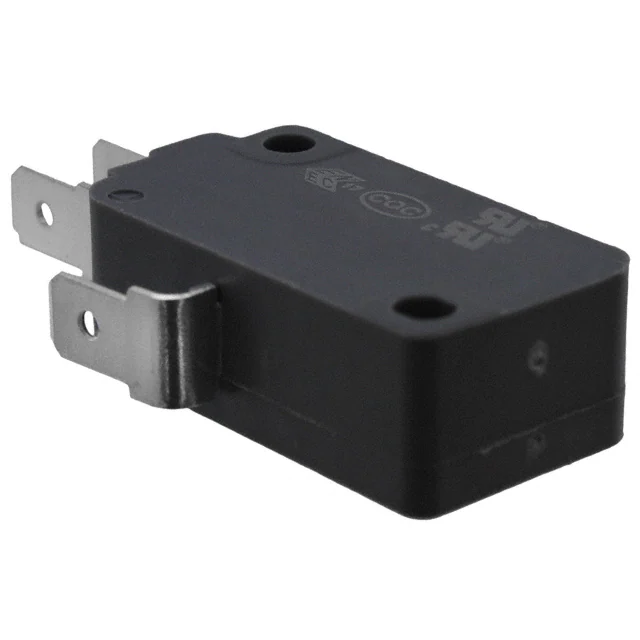

V15T16-EZ100-KSWITCH SNAP ACTION SPDT 16A 250V |
3,258 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
VM3CQF1801L00SWITCH LIMIT SPDT 16A 125V |
203 |
|
Datasheet |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 180gf | 90gf | 0.562" (14.3mm) | 0.055" (1.4mm) | 0.016" (0.4mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
|
SS-5GL-3TSWITCH SNAP ACT SPST-NO 5A 125V |
7,177 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D3V-014-1C23SWITCH SNAP ACT SPDT 0.1A 125V |
506 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 30gf | - | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
