Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABJ151040SWITCH SNAP ACTION SPDT 1A 125V |
830 |
|
Datasheet |
ABJ | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP50 - Dust Protected | - | 125gf | 15gf | 0.217" (5.5mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
VM3CQF0801L07SWITCH LIMIT SPDT 16A 125V |
201 |
|
Datasheet |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 18gf | 10gf | 0.445" (11.3mm) | 0.303" (7.7mm) | 0.075" (1.9mm) | 0.278" (7.1mm) | -40°C ~ 120°C |
|

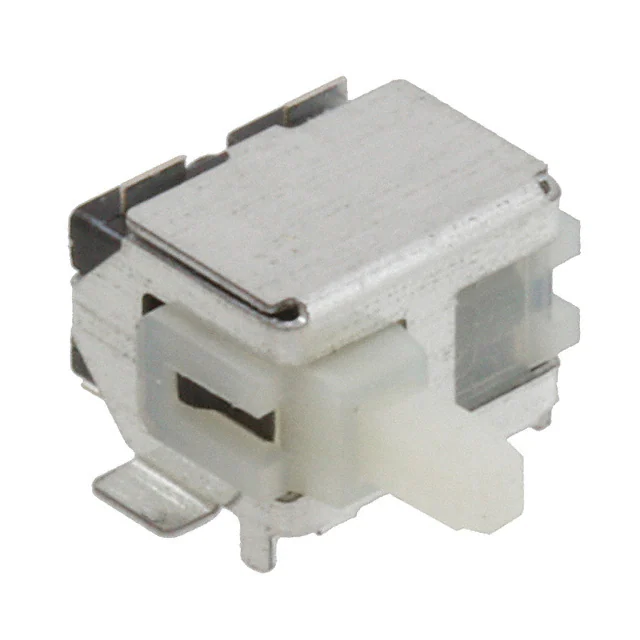

ESE-11MH4SWITCH DETECTOR SPST-NO 0.01A 5V |
2,200 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount, Right Angle | Gull Wing | - | - | 35gf | - | 0.132" (3.35mm) | - | - | - | -10°C ~ 70°C |
|
MDS6500AL02SLSWITCH SNAP ACT SPDT 300MA 30V |
3,100 |
|
Datasheet |
MDS | Tape & Reel (TR) | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Surface Mount, Right Angle | Gull Wing | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|
SS-01GL13-F-3TSWITCH SNP ACT SPST-NO 0.1A 125V |
238 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 16gf | 2.039gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

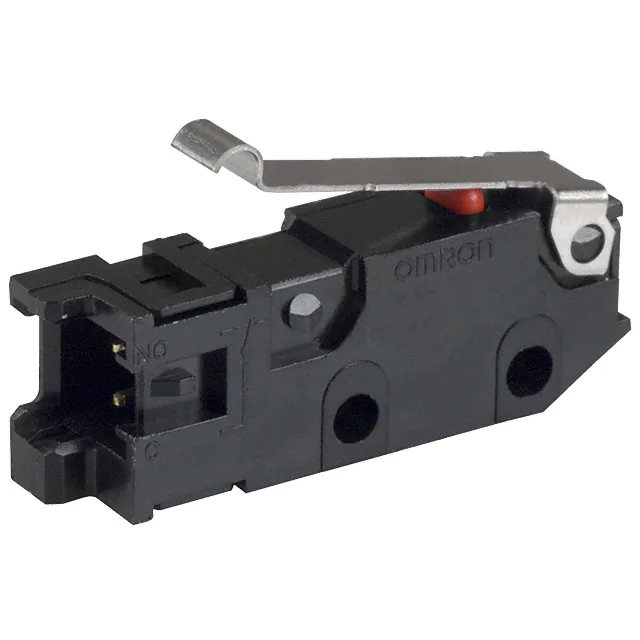

D3M-01K3SWITCH SNAP ACT SPST-NC 0.1A 30V |
207 |
|
Datasheet |
D3M | Tray | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Connector | IP40 | - | 51gf | 6.118gf | 0.480" (12.2mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

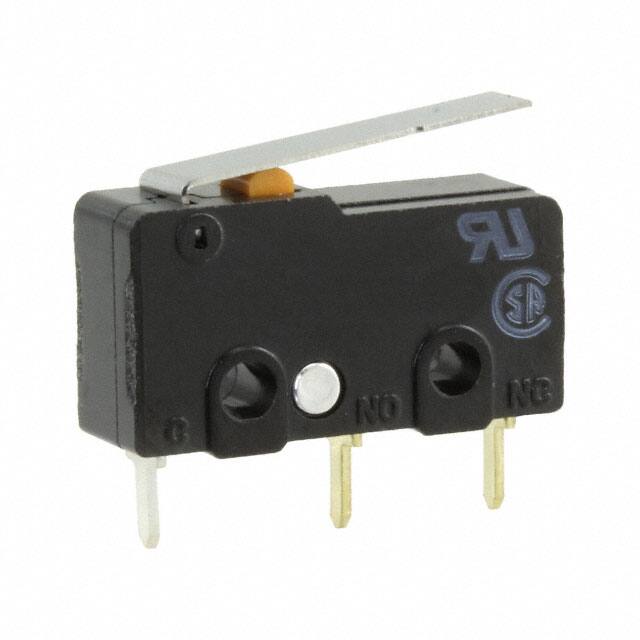

SS-5GL-FDSWITCH SNAP ACTION SPDT 5A 125V |
461 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | IP40 | - | 16gf | 2.039gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D2F-FL2-D3SWITCH SNAP ACTION SPDT 1A 125V |
2,738 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | 75gf | 2.039gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
D2GW-A02DSEALED SWITCH PCB PIN PLUNGER |
500 |
|
- |
D2GW | Tray | Active | SPST-NC | On-Mom | 10mA (DC) | - | 13.5 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 122gf | 10gf | 0.315" (8.0mm) | - | 0.010" (0.25mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
D2F01FL30D3SWITCH SNAP ACTION SPDT 0.1A 30V |
398 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 31gf | 2.039gf | 0.374" (9.5mm) | - | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|

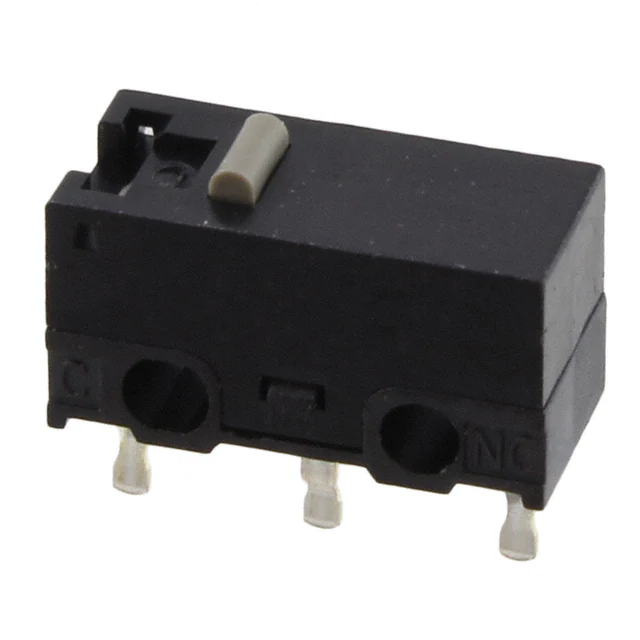

D2F-01-TSWITCH SNAP ACTION SPDT 0.1A 30V |
659 |
|
Datasheet |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
D2F-01L-DSWITCH SNAP ACTION SPDT 0.1A 30V |
1,659 |
|
Datasheet |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 80gf | 5.099gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
463091370402SWITCH LIMIT SPDT 3A 125V |
758 |
|
Datasheet |
WS-MITV | Tray | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|

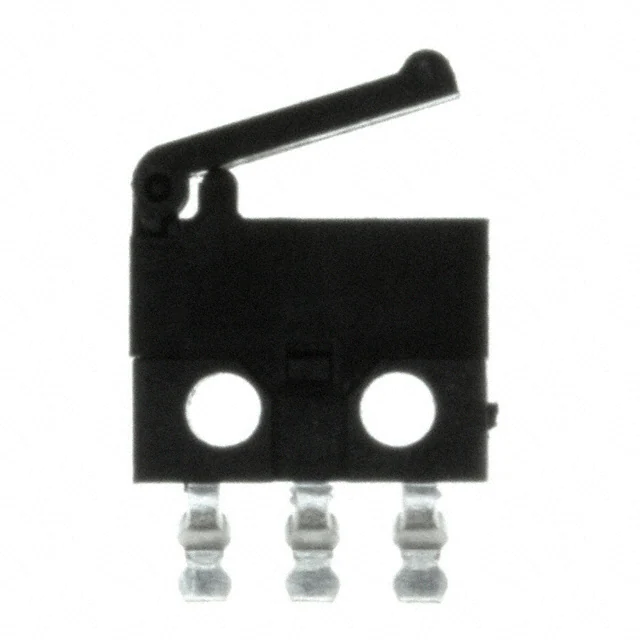

MDS6500AL02SRSWITCH SNAP ACT SPDT 300MA 30V |
3,338 |
|
Datasheet |
MDS | Tape & Reel (TR) | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Surface Mount, Right Angle | Gull Wing | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|
SS-01GL111-2TSWITCH SNP ACT SPST-NC 0.1A 125V |
744 |
|
Datasheet |
SS | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 40gf | 3.059gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
SS-01GL13-E-3TSWITCH SNP ACT SPST-NO 0.1A 125V |
130 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 8.158gf | 1.020gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D3V-162-2C5SWITCH SNAP ACT SPST-NC 16A 250V |
690 |
|
Datasheet |
D3V | Bulk | Active | SPST-NC | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
SS-5GL2DSWITCH SNAP ACTION SPDT 5A 125V |
1,159 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Through Hole | PC Pin | IP40 | - | 50gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
ZM10E10F01SWITCH SNAP ACT SPDT 100MA 125V |
1,172 |
|
Datasheet |
ZM | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 35gf | 8.000gf | 0.689" (17.5mm) | 0.150" (3.8mm) | 0.030" (0.76mm) | 0.030" (0.76mm) | -40°C ~ 120°C |
|
D2HW-BR221DRSWITCH SNAP ACT SPDT 0.1A 125V |
3,513 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof | - | 50gf | 3.059gf | 0.366" (9.3mm) | - | 0.031" (0.80mm) | 0.100" (2.5mm) | -40°C ~ 85°C |
