Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

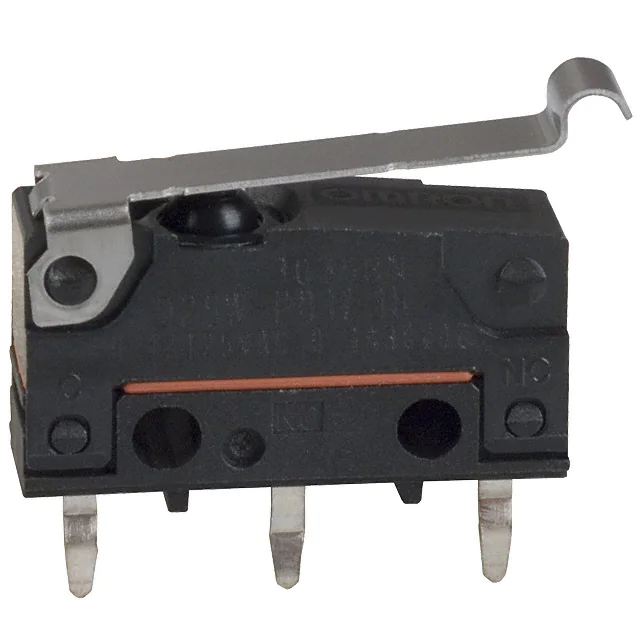

D2SW-P01L3DSWITCH SNAP ACT SPDT 0.1A 125V |
438 |
|
Datasheet |
D2SW-P | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
SS-01GL2-2TSWITCH SNP ACT SPST-NC 0.1A 125V |
415 |
|
Datasheet |
SS | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

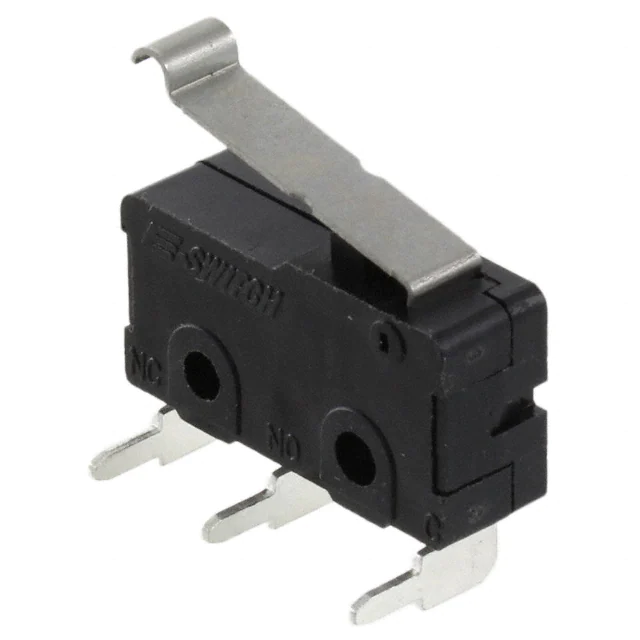

MS085R104F045V1ASWITCH SNAP ACT SPDT 0.4VA 20V |
2,216 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 45gf | 20gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|

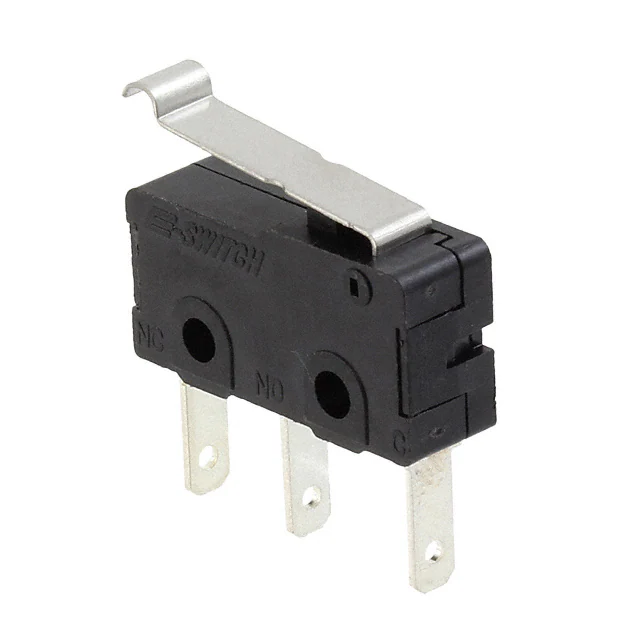

MS085R104F035C1ASWITCH SNAP ACT SPDT 0.4VA 20V |
460 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 35gf | 20gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|
D2F-01FL3-TSWITCH SNAP ACTION SPDT 0.1A 30V |
748 |
|
Datasheet |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 40gf | 2.039gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|

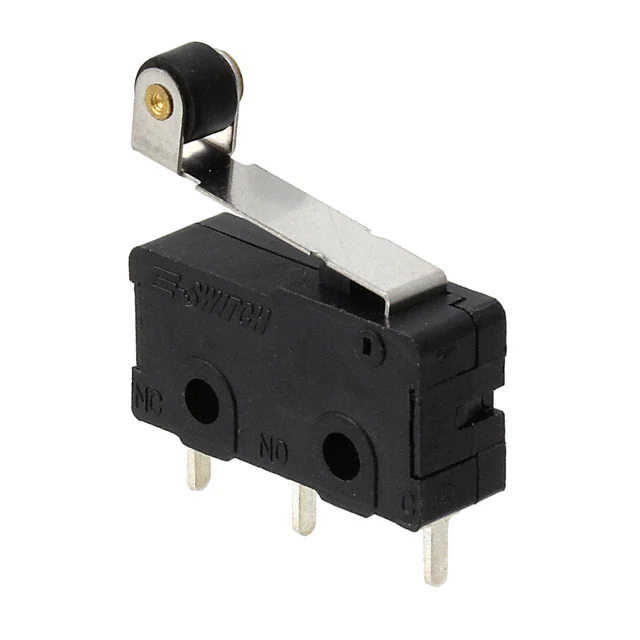

MS085R105F030P1ASWITCH SNAP ACT SPDT 0.4VA 20V |
145 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Roller | Through Hole | PC Pin | - | - | 30gf | 12gf | 0.587" (14.9mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|
SS-5D2SWITCH SNAP ACTION SPDT 5A 125V |
32,728 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP40 | - | 150gf | 25gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
ASQ17410SWITCH SNAP ACTION SPDT 0.1A 30V |
147 |
|
Datasheet |
ASQ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | Board Guide | 153gf | - | 0.330" (8.4mm) | - | - | 0.087" (2.2mm) | -40°C ~ 85°C |
|
D3M-01L1SWITCH SNAP ACT SPST-NC 0.1A 30V |
463 |
|
Datasheet |
D3M | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Connector | IP40 | - | 102gf | 10gf | 0.362" (9.2mm) | - | 0.025" (0.6mm) | 0.026" (0.7mm) | -25°C ~ 85°C |
|

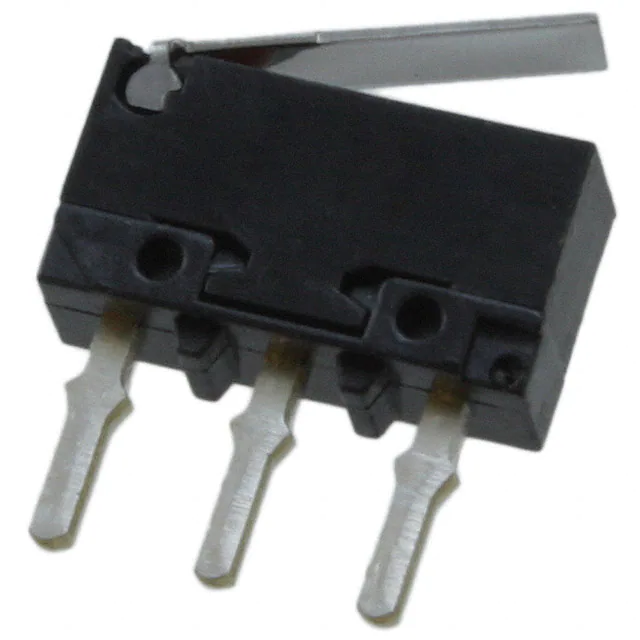

AV442461SWITCH SNAP ACTION SPDT 0.1A 30V |
627 |
|
Datasheet |
AV4 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 25gf | - | 0.228" (5.8mm) | 0.094" (2.4mm) | 0.027" (0.7mm) | 0.015" (0.4mm) | -25°C ~ 80°C |
|
SS-01GL-E-3TSWITCH SNP ACT SPST-NO 0.1A 125V |
348 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 8.158gf | 1.020gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D2F-01L2-D3SWITCH SNAP ACTION SPDT 0.1A 30V |
10,406 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | 80gf | 5.099gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|

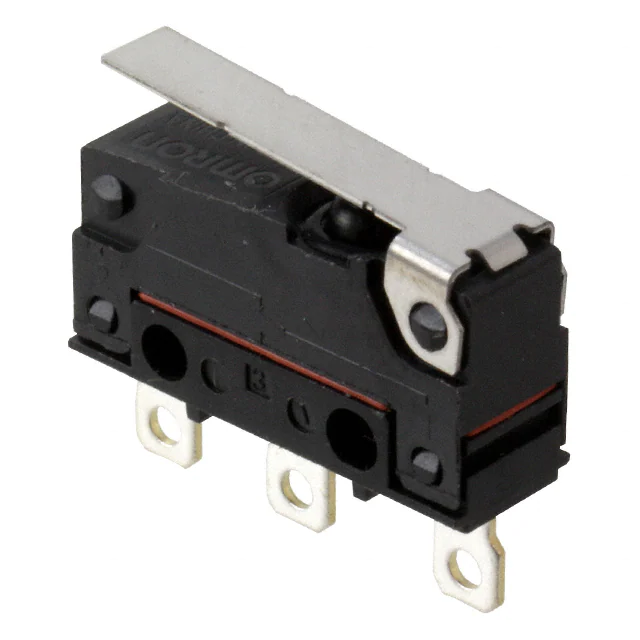

D2SW-P01L1HSWITCH SNAP ACT SPDT 0.1A 125V |
451 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
SS-01GL1731SWITCH SNAP ACTION SUBMINIATURE |
235 |
|
Datasheet |
SS | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D2SW-P01L1TSWITCH SNAP ACT SPDT 0.1A 125V |
201 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
D3M-01-3-5SWITCH SNAP ACT SPST-NO 0.1A 30V |
420 |
|
Datasheet |
D3M | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Connector | IP40 | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
V-15-3C26SWITCH SNAP ACT SPST-NO 15A 250V |
165 |
|
Datasheet |
V | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 400gf | 80gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
ZX10E10E01SWITCH SNAP ACTION SPDT 0.1A 48V |
1,233 |
|
Datasheet |
ZX | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 48 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 55gf | 8.000gf | 0.437" (11.1mm) | 0.150" (3.8mm) | 0.050" (1.3mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
SS-10D-TSWITCH SNAP ACTION SPDT 10A 250V |
252 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 150gf | 25gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
ZM10B70F01SWITCH SNAP ACT SPDT 0.1A 125V |
833 |
|
Datasheet |
ZM | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 19gf | 2.000gf | - | 0.150" (3.8mm) | 0.031" (0.8mm) | 0.031" (0.8mm) | -40°C ~ 125°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
