Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2F-01L-TSWITCH SNAP ACTION SPDT 0.1A 30V |
986 |
|
Datasheet |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 80gf | 5.099gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
SM3AQF0804L01SWITCH LIMIT SPST-NO 5A 125V |
325 |
|
Datasheet |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 20gf | 10gf | 0.413" (10.5mm) | 0.157" (4.0mm) | 0.035" (0.9mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
AH168061-ASWITCH SNAP ACT SPDT 0.1A 125V |
450 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 74gf | 10gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
MS0850501F045S1ASWITCH SNAP ACTION SPDT 5A 125V |
168 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 45gf | 20gf | 0.358" (9.1mm) | 0.140" (3.6mm) | - | - | -25°C ~ 85°C |
|
MS0850503F040S1ASWITCH SNAP ACTION SPDT 5A 125V |
159 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 40gf | 20gf | 0.374" (9.5mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|

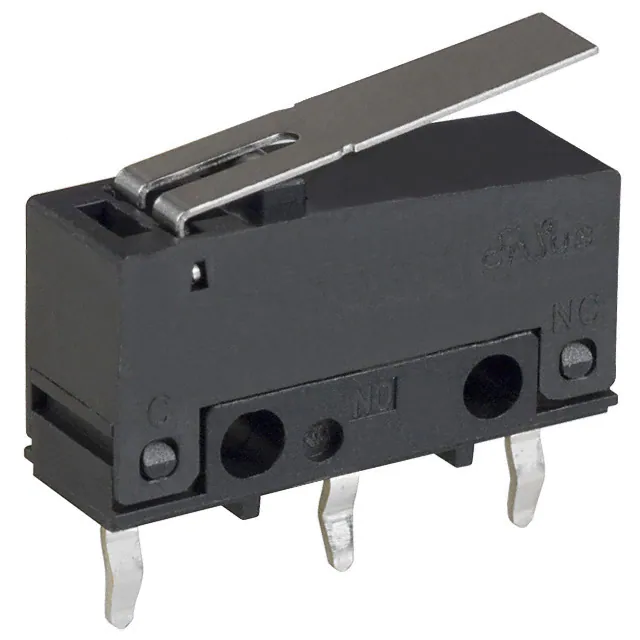

SS-3GLPDSWITCH SNAP ACTION SPDT 3A 125V |
619 |
|
Datasheet |
SS-P | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 51gf | 5.099gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
D2F-01FL-TSWITCH SNAP ACTION SPDT 0.1A 30V |
1,986 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 25gf | 2.039gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
SAJ13XXBL0N88SDTPTQSWITCH SNAP ACTION SPDT 3A 125V |
960 |
|
Datasheet |
SAJ1 | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 26gf | 2.000gf | 0.378" (9.6mm) | 0.087" (2.2mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 75°C |
|
ZMA00A150S06PCSWITCH SNAP ACT SPDT 100MA 125V |
327 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 49gf | 11gf | 0.420" (10.7mm) | 0.055" (1.4mm) | - | 0.049" (1.25mm) | -40°C ~ 85°C |
|
D2F01L30D3SWITCH SNAP ACTION SPDT 0.1A 30V |
247 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 55gf | 4.079gf | 0.374" (9.5mm) | - | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
SS-5GL-3SWITCH SNAP ACT SPST-NO 5A 125V |
3,994 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
SS-5GL-F-3SWITCH SNAP ACT SPST-NO 5A 125V |
3,355 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 16gf | 2.039gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
SM3CQF0801L00SWITCH LIMIT SPDT 5A 125V |
190 |
|
Datasheet |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 80gf | 40gf | 0.413" (10.5mm) | 0.041" (1.05mm) | 0.002" (0.05mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|
SM3AQF0801L03SWITCH LIMIT SPST-NO 5A 125V |
107 |
|
Datasheet |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 18gf | 5.000gf | 0.646" (16.4mm) | 0.161" (4.1mm) | 0.031" (0.80mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|

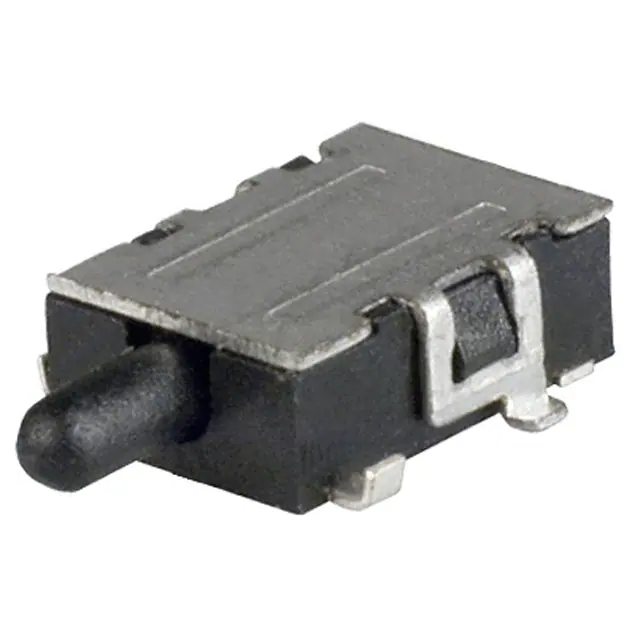

900AGQSWITCH DETECTOR SPST-NO 0.1A 50V |
1,760 |
|
Datasheet |
900 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 50 V | Overtravel Plunger | Surface Mount | Gull Wing | - | - | 50gf | - | - | 0.014" (0.35mm) | - | - | -25°C ~ 85°C |
|
SAJ13XXRHLN88SDTPTQSWITCH SNAP ACTION SPDT 3A 125V |
590 |
|
Datasheet |
SAJ1 | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 40gf | 2.000gf | 0.400" (10.2mm) | 0.150" (3.8mm) | 0.018" (0.45mm) | 0.020" (0.5mm) | -25°C ~ 75°C |
|

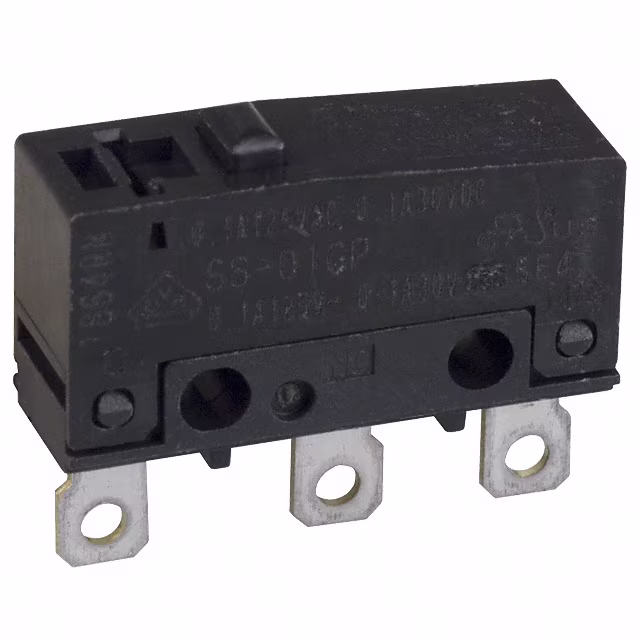

SS-01GPSWITCH SNAP ACT SPDT 0.1A 125V |
960 |
|
Datasheet |
SS-P | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 153gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
SSG-5L1TSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
SSG | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 61gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 125°C |
|
MS0850504F035P1ASWITCH SNAP ACTION SPDT 5A 125V |
1,050 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 35gf | 20gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|
AH1684619-ASWITCH SNAP ACT SPDT 0.1A 125V |
822 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 26gf | 2.039gf | 0.374" (9.5mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
