Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

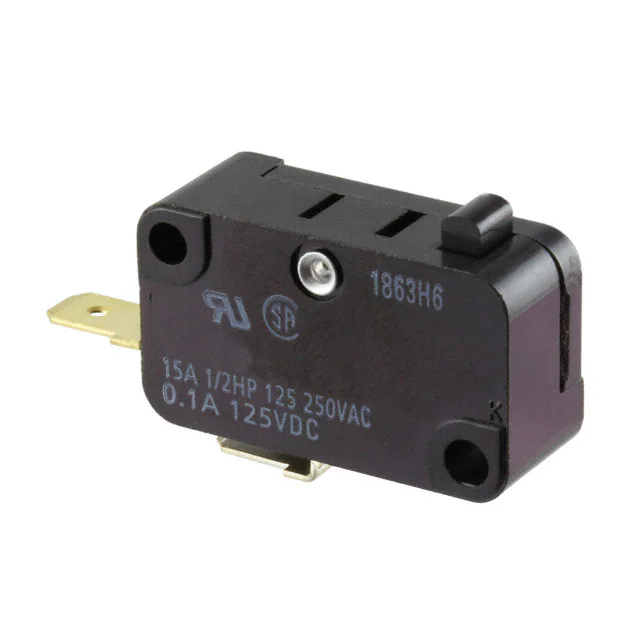

V-15G-3C25-KSWITCH SNAP ACT SPST-NO 15A 250V |
1,403 |
|
Datasheet |
V | Tray | Active | SPST-NO | Off-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
D2F-FL-A1SWITCH SNAP ACTION SPDT 1A 125V |
9,167 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Left Side | 75gf | 2.039gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|

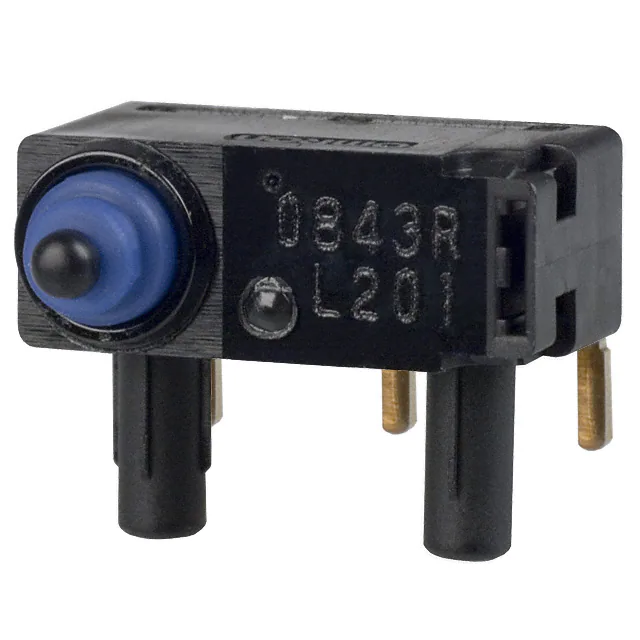

D2HW-BL201DLSWITCH SNAP ACT SPDT 0.1A 125V |
1,832 |
|
Datasheet |
D2HW | Tray | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|

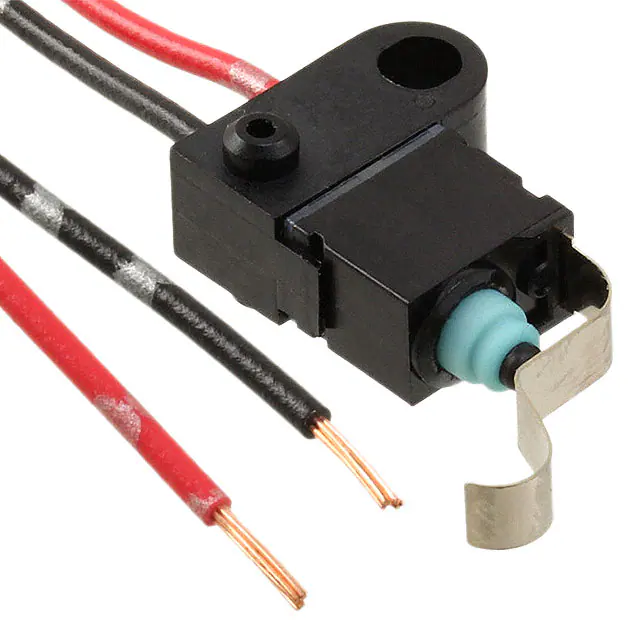

ASQM11628SWITCH SNP ACT SPST-NC 0.05A 16V |
925 |
|
Datasheet |
ASQM1 | Bulk | Active | SPST-NC | On-Mom | 50mA (DC) | - | 16 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.685" (17.4mm) | - | - | 0.081" (2.05mm) | -40°C ~ 85°C |
|
V-15G3-1C25-KSWITCH SNAP ACTION SPDT 15A 250V |
5,376 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 70gf | 6.118gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.079" (2.0mm) | -25°C ~ 80°C |
.jpg)
|
D3V-16G-2C25-KSWITCH SNAP ACT SPST-NC 16A 250V |
89 |
|
Datasheet |
D3V | Bulk | Active | SPST-NC | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
VX-5-1C22SWITCH SNAP ACTION SPDT 5A 125V |
191 |
|
Datasheet |
VX | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 25gf | 3.059gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
V7-5F17D8SWITCH SNAP ACTION SPDT 3A 125V |
2,179 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 15gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
D2HW-BL221HSWITCH SNAP ACT SPDT 0.1A 125V |
235 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | Support Posts | 50gf | 3.059gf | 0.366" (9.3mm) | - | 0.031" (0.8mm) | 0.098" (2.5mm) | -40°C ~ 85°C |
|
VX-55-1C23SWITCH SNAP ACTION SPDT 5A 125V |
3,078 |
|
Datasheet |
VX | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 4.079gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
V7-2B17D8SWITCH SNAP ACTION SPDT 11A 125V |
1,125 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 10gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
D3V-16G5-1C25-KSWITCH SNAP ACTION SPDT 16A 250V |
135 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
V7-1Z10E9-263SWITCH SNAP ACTION SPDT 25A 277V |
55,332 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 25A (AC) | 277 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 136gf | 7.000gf | 0.728" (18.49mm) | 0.114" (2.9mm) | 0.025" (0.6mm) | 0.064" (1.63mm) | - |
|
SS-01GL2TSWITCH SNAP ACT SPDT 0.1A 125V |
862 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
V-15-3C6-KSWITCH SNAP ACT SPST-NO 15A 250V |
203 |
|
Datasheet |
V | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 400gf | 80gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
|
D3V-16-1A5SWITCH SNAP ACTION SPDT 16A 250V |
1,386 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|

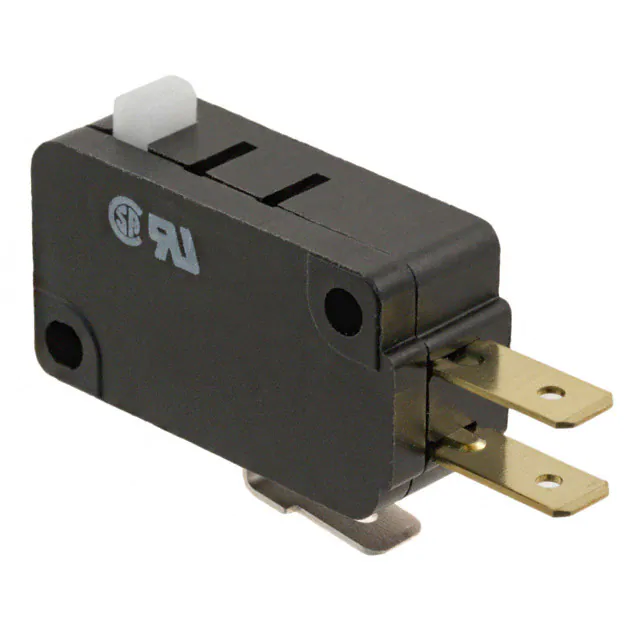

V7-1B17D8SWITCH SNAP ACTION SPDT 11A 125V |
720 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 25gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

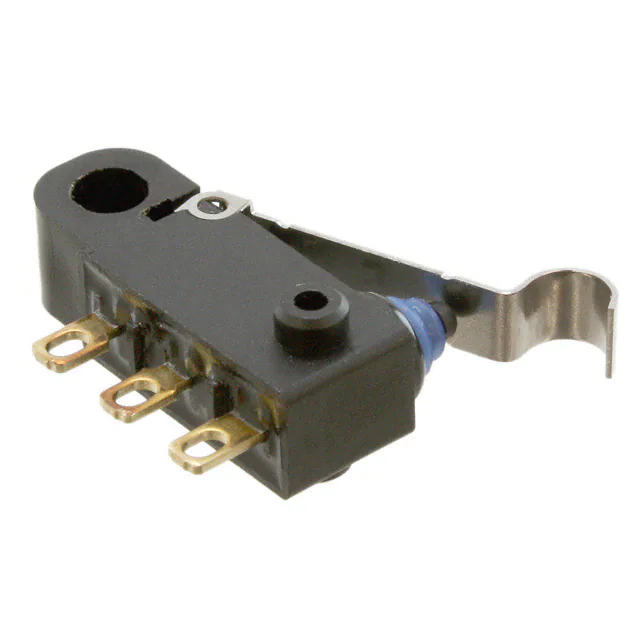

D2HW-C231HSWITCH SNAP ACT SPDT 0.1A 125V |
429 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 66gf | 5.099gf | 0.440" (11.2mm) | - | 0.020" (0.5mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|
VX-5-1A2SWITCH SNAP ACTION SPDT 5A 125V |
116 |
|
Datasheet |
VX | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 25gf | 3.059gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
V15T16-CZ200SWITCH SNAP ACTION SPDT 16A 250V |
769 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 200gf | 50gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
