Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2SW1004RSWITCH SNAP ACTION N.O./N.C. SPD |
1,577 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 60gf | 6.000gf | 0.571" (14.50mm) | - | 0.031" (0.80mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|

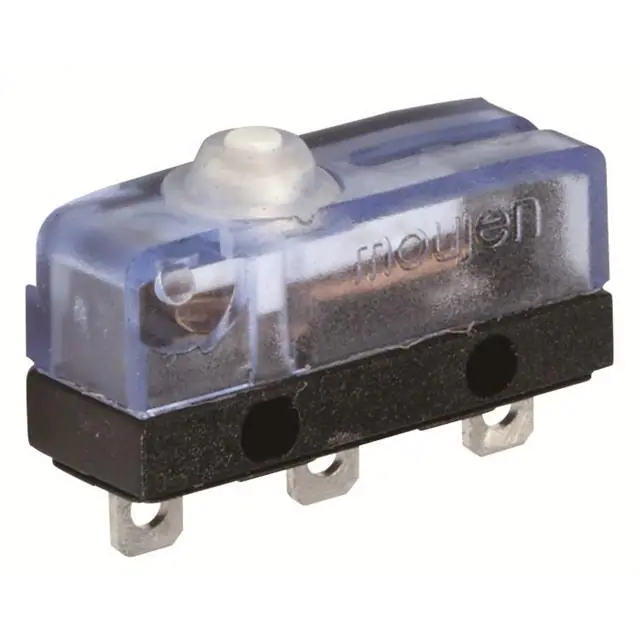

MZ-7512SWITCH SNAP ACT SPDT 0.75A 240V |
700 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP60 - Dust Tight | - | 171gf | 145gf | - | 0.015" (0.4mm) | 0.012" (0.3mm) | 0.035" (0.9mm) | -25°C ~ 80°C |
|
|
MJG--MVS-3301--T2SPDT Positive Open Mini Switch |
5,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Screw Terminal | IP40 | Positive Opening | 220gf | 50gf | - | 0.060" (1.5mm) | 0.006" (0.15mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
MJG--MVS-3302--T2SPDT Positive Open Mini Switch |
5,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | Positive Opening | 220gf | 50gf | - | 0.063" (1.6mm) | 0.006" (0.15mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
MJG--MVS-3303--T2SPDT Positive Open Mini Switch |
5,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | Positive Opening | 140gf | 20gf | - | 0.150" (3.8mm) | 0.020" (0.5mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|

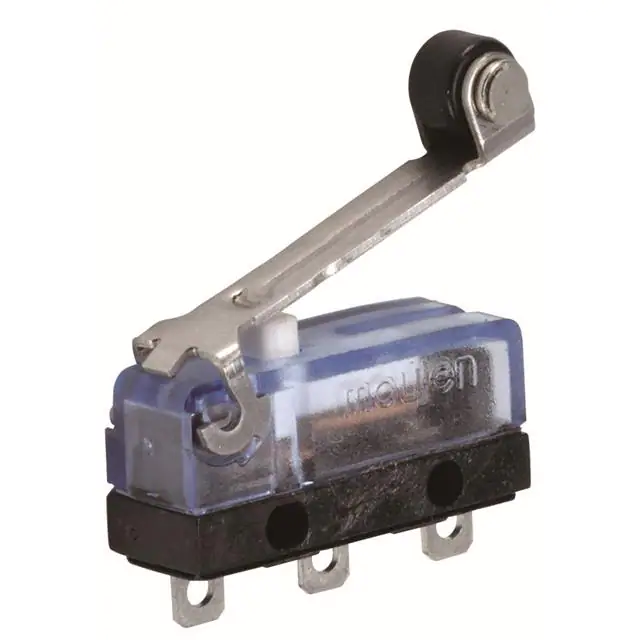

MZ-7911SWITCH SNAP ACT SPDT 0.75A 240V |
700 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 60gf | 31gf | - | 0.102" (2.6mm) | 0.050" (1.3mm) | 0.065" (1.7mm) | -25°C ~ 80°C |
|

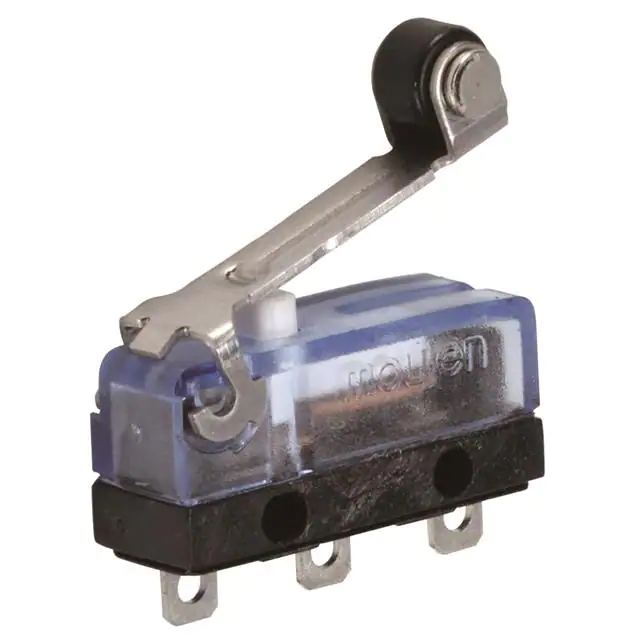

MZ-7811SWITCH SNAP ACT SPDT 0.75A 240V |
700 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 63gf | 36gf | - | 0.083" (2.1mm) | 0.039" (1.00mm) | 0.059" (1.5mm) | -25°C ~ 80°C |
|
|
D2SW1023EMINIATURE BASIC SWITCH |
2,750 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.80mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
E13-50HSWITCH SNAP ACTION SPDT 15A 125V |
2,612 |
|
Datasheet |
E13 | Bulk | Active | SPDT | On-Mom | 15A (AC), 2A (DC) | 125 V | 48 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 65gf | - | 0.280" (7.1mm) | 0.344" (8.7mm) | 0.140" (3.56mm) | 0.187" (4.75mm) | -40°C ~ 105°C |
|
|
MJG--MVS-3304--T2SPDT Positive Open Mini Switch |
5,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | Positive Opening | 220gf | 50gf | - | 0.051" (1.3mm) | 0.006" (0.15mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
MJG--MVS-3305--T2SPDT Positive Open Mini Switch |
5,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | Positive Opening | 140gf | 20gf | - | 0.100" (2.5mm) | 0.012" (0.3mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|

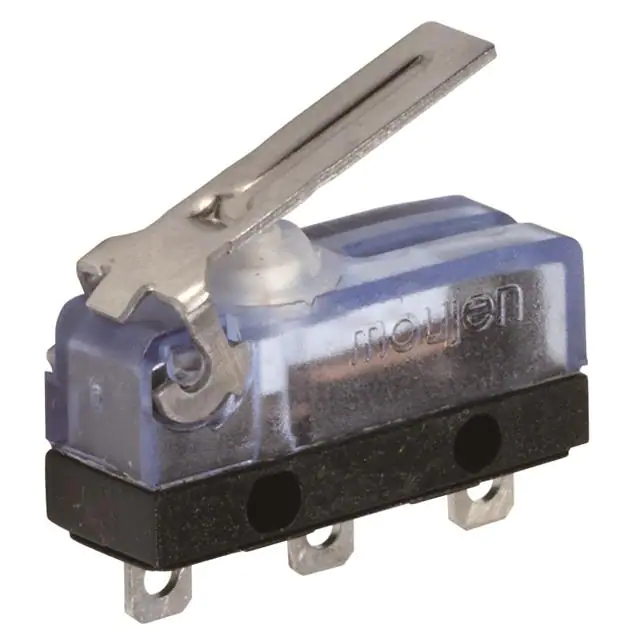

MZ-7612SWITCH SNAP ACT SPDT 0.75A 240V |
700 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP60 - Dust Tight | - | 64gf | 35gf | - | 0.040" (1.0mm) | 0.028" (0.7mm) | 0.118" (3.0mm) | -25°C ~ 80°C |
|
MZ-7012SWITCH SNAP ACT SPDT 0.75A 240V |
700 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP60 - Dust Tight | - | 60gf | 32gf | - | 0.043" (1.1mm) | 0.031" (0.8mm) | 0.150" (3.8mm) | -25°C ~ 80°C |
|

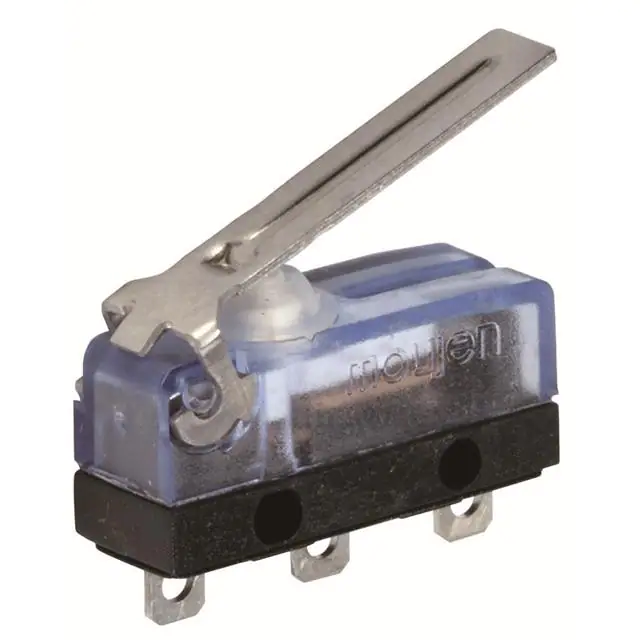

MZ-7712SWITCH SNAP ACT SPDT 0.75A 240V |
700 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP60 - Dust Tight | - | 67gf | 31gf | - | 0.063" (1.6mm) | 0.035" (0.9mm) | 0.138" (3.5mm) | -25°C ~ 80°C |
|
|
D3VM0453GSWITCH SNAP ACTION SPDT 11A 250V |
123 |
|
Datasheet |
D3V | Box | Active | SPDT | On-Mom | 11A (AC), 6A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.031" (0.80mm) | 0.063" (1.6mm) | -25°C ~ 105°C |
|
|
D2SW1201GAUTO SWITCHES MINI BASIC SWITCH |
717 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.331" (8.40mm) | 0.024" (0.6mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
D2SW1029DAUTO SWITCHES BASIC SWITCH |
361 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.331" (8.40mm) | 0.024" (0.6mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
MJG--MJ2-1300--T3SPDT Snap-Act Basic Switch |
50,000 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | - | 250gf | 114gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1300 PH--T3SPDT Snap-Act Basic Switch |
50,000 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | - | 250gf | 114gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -25°C ~ 80°C |
|
MZ-7812SWITCH SNAP ACT SPDT 0.75A 240V |
700 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP60 - Dust Tight | - | 73gf | 37gf | - | 0.035" (0.9mm) | 0.028" (0.7mm) | 0.106" (2.7mm) | -25°C ~ 80°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
