Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSM 0059FSWITCH SNAP ACT SPDT 0.1A 125V |
365 |
|
Datasheet |
SS | Box | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | - | 16gf | 2.039gf | 0.346" (8.80mm) | - | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|
|
MJG--MJ3-521106--T3SPDT Pos-Open 2-contact Switch |
10,000 |
|
- |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.4A (DC) | 250 V | 250 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 95gf | 82gf | - | 0.218" (5.5mm) | 0.025" (0.6mm) | 0.240" (6.1mm) | -25°C ~ 80°C |
|
|
MJG--MJ3-521107--T3SPDT Pos-Open 2-contact Switch |
10,000 |
|
Datasheet |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.4A (DC) | 250 V | 250 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 76gf | 58gf | - | 0.303" (7.7mm) | 0.035" (0.9mm) | 0.327" (8.3mm) | -25°C ~ 80°C |
|
|
MJG--MJ3-521108--T3SPDT Pos-Open 2-contact Switch |
10,000 |
|
- |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.4A (DC) | 250 V | 250 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 65gf | 50gf | - | 0.354" (9.0mm) | 0.045" (1.1mm) | 0.394" (10.0mm) | -25°C ~ 80°C |
|
|
MJG--MJ3-521112--T3SPDT Pos-Open 2-contact Switch |
10,000 |
|
- |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.4A (DC) | 250 V | 250 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 160gf | 135gf | - | 0.138" (3.5mm) | 0.016" (0.4mm) | 0.219" (5.6mm) | -25°C ~ 80°C |
|
|
MJG--MJ3-521101--T3SPDT Pos-Open 2-contact Switch |
10,000 |
|
- |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.4A (DC) | 250 V | 250 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 400gf | 300gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.060" (1.5mm) | -25°C ~ 80°C |
|

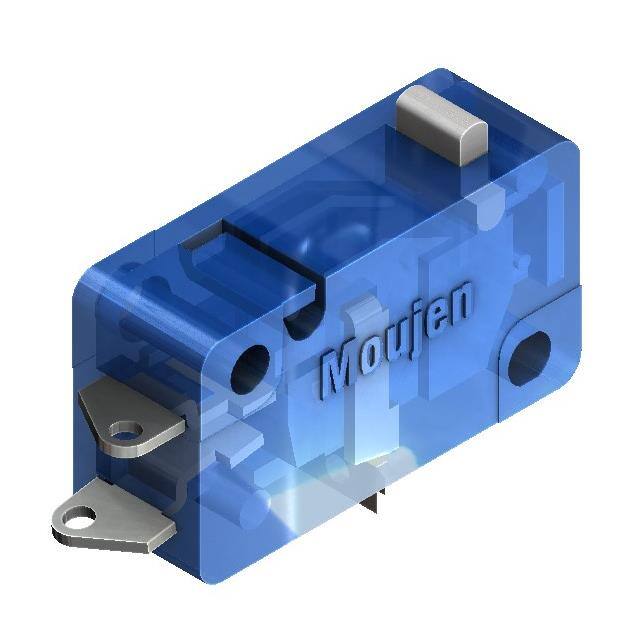

MVS-3400SWITCH SNAP ACTION SPDT 6A 250V |
950 |
|
Datasheet |
MVS | Retail Package | Active | SPDT | On-Mom | 6A (AC), 500mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | Positive Opening | 250gf | 50gf | - | 0.047" (1.2mm) | 0.005" (0.13mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
MJG--MJ3-521120--T3SPDT Pos-Open 2-contact Switch |
10,000 |
|
- |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.4A (DC) | 250 V | 250 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 109gf | 84gf | - | 0.209" (5.3mm) | 0.025" (0.6mm) | 0.224" (5.7mm) | -25°C ~ 80°C |
|
|
MJG--MJ3-521121--T3SPDT Pos-Open 2-contact Switch |
10,000 |
|
- |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.4A (DC) | 250 V | 250 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 76gf | 58gf | - | 0.303" (7.7mm) | 0.035" (0.9mm) | 0.350" (8.9mm) | -25°C ~ 80°C |
|
|
MJG--MJ3-521119--T3SPDT Pos-Open 2-contact Switch |
10,000 |
|
- |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.4A (DC) | 250 V | 250 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 166gf | 128gf | - | 0.138" (3.5mm) | 0.016" (0.4mm) | 0.178" (4.5mm) | -25°C ~ 80°C |
|
|
MJG--MJ3-521126--T3SPDT Pos-Open 2-contact Switch |
10,000 |
|
- |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.4A (DC) | 250 V | 250 V | Wire Lever | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 8.000gf | 4.000gf | - | 0.748" (19.0mm) | 0.090" (2.3mm) | 0.375" (9.5mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1706 PH--T3SPDT Snap-Act Basic Switch |
50,000 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | - | 120gf | 20gf | - | 0.236" (6.0mm) | 0.040" (1.0mm) | 0.118" (3.0mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1706--T3SPDT Snap-Act Basic Switch |
50,000 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | - | 120gf | 20gf | - | 0.236" (6.0mm) | 0.040" (1.0mm) | 0.118" (3.0mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1701--T3SPDT Snap-Act Basic Switch |
50,000 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | - | 70gf | 14gf | - | 0.394" (10.0mm) | 0.050" (1.27mm) | 0.219" (5.6mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1707--T3SPDT Snap-Act Basic Switch |
50,000 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | - | 90gf | 16gf | - | 0.354" (9.0mm) | 0.045" (1.15mm) | 0.190" (4.8mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1506 PH--T3SPDT Snap-Act Basic Switch |
50,000 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Screw Terminal | IP40 | - | 140gf | 20gf | - | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.185" (4.7mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1707 PH--T3SPDT Snap-Act Basic Switch |
50,000 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | - | 90gf | 16gf | - | 0.354" (9.0mm) | 0.045" (1.15mm) | 0.190" (4.8mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1701 PH--T3SPDT Snap-Act Basic Switch |
50,000 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | - | 70gf | 14gf | - | 0.394" (10.0mm) | 0.050" (1.27mm) | 0.219" (5.6mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1702--T3SPDT Snap-Act Basic Switch |
50,000 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | - | 120gf | 20gf | - | 0.310" (7.9mm) | 0.040" (1.0mm) | 0.118" (3.0mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1300 PH-20--T3SPDT Snap-Act Basic Switch |
50,000 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 20A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | - | 250gf | 114gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -25°C ~ 80°C |
