Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MJG--MVS-3405--T3SPDT Positive Open Mini Switch |
15,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | IP40 | Positive Opening | 140gf | 20gf | - | 0.100" (2.5mm) | 0.012" (0.3mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
|
MJG--MVS-3404--T3SPDT Positive Open Mini Switch |
15,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | IP40 | Positive Opening | 220gf | 50gf | - | 0.051" (1.3mm) | 0.006" (0.15mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
MJG--MVS-3205--T3SPDT Positive Open Mini Switch |
15,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | Positive Opening | 140gf | 20gf | - | 0.100" (2.5mm) | 0.012" (0.3mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
|
MJG--MVS-3204--T3SPDT Positive Open Mini Switch |
15,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | Positive Opening | 220gf | 50gf | - | 0.051" (1.3mm) | 0.006" (0.15mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
V15M0036BSWITCH SNAP ACTION SPDT 15A 250V |
21,098 |
|
Datasheet |
V | - | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -25°C ~ 80°C |
|
|
SSM 0006EBASIC SWITCH |
415 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 25gf | 2.039gf | 0.331" (8.40mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
|
SS0M0008EBASIC SWITCH |
140 |
|
Datasheet |
SS | - | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 150gf | 25gf | 0.331" (8.40mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
MJG--MV-3002A20--T220A SPDT Mini Snap Switch |
24,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 250gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -20°C ~ 80°C |
|
|
MJG--MV-3104A--T25A SPDT Mini Snap Switch 120C |
24,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | UL94 V-0 | 280gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | 25°C ~ 120°C |
|
|
MJG--MV-3001A20--T220A SPDT Mini Snap Switch |
24,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
|
MJG--MV-3003A20--T220A SPDT Mini Snap Switch |
24,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
|
MJG--MV-3105A--T25A SPDT Mini Snap Switch 120C |
24,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | UL94 V-0 | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | 25°C ~ 120°C |
|
|
SSM 0044HSnap Acting/Limit Switch, SPDT, |
328 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 16gf | 2.039gf | 0.421" (10.70mm) | - | 0.031" (0.80mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
D3M 0303BSWITCH SNAP ACTION 0.1A 30V |
231 |
|
Datasheet |
D3M | Box | Active | - | - | 100mA (DC) | - | 30 V | - | Chassis Mount | - | IP40 | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
D3VM0515MSWITCH SNAP ACTION SPDT 16A 250V |
150 |
|
Datasheet |
D3V | Box | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -25°C ~ 105°C |
|
|
SS0M0013ABASIC SWITCH |
574 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.421" (10.70mm) | - | 0.040" (1.0mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|

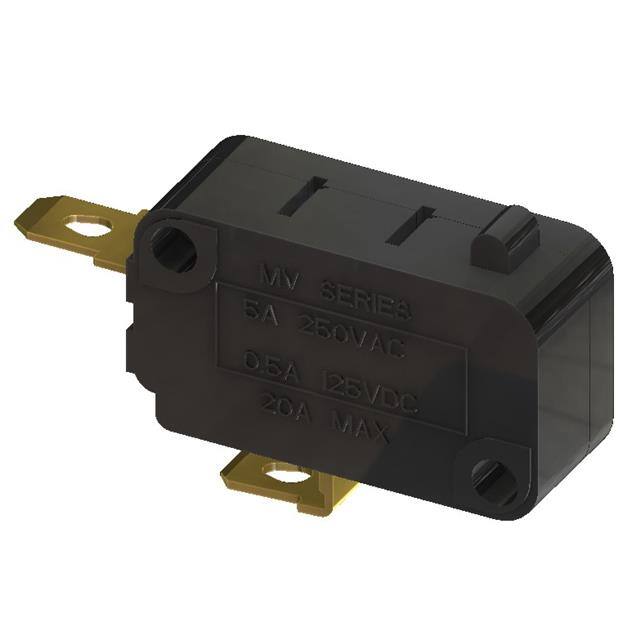

MV-3000A-NCSWITCH SNAP ACT SPST-NC 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPST-NC | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 250gf | 50gf | - | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -20°C ~ 80°C |
|
MV-3000A-NOSWITCH SNAP ACT SPST-NO 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPST-NO | Off-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 250gf | 50gf | - | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -20°C ~ 80°C |
|
|
V15M0017FSnap Acting/Limit Switch |
576 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 480gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -25°C ~ 80°C |
|
|
D3VM0517GSWITCH SNAP ACTION SPDT 16A 250V |
751 |
|
Datasheet |
D3V | Box | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.039" (1.0mm) | -25°C ~ 105°C |
