Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MJG--MVS-3200--T2SPDT Positive Open Mini Switch |
5,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | Positive Opening | 250gf | 50gf | - | 0.047" (1.2mm) | 0.005" (0.12mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
MJG--MVS-3400--T2SPDT Positive Open Mini Switch |
5,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | Positive Opening | 250gf | 50gf | - | 0.047" (1.2mm) | 0.005" (0.12mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
SSG 1004ESWITCH SNAP ACT SPDT 0.1A 125V |
147 |
|
Datasheet |
SSG | Box | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 153gf | 25gf | 0.331" (8.40mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 125°C |
|
|
MJG--MVS-3300--T3SPDT Positive Open Mini Switch |
15,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | Positive Opening | 250gf | 50gf | - | 0.047" (1.2mm) | 0.005" (0.12mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|

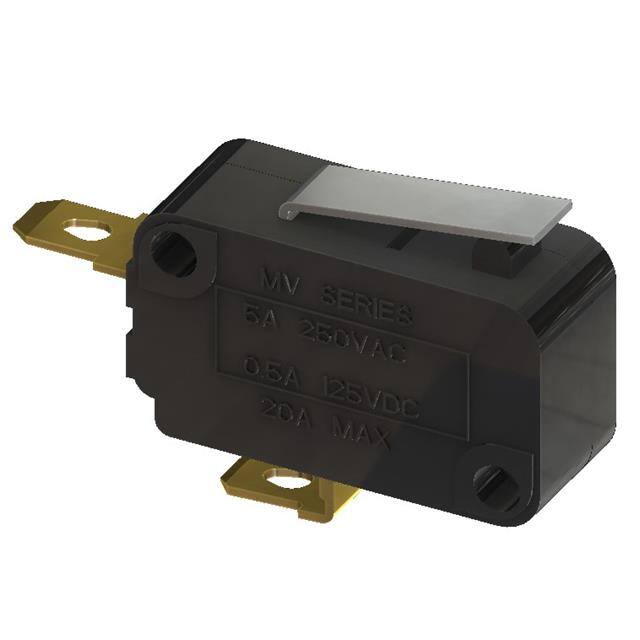

MV-3002A-NCSWITCH SNAP ACT SPST-NC 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPST-NC | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 250gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -20°C ~ 80°C |
|
|
SS5M0013MSWITCH SNAP ACTION SPDT 5A 125V |
6,500 |
|
Datasheet |
SS | Box | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.571" (14.50mm) | - | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|
|
SS0M0010GSWITCH SNAP ACTION SPDT 10A 250V |
490 |
|
Datasheet |
SS | Box | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.346" (8.80mm) | - | 0.040" (1.0mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
|
SSM 0085ESWITCH SNP ACT SPST-NO 0.1A 125V |
500 |
|
Datasheet |
SS | Box | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.346" (8.80mm) | - | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|
MV-3001A-NOSWITCH SNAP ACT SPST-NO 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPST-NO | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|

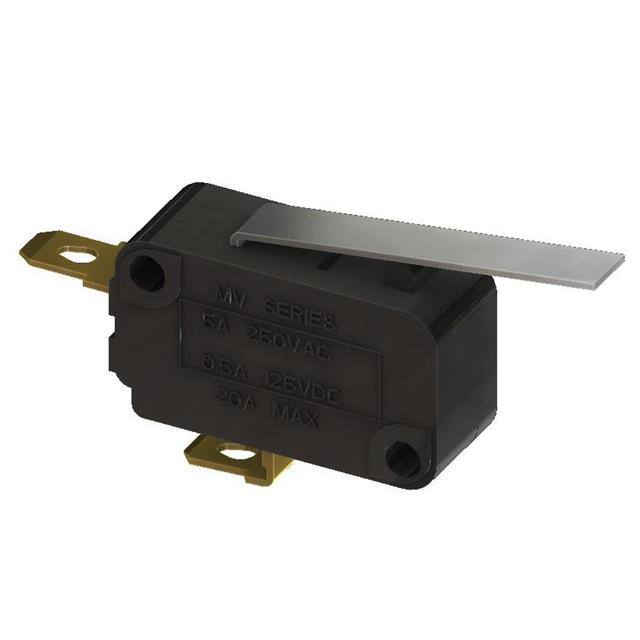

MV-3003A-NCSWITCH SNAP ACT SPST-NC 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPST-NC | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
MV-3001A-NCSWITCH SNAP ACT SPST-NC 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPST-NC | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
MV-3100ASWITCH SNAP ACTION SPDT 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 250gf | 50gf | - | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | 25°C ~ 120°C |
|
MV-3003A-NOSWITCH SNAP ACT SPST-NO 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPST-NO | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
|
MJG--MV-3005A20--T220A SPDT Mini Snap Switch |
24,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
|
MJG--MV-3004A20--T220A SPDT Mini Snap Switch |
24,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 280gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -20°C ~ 80°C |
|
|
MJG--MVS-3303--T3SPDT Positive Open Mini Switch |
15,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | Positive Opening | 140gf | 20gf | - | 0.150" (3.8mm) | 0.020" (0.5mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|
|
MJG--MVS-3302--T3SPDT Positive Open Mini Switch |
15,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | Positive Opening | 220gf | 50gf | - | 0.063" (1.6mm) | 0.006" (0.15mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
MJG--MVS-3301--T3SPDT Positive Open Mini Switch |
15,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Screw Terminal | IP40 | Positive Opening | 220gf | 50gf | - | 0.060" (1.5mm) | 0.006" (0.15mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
MJG--MVS-3202--T2SPDT Positive Open Mini Switch |
5,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | Positive Opening | 220gf | 50gf | - | 0.063" (1.6mm) | 0.006" (0.15mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
MJG--MVS-3401--T2SPDT Positive Open Mini Switch |
5,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | Positive Opening | 220gf | 50gf | - | 0.060" (1.5mm) | 0.006" (0.15mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
