Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D3DM0005HSWITCH DETECTOR SPST-NC 1A 125V |
304 |
|
Datasheet |
D3D | Box | Active | SPST-NC | On-Mom | 1A (AC) | 125 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Connector | IP00 | - | 204gf | - | 0.512" (13.00mm) | - | - | - | -30°C ~ 60°C |
|
MV-3101ASWITCH SNAP ACTION SPDT 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | 25°C ~ 120°C |
|
MV-3005A-NCSWITCH SNAP ACT SPST-NC 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPST-NC | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|

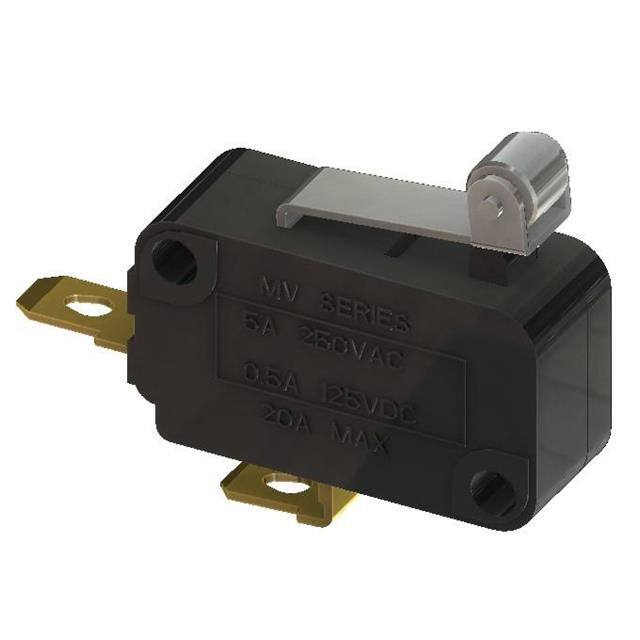

MV-3004A-NOSWITCH SNAP ACT SPST-NO 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPST-NO | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 280gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -20°C ~ 80°C |
|
MV-3005A-NOSWITCH SNAP ACT SPST-NO 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPST-NO | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
MV-3103ASWITCH SNAP ACTION SPDT 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | 25°C ~ 120°C |
|
MV-3004A-NCSWITCH SNAP ACT SPST-NC 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPST-NC | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 280gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -20°C ~ 80°C |
|
|
D3VM0455CSWITCH SNAP ACTION SPDT 16A 250V |
218 |
|
Datasheet |
D3V | Box | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.598" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.80mm) | 0.063" (1.6mm) | -25°C ~ 105°C |
|
|
SSM 0035RSWITCH SNAP ACT SPDT 0.1A 125V |
363 |
|
Datasheet |
SS | Box | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 16gf | 2.039gf | 0.421" (10.70mm) | - | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|
MV-3004A-PSWITCH SNAP ACTION SPDT 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | POM Roller | 280gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -20°C ~ 80°C |
|

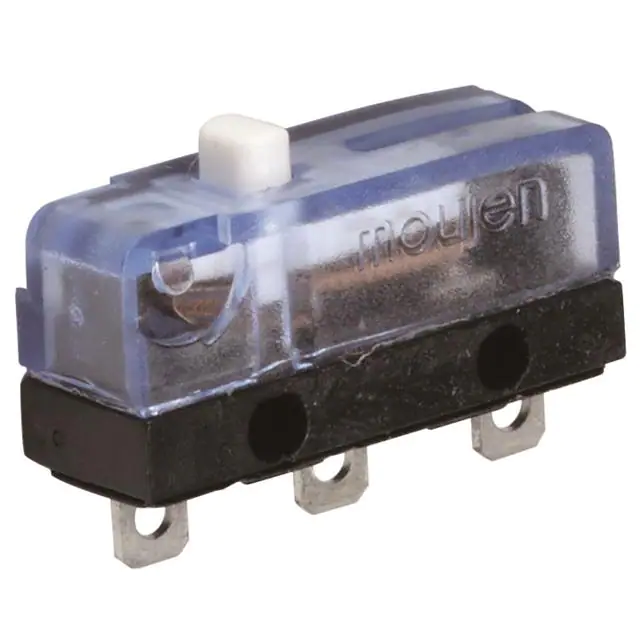

MZ-7511SWITCH SNAP ACT SPDT 0.75A 240V |
700 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 163gf | 29gf | - | 0.094" (2.4mm) | 0.028" (0.7mm) | 0.083" (2.1mm) | -25°C ~ 80°C |
|
|
D3VM0109MSWITCH SNAP ACTION SPDT 6A 250V |
150 |
|
Datasheet |
D3V | Box | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 105°C |
|
MV-3104ASWITCH SNAP ACTION SPDT 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 280gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | 25°C ~ 120°C |
|
MV-3105ASWITCH SNAP ACTION SPDT 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | 25°C ~ 120°C |
|
|
SSM 0007CSWITCH SNAP ACT SPDT 0.1A 125V |
12,789 |
|
- |
SS | Box | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 150gf | 25gf | 0.331" (8.40mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
MZ-7611SWITCH SNAP ACT SPDT 0.75A 240V |
700 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 56gf | 32gf | - | 0.080" (2.0mm) | 0.035" (0.9mm) | 0.075" (1.9mm) | -25°C ~ 80°C |
|
MZ-7711SWITCH SNAP ACT SPDT 0.75A 240V |
700 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 43gf | 29gf | - | 0.094" (2.4mm) | 0.028" (0.7mm) | 0.083" (2.1mm) | -25°C ~ 80°C |
|
|
MJG--MVS-3300--T2SPDT Positive Open Mini Switch |
5,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | Positive Opening | 250gf | 50gf | - | 0.047" (1.2mm) | 0.005" (0.12mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
SSM 0079MSWITCH SNAP ACT SPDT 0.1A 125V |
1,990 |
|
Datasheet |
SS | Box | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 16gf | 2.039gf | 0.571" (14.50mm) | - | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|
|
V10M0002MSWITCH SNAP ACTION SPDT 10A 250V |
2,050 |
|
Datasheet |
V | Box | Active | SPDT | On-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 35gf | - | 0.598" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.126" (3.2mm) | -25°C ~ 80°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
