Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MJG--MV-3002A--T25A SPDT Mini Snap Switch |
24,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 250gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -20°C ~ 80°C |
|
|
MJG--MVS-3200--T3SPDT Positive Open Mini Switch |
15,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | Positive Opening | 250gf | 50gf | - | 0.047" (1.2mm) | 0.005" (0.12mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
MJG--MVS-3400--T3SPDT Positive Open Mini Switch |
15,000 |
|
- |
MVS | Bulk | Active | SPDT | On-Mom | 6A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | Positive Opening | 250gf | 50gf | - | 0.047" (1.2mm) | 0.005" (0.12mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
SSG 1093BBASIC SWITCH |
800 |
|
Datasheet |
SSG | - | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 61gf | 6.118gf | 0.705" (17.9mm) | - | 0.031" (0.80mm) | 0.039" (1.0mm) | -25°C ~ 125°C |
|
|
D2HW1927GSWITCH SNAP ACT SPDT 0.1A 125V |
369 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 66gf | 5.099gf | 0.598" (15.2mm) | - | 0.020" (0.5mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|
|
MJG--MV-3103A--T25A SPDT Mini Snap Switch 120C |
24,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | UL94 V-0 | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | 25°C ~ 120°C |
|
|
MJG--MV-3005A-NO--T25A SPST-NO Mini Snap Switch |
24,000 |
|
- |
MV | Bulk | Active | SPST-NO | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
|
MJG--MV-3101A--T25A SPDT Mini Snap Switch 120C |
24,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | UL94 V-0 | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | 25°C ~ 120°C |
|
|
MJG--MV-3001A--T25A SPDT Mini Snap Switch |
24,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
|
MJG--MV-3004A-NO--T25A SPST-NO Mini Snap Switch |
24,000 |
|
- |
MV | Bulk | Active | SPST-NO | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 280gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -20°C ~ 80°C |
|
|
MJG--MV-3005A-NC--T25A SPST-NC Mini Snap Switch |
24,000 |
|
- |
MV | Bulk | Active | SPST-NC | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
|
MJG--MV-3004A-NC--T25A SPST-NC Mini Snap Switch |
24,000 |
|
- |
MV | Bulk | Active | SPST-NC | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 280gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -20°C ~ 80°C |
|
|
D2AW-EL082H-RSWITCH SNAP ACT SPST-NC 0.1A 12V |
480 |
|
Datasheet |
D2AW | Box | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 92gf | 5.099gf | 0.764" (19.4mm) | - | 0.027" (0.7mm) | 0.110" (2.8mm) | -40°C ~ 85°C |
|

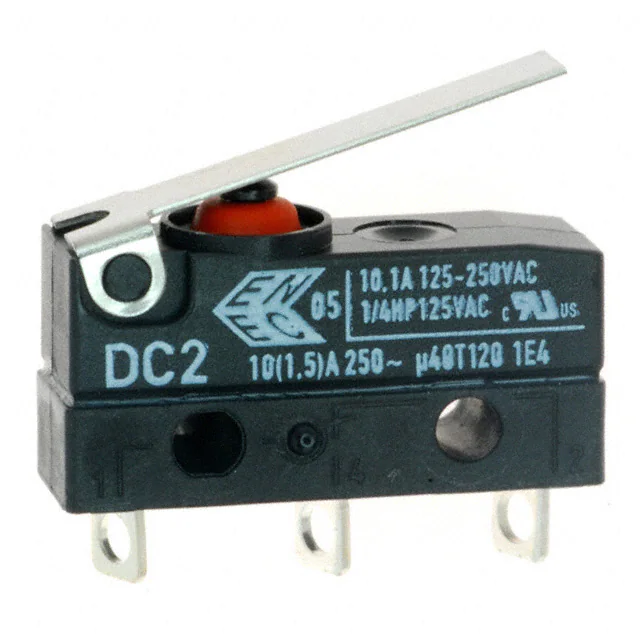

DC2C-A1LBSWITCH SNAP ACTION SPDT 10A 125V |
7,840 |
|
Datasheet |
DC | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.420" (10.7mm) | 0.197" (5.0mm) | 0.031" (0.80mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|
DC1C-L1SCSWITCH SNAP ACTION |
7,176 |
|
- |
DC | Bulk | Active | SPDT | On-Mom | 5A (AC), 1A (DC) | 250 V | 48 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 200gf | - | 0.331" (8.40mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.024" (0.6mm) | -40°C ~ 105°C |
|
|
MJG--MV-3005A20--T320A SPDT Mini Snap Switch |
72,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
|
MJG--MV-3004A20--T320A SPDT Mini Snap Switch |
72,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 280gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -20°C ~ 80°C |
|
|
D2FN1003MSWITCH SNAP ACTION SPDT 1A 125V |
1,400 |
|
Datasheet |
D2F | Box | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 25gf | 2.039gf | 0.268" (6.80mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 65°C |
|
SSG-5L3TSNAP ACTING/LIMIT SWITCH, SPDT, |
326 |
|
Datasheet |
SSG | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 61gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.80mm) | 0.040" (1.0mm) | -25°C ~ 125°C |
|
|
SSG 1023ASUBMINIATURE BASIC SWITCH |
326 |
|
Datasheet |
SSG | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 61gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.80mm) | 0.040" (1.0mm) | -25°C ~ 125°C |
