Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
914CE18-6ASWITCH SNAP ACTION SPDT 5A 240V |
51 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 6' | 2300gf | 450gf | 0.980" (24.9mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
V3-1075SWITCH PLUNGER SPST 1A SCREW |
60 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
10BS161SWITCH SNAP ACT SPST-NC 20A 125V |
84 |
|
Datasheet |
BS | Bulk | Active | SPST-NC | On-Mom | 20A (AC) | 125 V | - | Adjustable Plunger | Chassis Mount | Screw Terminal | - | - | 482 ~ 624gf | 397gf | 0.640" (16.3mm) | - | 0.007" (0.18mm) | 0.010" (0.25mm) | - |
|
|
12SX91-TSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
- |
SX | Bulk | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | - | - | - | - | - | - | -55°C ~ 125°C |
|

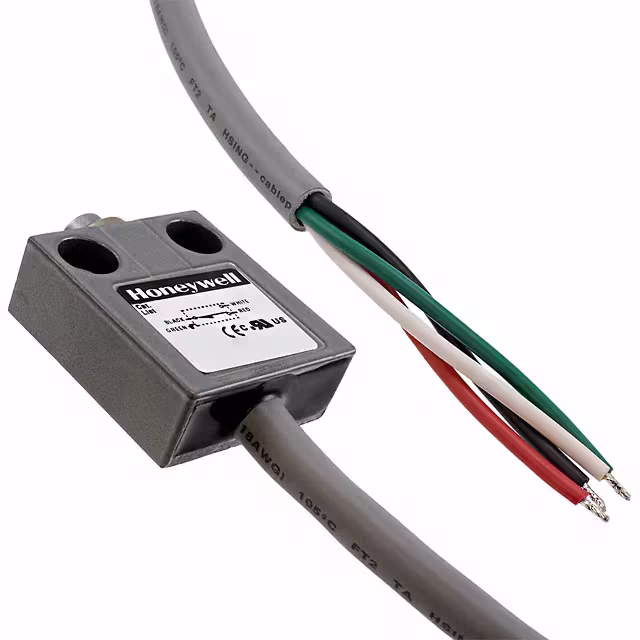

914CE1-15SWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 15' | 1200gf | 450gf | 0.618" (15.7mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
BNS0005SWITCH SNAP ACTION DPST 6A 250V |
36 |
|
Datasheet |
- | Bag | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC) | 250 V | - | Bevel Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 2039gf | - | 0.551" (14.0mm) | - | - | - | -5°C ~ 85°C |
|
|
GLAC01ASWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
|

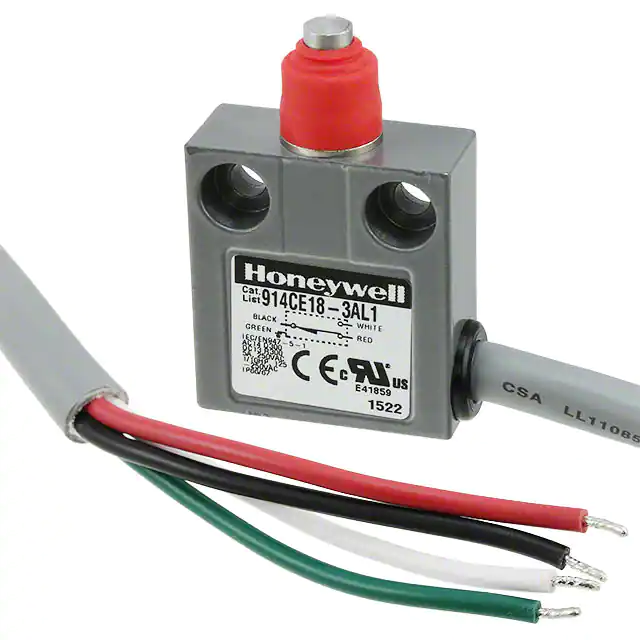

914CE18-3AL1SWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 3' | 2300gf | 450gf | 0.980" (24.9mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -40°C ~ 105°C |
|
|
11SX48-H58SWITCH SNAP ACTION SPDT 3A 250V |
0 |
|
Datasheet |
SX | Bulk | Obsolete | SPDT | On-Mom | 3A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 99gf | 21gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.001" (0.025mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
GLAB01CSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 1.890" (48.0mm) | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.180" (4.6mm) | -25°C ~ 85°C |
|
BNS006ESWITCH SNAP ACTION SPDT 5A 250V |
42 |
|
Datasheet |
- | Bag | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Bevel Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 816gf | - | 0.433" (11.0mm) | - | - | - | -5°C ~ 85°C |
|
|
BZE6-7RN18SWITCH SNAP ACTION SPDT 15A 125V |
38 |
|
Datasheet |
E6 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | Actuator Seal Boot | 198gf | - | 15° | - | - | - | -32°C ~ 71°C |
|
|
LSQYUB3K336SWITCH LEVER FOR ROTARY |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Cable with Connector | - | - | 46gf | - | - | 5° | 5° | 70° | - |
|
|
MT-4R-P1SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
MT | Bulk | Obsolete | SPDT | On-Mom | 10A (AC/DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 340 ~ 510gf | 142gf | 0.625" (15.9mm) | 0.040" (1.0mm) | 0.007" (0.18mm) | 0.005" (0.13mm) | - |
|
BME6-2RQ273SWITCH SNAP ACTION SPDT 22A 125V |
0 |
|
Datasheet |
E6 | Bulk | Active | SPDT | On-Mom | 22A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 283 ~ 510gf | 170gf | - | 0.188" (4.8mm) | 0.006" (0.15mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
GLAA20ASWITCH SNAP ACTION DPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
|
|
BNS0067SWITCH SNAP ACT SPDT 0.1A 250V |
59 |
|
Datasheet |
- | Bag | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Bevel Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 816gf | - | 0.433" (11.0mm) | - | - | - | -5°C ~ 85°C |
|
BZE7-2RN2-CSWITCH SNAP ACTION SPDT 15A 125V |
90 |
|
Datasheet |
E7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 283 ~ 567gf | 170gf | - | 0.188" (4.8mm) | 0.006" (0.15mm) | 0.219" (5.6mm) | -30°C ~ 71°C |
|

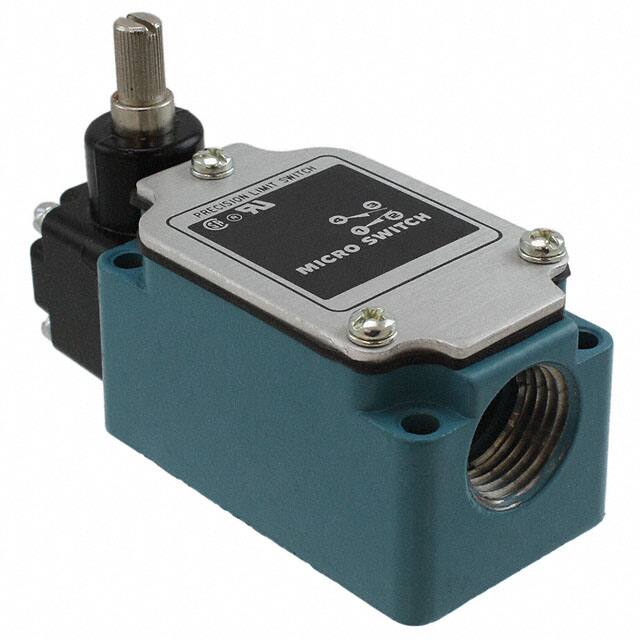

1LS2-LSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|

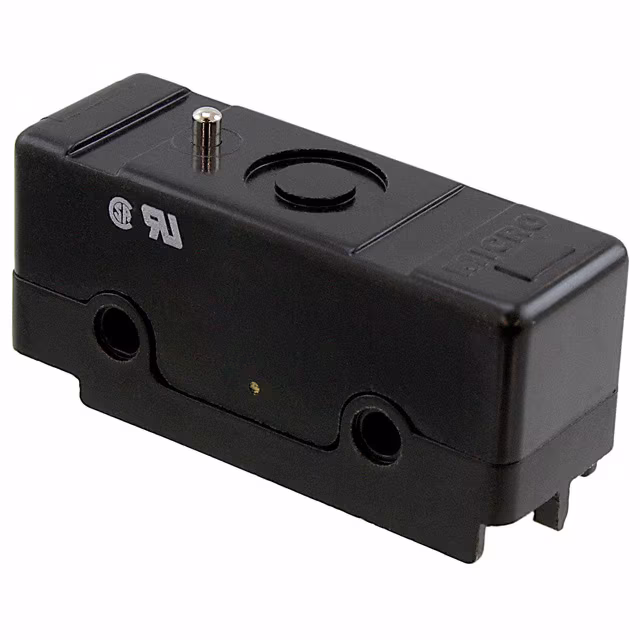

DT-2R4-A7SWITCH SNAP ACTION DPDT 10A 125V |
200 |
|
Datasheet |
DT | Bulk | Obsolete | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 340 ~ 567gf | 28gf | 0.615" (15.6mm) | 0.090" (2.3mm) | 0.060" (1.5mm) | 0.015" (0.4mm) | -55°C ~ 85°C |
