Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
91MCE18-P1SWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1122gf | - | - | 0.071" (1.8mm) | 0.031" (0.8mm) | 0.125" (3.2mm) | -25°C ~ 85°C |
|

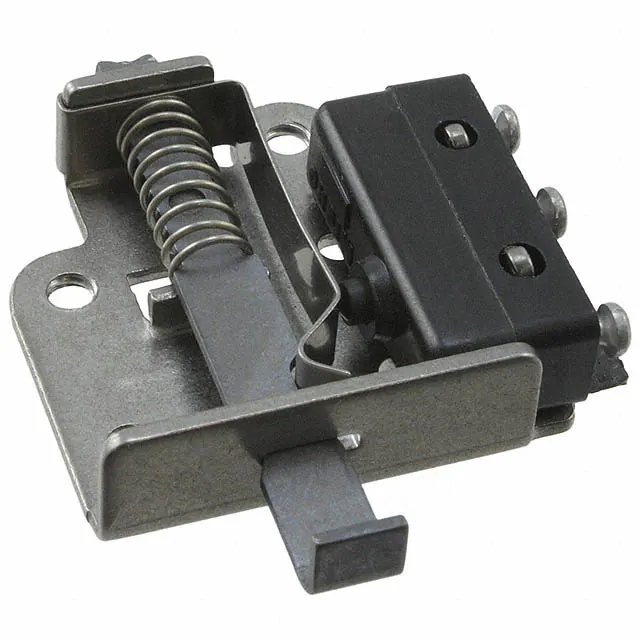

17AC18-TSWITCH SNAP ACTION SPDT 5A 250V |
76 |
|
Datasheet |
AC | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Push-Pull Plunger | Chassis Mount | Solder Turret | - | - | 907gf | - | 0.220" (5.6mm) | - | - | 0.175" (4.5mm) | -53°C ~ 121°C |
|
BZ-2RQ785SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Cross Roller Plunger | Panel Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 1.953" (49.6mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|
M4-4102RQ-ZDCSWITCH SNAP ACTION SPDT 5A 250V |
625 |
|
Datasheet |
M4 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA | 250 V | 125 V | Cross Roller Plunger | Chassis Mount | Connector | IP67F - Dust Tight, Oil Resistant, Waterproof | - | 1200gf | 450gf | - | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -20°C ~ 70°C |
|
ME-8108SWITCH LIMIT SPDT 5A 250V |
360 |
|
Datasheet |
ME | Tray | Active | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 250 V | 115 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Nylon Roller | 340gf | 21gf | - | 20° | 10° | 75° | -15°C ~ 70°C |
|
83240200SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 600mA (DC) | 250 V | 250 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | 459gf | - | 0.260" (6.6mm) | - | 0.040" (1.0mm) | - | -50°C ~ 85°C |
|
M4-4112RQ-ZDCSWITCH SNAP ACTION SPDT 5A 250V |
625 |
|
Datasheet |
M4 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA | 250 V | 125 V | Cross Roller Plunger | Chassis Mount | Connector | IP67F - Dust Tight, Oil Resistant, Waterproof | Actuator Seal Boot | 1800gf | 450gf | - | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -20°C ~ 70°C |
|
PS31L-NT21RT-M00SWITCH SNAP ACTION 2NO 1NC |
120 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
E1117-558SWITCH LIMIT 5A 120V |
28 |
|
Datasheet |
E1117 | Bulk | Active | - | - | 5A (AC/DC) | 120 V | 28 V | Lever, Roller | Chassis Mount | Wire Leads | Waterproof | - | - | - | - | - | - | - | - |
|
|
22SM82-TSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 85gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
91MCE2-S2SWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 2m | 816gf | - | - | 0.063" (1.6mm) | 0.055" (1.4mm) | 0.134" (3.4mm) | -25°C ~ 85°C |
|
|
BZ-3RDS152T-SSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Steel Plunger | 340 ~ 567gf | 113gf | 1.110" (28.2mm) | - | 0.003" (0.075mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
GLDC01A1ASWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
|
91MCE16-P1BSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 18gfm | 4.078gfm | - | 20° | 10° | 50° | -25°C ~ 85°C |
|
23AC82SWITCH SNAP ACTION SPDT 5A 125V |
1 |
|
Datasheet |
AC | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 1814gf | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -18°C ~ 82°C |
|
|
21SM367-0414SWITCH SNAP ACTION SPDT 5A 250V |
582 |
|
- |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 85gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
11SM2442-TSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 113gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
BM-2R559729SWITCH SNAP ACTION SPDT 22A 125V |
0 |
|
Datasheet |
BM | Bulk | Obsolete | SPDT | On-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | Splash Proof | - | 425 ~ 595gf | 227gf | 0.625" (15.9mm) | - | 0.003" (0.075mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
M4-4102-Z3LSWITCH SNAP ACTION SPDT 5A 250V |
625 |
|
Datasheet |
M4 | Retail Package | Active | SPDT | On-Mom | 5A (AC), 400mA (DC) | 250 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67F - Dust Tight, Oil Resistant, Waterproof | - | 1200gf | 450gf | - | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -20°C ~ 70°C |
|
M4-4111-Z3LSWITCH SNAP ACTION SPDT 5A 250V |
625 |
|
Datasheet |
M4 | Retail Package | Active | SPDT | On-Mom | 5A (AC), 400mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67F - Dust Tight, Oil Resistant, Waterproof | Actuator Seal Boot | 1800gf | 450gf | - | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -20°C ~ 70°C |
