IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

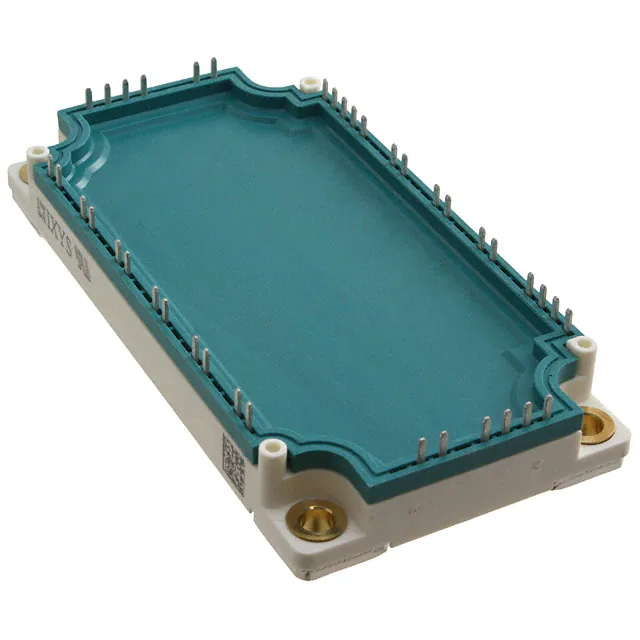

MIXA60WH1200TEHIGBT MODULE 1200V 85A 290W E3 |
9,523 |
|
- |
- | E3 | Box | Active | - | Three Phase Inverter with Brake | 1200 V | 85 A | 290 W | 2.1V @ 15V, 55A | 500 µA | - | Three Phase Bridge Rectifier | Yes | - | Chassis Mount | E3 |
|
MIF300R12C2TL-BPGBT MODULES |
4,149 |
|
- |
- | Module | Tape & Reel (TR) | Active | - | Half Bridge Inverter | 1200 V | 300 A | 1700 W | 2.2V @ 15V, 300A | 1 mA | 18400 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
CM200DX-24AIGBT MOD 1200V 200A 1250W |
6,175 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 200 A | 1250 W | 2.6V @ 15V, 200A | 1 mA | 35 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
IRG5U200HF12BIGBT MOD 1200V 285A POWIR 62 |
8,428 |
|
- |
- | POWIR® 62 Module | Box | Obsolete | - | Half Bridge | 1200 V | 285 A | 1250 W | 3.5V @ 15V, 200A | 3 mA | 22.7 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 62 |
|
MG12200D-BA1MMIGBT MODULE 1200V 300A 1400W D3 |
5,615 |
|
- |
- | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 300 A | 1400 W | 1.8V @ 15V, 200A (Typ) | 1 mA | 14.9 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
QIS4506002IGBT MODULE 4500V 60A |
8,792 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Single | 4500 V | 60 A | - | 3.9V @ 15V, 67A | 1 mA | 9 nF @ 10 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FS100R17N3E4PB11BPSA1IGBT MODULE LOW POWER ECONO |
9,117 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CM200DX-24SIGBT MOD 1200V 200A 1500W |
9,210 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 200 A | 1500 W | 2.15V @ 15V, 200A | 1 mA | 20 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF225R17ME4B11BPSA1MEDIUM POWER ECONO AG-ECONOD-311 |
8,699 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 340 A | 1500 W | 2.3V @ 15V, 225A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
|
CM50RL-24NFIGBT MOD 1200V 50A 390W |
5,864 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 50 A | 390 W | 3V @ 15V, 50A | 1 mA | 8.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FP75R17N3E4B20BPSA1LOW POWER ECONO |
9,223 |
|
- |
EconoPIM™3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 150 A | 555 W | 2.3V @ 15V, 75A | 1 mA | 6.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO3 |
|
|
IRG5U400SD12BIGBT MOD 1200V 600A POWIR 62 |
2,522 |
|
- |
- | POWIR® 62 Module | Box | Obsolete | - | Single | 1200 V | 600 A | 2500 W | 3.5V @ 15V, 400A | 5 mA | 45.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 62 |
|
|
NXH50M65L4Q1PTG6KW H6.5 50A Q1PACK PRESS-FIT PI |
6,945 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Full Bridge | 650 V | 48 A | 86 W | 2.22V @ 15V, 50A | 300 µA | 3.137 nF @ 20 V | Standard | Yes | 175°C (TJ) | Chassis Mount | 53-PIM/Q2PACK (93x47) |
|
|
FP75R12N3T4PB81BPSA1LOW POWER ECONO |
9,159 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

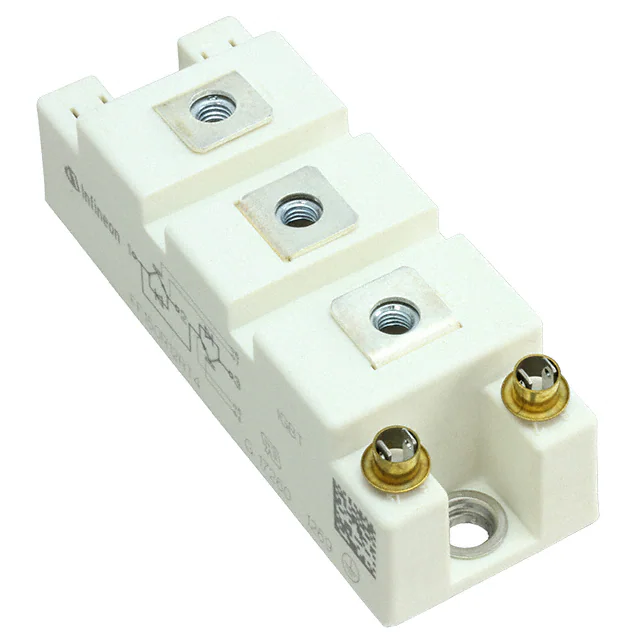

FF150R12RT4HOSA1IGBT MOD 1200V 150A 790W |
6,959 |
|
- |
C | Module | Tray | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 150 A | 790 W | 2.15V @ 15V, 150A | 1 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT25X120T3GIGBT MODULE 1200V 40A 156W SP3 |
5,318 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 40 A | 156 W | 2.1V @ 15V, 25A | 250 µA | 1.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
MIXA225PF1200TSFIGBT MOD 1200V 360A 1100W |
3,716 |
|
- |
- | Module | Box | Active | PT | Half Bridge | 1200 V | 360 A | 1100 W | 2.1V @ 15V, 225A | 300 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300DX-12AIGBT MOD 600V 300A 960W |
8,625 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 300 A | 960 W | 2.1V @ 15V, 300A | 1 mA | 34 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM600HX-12AIGBT MOD 600V 600A 1890W |
5,980 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 600 V | 600 A | 1890 W | 2.1V @ 15V, 600A | 1 mA | 69 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
F417MR12W1M1HB70BPSA1LOW POWER EASY |
2,023 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
