IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NXH300N95H4Q2F2SG1500V 125KW I-NPC Q2 PACK STRING |
6,175 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTGLQ40DDA120CT3GIGBT MODULE 1200V 75A 250W SP6 |
6,806 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 1200 V | 75 A | 250 W | 2.4V @ 15V, 40A | 100 µA | 2.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP6 |
|
|
APTGT50DU120TGIGBT MODULE 1200V 75A 277W SP4 |
5,508 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
FP25R12U1T4BPSA1IGBT MOD 1200V 39A 190W |
5,123 |
|
- |
SmartPIM1 | Module | Tray | Last Time Buy | Trench Field Stop | Three Phase Inverter | 1200 V | 39 A | 190 W | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
MIXA80W1200PTEHIGBT MODULE SIXPACK E3-PACK-PF |
7,091 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CM150DY-24NFIGBT MOD 1200V 150A 780W |
2,086 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 150 A | 780 W | 2.5V @ 15V, 150A | 1 mA | 35 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FS75R07U1E4BPSA1IGBT MOD 650V 100A 275W |
3,157 |
|
- |
SmartPACK1 | Module | Tray | Last Time Buy | Trench Field Stop | Full Bridge | 650 V | 100 A | 275 W | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
MWI50-12A7IGBT MODULE 1200V 85A 350W E2 |
7,529 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 85 A | 350 W | 2.7V @ 15V, 50A | 4 mA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
FS100R12N2T4PBPSA1IGBT MODULE LOW POWER ECONO |
2,174 |
|
- |
EconoPACK™ 2 | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

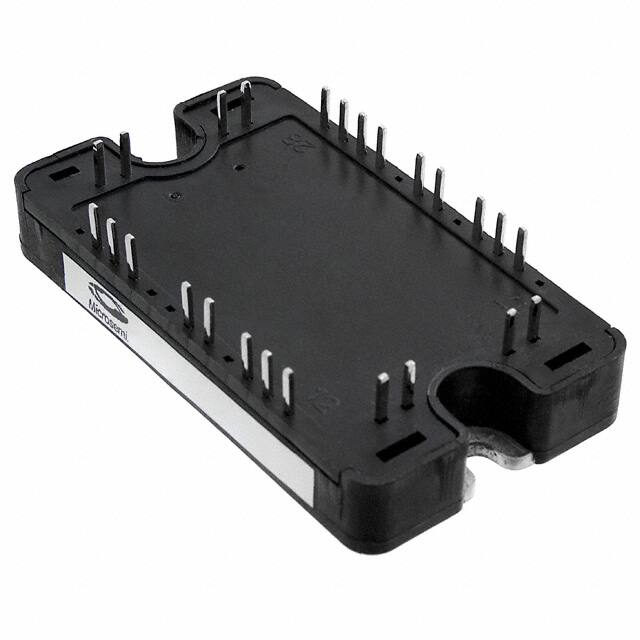

APTGT100H60T3GIGBT MODULE 600V 150A 340W SP3 |
2,282 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT100DH60TGIGBT MODULE 600V 150A 340W SP4 |
2,891 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
FF225R17ME4PBPSA1IGBT MOD 1700V 450A 20MW |
5,607 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 450 A | - | 2.3V @ 15V, 225A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
MITA300RF1700PTEDIGBT MODULE - OTHERS E2-PACK-PFP |
9,363 |
|
- |
- | E2 | Box | Active | Trench | Single Chopper | 1700 V | 400 A | 1390 W | 2.45V @ 15V, 300A | 1.2 mA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|

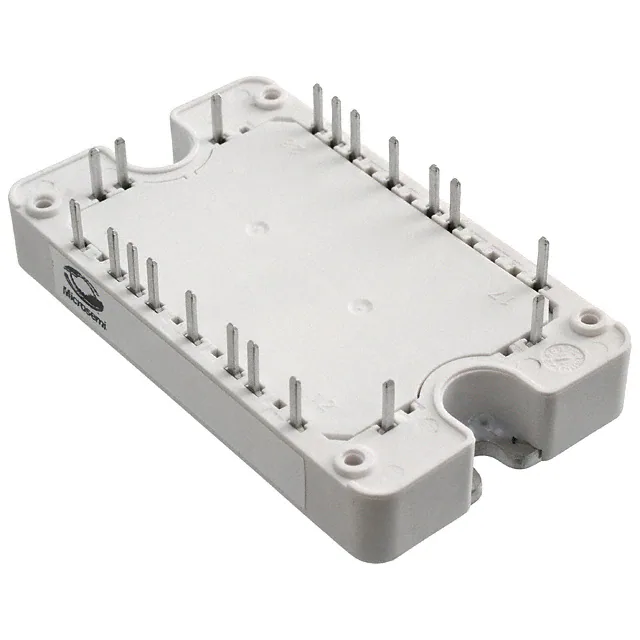

APTCV60HM45RT3GIGBT MODULE 600V 50A 250W SP3 |
3,997 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 50 A | 250 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Single Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
IRG7T400SD12BIGBT MOD 1200V 780A POWIR 62 |
5,894 |
|
- |
- | POWIR® 62 Module | Box | Obsolete | - | Single | 1200 V | 780 A | 2140 W | 2.2V @ 15V, 400A | 4 mA | 58.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 62 |
|
|
MWI50-12A7TIGBT MODULE 1200V 85A 350W E2 |
7,482 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 85 A | 350 W | 2.7V @ 15V, 50A | 4 mA | 3.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
FS75R12KT3BOSA1IGBT MOD 1200V 105A 355W |
9,728 |
|
- |
EconoPACK™ 2 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
MIXA600PF650TSFIGBT MOD 650V 720A 1750W |
8,193 |
|
- |
- | Module | Box | Obsolete | PT | Half Bridge | 650 V | 720 A | 1750 W | 1.8V @ 15V, 600A | 1.8 mA | - | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
|
APTGT150A60T3AGIGBT MODULE 600V 225A 600W SP3 |
9,784 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 225 A | 600 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
FF300R12ME4PB11BPSA1IGBT MOD 1200V 600A 20MW |
6,338 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.1V @ 15V, 300A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
