Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0697H9200-02FUSE BRD MT 20A 350VAC 72VDC RAD |
13,302 |
|
Datasheet |
0697H | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 20 A | 350 V | 72 V | Slow Blow | 150A AC, 200A DC | 1100.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
F0603E0R37FSTRFUSE BOARD MNT 375MA 32VDC 0603 |
10,486 |
|
Datasheet |
Accu-Guard® II | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 375 mA | - | 32 V | Fast Blow | 50A | 1.0E-4 | cUL, UL | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.025" H (1.60mm x 0.81mm x 0.63mm) | |
|
|
0697H8000-02FUSE BRD MT 8A 350VAC 72VDC RAD |
9,715 |
|
Datasheet |
0697H | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 8 A | 350 V | 72 V | Slow Blow | 150A AC, 200A DC | 325.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
0235001.HXPFUSE GLASS 1A 250VAC 5X20MM |
7,458 |
|
Datasheet |
235 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Fast Blow | 100A | 0.4675 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0697H9100-01FUSE BRD MT 10A 350VAC 72VDC RAD |
5,768 |
|
Datasheet |
0697H | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 10 A | 350 V | 72 V | Slow Blow | 150A AC, 200A DC | 370.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
0891025.NXSFUSE AUTO 25A 58VDC BLADE MINI |
4,168 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 25 A | - | 58 V | Fast Blow | 1kA | 613.0 | - | -40°C ~ 125°C | Clear | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
|
0697H9150-01FUSE BRD MT 15A 350VAC 72VDC RAD |
3,864 |
|
Datasheet |
0697H | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 15 A | 350 V | 72 V | Slow Blow | 150A AC, 200A DC | 563.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
0891020.NXWSFUSE AUTO 20A 58VDC BLADE MINI |
2,944 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 20 A | - | 58 V | - | 1kA | 420.0 | - | -40°C ~ 125°C | Yellow | 0.429" L x 0.150" W x 0.344" H (10.90mm x 3.81mm x 8.73mm) | |
|
0891010.NXWSFUSE AUTO 10A 58VDC BLADE MINI |
2,378 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 10 A | - | 58 V | - | 1kA | 102.0 | - | -40°C ~ 125°C | Red | 0.429" L x 0.150" W x 0.344" H (10.90mm x 3.81mm x 8.73mm) | |
|
3413.0328.24FUSE BOARD MOUNT 10A 32VAC 63VDC |
1,502 |
|
Datasheet |
UST 1206 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 32 V | 63 V | Slow Blow | 100A | 21.0 | cURus | -55°C ~ 90°C | - | 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm) | |
|
0407006.WRFUSE BOARD MOUNT 6A 24VDC 1206 |
8,289 |
|
Datasheet |
407 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 6 A | - | 24 V | Slow Blow | 60A | 15.56 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.064" W x 0.033" H (3.20mm x 1.63mm x 0.84mm) | |
|
0891030.NXSFUSE AUTO 30A 58VDC BLADE MINI |
7,305 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 30 A | - | 58 V | Fast Blow | 1kA | 1110.0 | - | -40°C ~ 125°C | Green | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
0215004.MRET1SPPFUSE CERAMIC 4A 250VAC 5X20MM |
3,123 |
|
Datasheet |
215SP | Tape & Reel (TR) | Active | Through Hole | Cartridge, Ceramic | 4 A | 250 V | - | Slow Blow | 1.5kA | 46.96 | CE, CQC, CSA, KC, PSE, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|

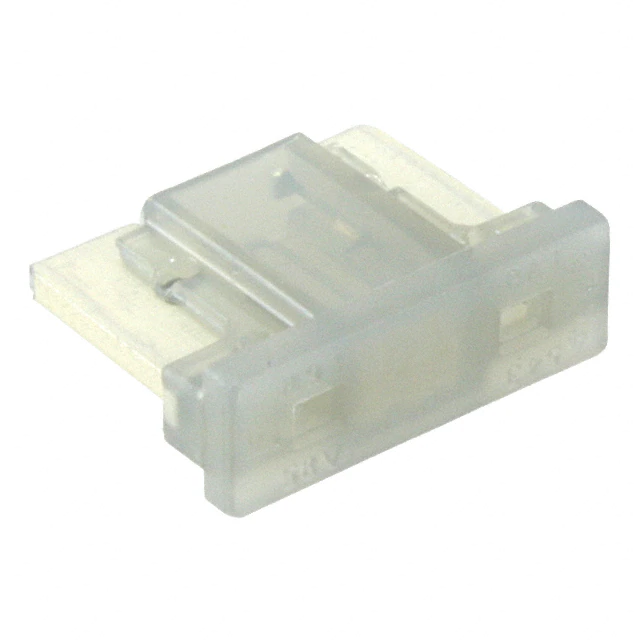

0891002.NXSFUSE AUTOMOTIVE 2A 58VDC BLADE |
2,852 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 2 A | - | 58 V | Fast Blow | 1kA | 3.0 | - | -40°C ~ 125°C | Gray | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
36911000440FUSE BOARD MNT 1A 300VAC RADIAL |
2,176 |
|
Datasheet |
TE5® 369 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 300 V | - | Slow Blow | 50A | 5.8 | cULus, PSE/JET | -40°C ~ 85°C | - | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) | |
|
02153.15MXF163SPPFUSE CERAMIC 3.15A 250VAC RADIAL |
1,540 |
|
Datasheet |
215SP | Bulk | Active | Through Hole | Cartridge, Ceramic | 3.15 A | 250 V | - | Slow Blow | 1.5kA | 43.255 | CE, CQC, CSA, KC, PSE, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0215008.MXF103SPPFUSE CERAMIC 8A 250VAC RADIAL |
1,406 |
|
Datasheet |
215SP | Bulk | Active | Through Hole | Cartridge, Ceramic | 8 A | 250 V | - | Slow Blow | 1.5kA | 209.88 | - | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
021506.3MXF160SPPFUSE CERAMIC 6.3A 250VAC RADIAL |
1,159 |
|
Datasheet |
215SP | Bulk | Active | Through Hole | Cartridge, Ceramic | 6.3 A | 250 V | - | Slow Blow | 1.5kA | 128.75 | - | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|

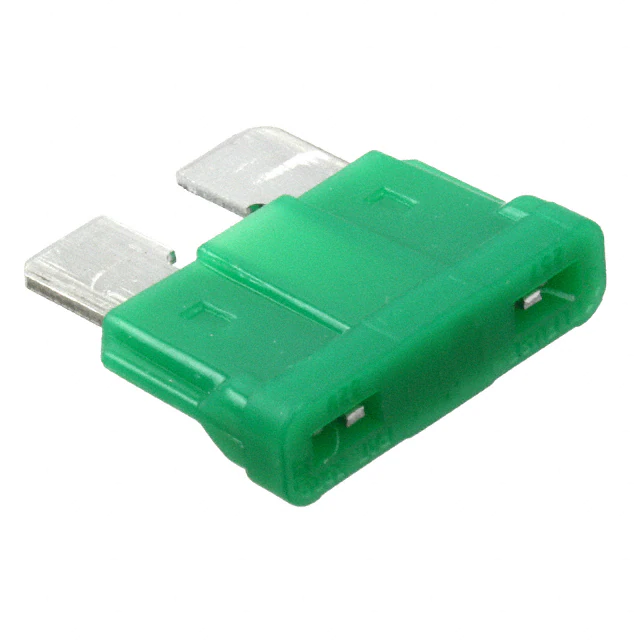

0257030.PXAPCFUSE AUTO 30A 32VDC BLADE ATO |
11,740 |
|
Datasheet |
ATO® | Bulk | Active | Requires Holder | Automotive | 30 A | - | 32 V | - | 1kA | 1510.0 | cULus | -40°C ~ 105°C | Green | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
.jpg)
|
MFU1206FF05000P100FUSE BOARD MOUNT 5A 63VDC 1206 |
24,702 |
|
Datasheet |
MFU | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | - | 63 V | Fast Blow | 50A | 0.2275 | UL | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.022" H (3.20mm x 1.60mm x 0.55mm) |
