Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

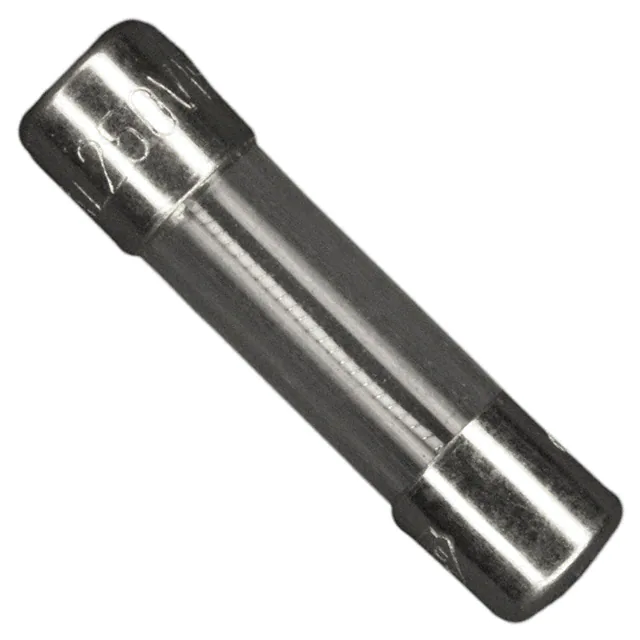

0034.3112FUSE GLASS 315MA 250VAC 5X20MM |
2,603 |
|
Datasheet |
FST 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 315 mA | 250 V | - | Slow Blow | 35A | 0.544 | CCC, cURus, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
.jpg)
|
MFU0402FF00500E100FUSE BOARD MNT 500MA 32VDC 0402 |
2,208 |
|
Datasheet |
MFU | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | - | 32 V | Fast Blow | 50A | 9.0E-4 | UL | -55°C ~ 125°C | - | 0.040" L x 0.020" W x 0.013" H (1.00mm x 0.50mm x 0.32mm) | |
|
BK/S500-2-RFUSE GLASS 2A 250VAC 5X20MM |
2,131 |
|
Datasheet |
S500 | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 250 V | - | Fast Blow | 35A | 4.2 | BSI, CCC, CSA, cULus, IMQ, SEMKO, VDE | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0034.3126FUSE GLASS 8A 250VAC 5X20MM |
1,909 |
|
Datasheet |
FST 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 8 A | 250 V | - | Slow Blow | 80A | 275.0 | CQC, cURus, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0235.700MXPFUSE GLASS 700MA 250VAC 5X20MM |
1,864 |
|
Datasheet |
235 | Bulk | Active | Requires Holder | Cartridge, Glass | 700 mA | 250 V | - | Fast Blow | 35A | 0.156 | CE, CSA, KC, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
BK/S500-1-RFUSE GLASS 1A 250VAC 5X20MM |
1,563 |
|
Datasheet |
S500 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Fast Blow | 35A | 0.6 | BSI, CCC, CSA, cULus, IMQ, SEMKO, VDE | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
021706.3HXPFUSE GLASS 6.3A 250VAC 5X20MM |
3,794 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 6.3 A | 250 V | - | Fast Blow | 63A | 62.465 | BSI, CCC, CE, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0217001.HXPFUSE GLASS 1A 250VAC 5X20MM |
3,550 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Fast Blow | 35A | 1.045 | BSI, CE, CCC, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0235001.MXPFUSE GLASS 1A 250VAC 5X20MM |
1,864 |
|
Datasheet |
235 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Fast Blow | 100A | 0.4675 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
BK/S500-3.15-RFUSE GLASS 3.15A 250VAC 5X20MM |
1,813 |
|
Datasheet |
S500 | Bulk | Active | Requires Holder | Cartridge, Glass | 3.15 A | 250 V | - | Fast Blow | 35A | 13.0 | BSI, CCC, CSA, cULus, IMQ, SEMKO, VDE | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0685P9100-01FUSE BOARD MOUNT 10A 50VDC 1206 |
78,337 |
|
Datasheet |
0685P | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | - | 50 V | Fast Blow | 150A | 25.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) | |
|
0235005.HXPFUSE GLASS 5A 125VAC 5X20MM |
15,404 |
|
Datasheet |
235 | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 125 V | - | Fast Blow | 10kA | 27.41 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0685P9150-01FUSE BOARD MOUNT 15A 50VDC 1206 |
7,195 |
|
Datasheet |
0685P | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | - | 50 V | Fast Blow | 150A | 80.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) | |
|
0312003.MXPFUSE GLASS 3A 250VAC 3AB 3AG |
4,088 |
|
Datasheet |
312 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | - | Fast Blow | 100A | 14.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0312005.MXPFUSE GLASS 5A 250VAC 3AB 3AG |
2,209 |
|
Datasheet |
312 | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Fast Blow | 200A | 50.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
.jpg)
|
031107.5MFUSE GLASS 7.5A 32VAC 32VDC 3AB |
1,958 |
|
Datasheet |
AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 7.5 A | 32 V | 32 V | - | - | - | - | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
031201.5MXPFUSE GLASS 1.5A 250VAC 3AB 3AG |
1,751 |
|
Datasheet |
312 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.5 A | 250 V | - | Fast Blow | 100A | 2.35 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0217008.HXPFUSE GLASS 8A 250VAC 5X20MM |
1,327 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 8 A | 250 V | - | Fast Blow | 80A | 198.16 | BSI, CE, CCC, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0680L3000-05FUSE BRD MNT 3A 125VAC/VDC 2SMD |
90,766 |
|
Datasheet |
0680L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 125 V | 125 V | Slow Blow | 50A AC, 100A DC | 13.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm) | |
|
|
0680L0750-05FUSE BRD MT 750MA 125VAC/VDC SMD |
61,816 |
|
Datasheet |
0680L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 125 V | 125 V | Slow Blow | 50A AC, 100A DC | 0.62 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm) |
