Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MRT 1-AMMOFUSE BOARD MNT 1A 250VAC RADIAL |
4,000 |
|
Datasheet |
MRT | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | - | Slow Blow | 50A | 7.0 | AEC-Q200, CCC, CE, CSA, cURus, PSE, SEMKO, VDE | -55°C ~ 125°C | - | 0.329" Dia x 0.303" H (8.35mm x 7.70mm) | |
|
0287002.PXSFUSE AUTO 2A 32VDC BLADE ATO/ATC |
3,026 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 2 A | - | 32 V | - | 1kA | 1.4 | - | -40°C ~ 125°C | Gray | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0287005.PXSFUSE AUTO 5A 32VDC BLADE ATO/ATC |
2,653 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 5 A | - | 32 V | - | 1kA | 26.0 | - | -40°C ~ 125°C | Tan | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0297005.LFUSE AUTOMOTIVE 5A 32VDC BLADE |
2,551 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 5 A | - | 32 V | Fast Blow | 1kA | 25.0 | UR | -40°C ~ 125°C | Tan | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
028707.5PXSFUSE AUTO 7.5A 32VDC BLADE ATO |
2,138 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 32 V | - | 1kA | 60.0 | - | -40°C ~ 125°C | Brown | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0287003.PXSFUSE AUTO 3A 32VDC BLADE ATO/ATC |
2,004 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 3 A | - | 32 V | - | 1kA | 7.4 | - | -40°C ~ 125°C | Purple | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0287030.PXSFUSE AUTO 30A 32VDC BLADE ATO |
1,970 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 30 A | - | 32 V | - | 1kA | 1510.0 | - | -40°C ~ 125°C | Blue, Green | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|

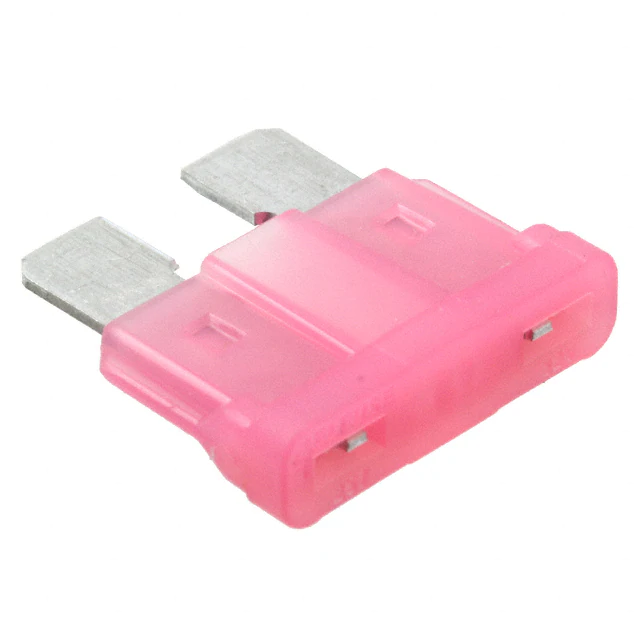

0287004.PXSFUSE AUTO 4A 32VDC BLADE ATO/ATC |
1,792 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 4 A | - | 32 V | - | 1kA | 14.0 | - | -40°C ~ 125°C | Pink | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0287025.PXSFUSE AUTO 25A 32VDC BLADE ATO |
1,540 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 25 A | - | 32 V | - | 1kA | 1080.0 | - | -40°C ~ 125°C | White | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0287040.PXSFUSE AUTO 40A 32VDC BLADE ATO |
1,279 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 40 A | - | 32 V | - | 1kA | 3310.0 | - | -40°C ~ 125°C | Orange | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0679L9150-05FUSE BRD MNT 15A 125VAC/VDC 2SMD |
62,991 |
|
Datasheet |
0679L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 103.5 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
5HT 250-RFUSE CERAMIC 250MA 250VAC 5X20MM |
46,616 |
|
Datasheet |
5HT | Bulk | Active | Requires Holder | Cartridge, Ceramic | 250 mA | 250 V | - | Slow Blow | 1.5kA | 0.1 | CCC, CE, CSA, cULus | -55°C ~ 125°C | - | 0.201" Dia x 0.787" L (5.10mm x 20.00mm) | |
|
SF-1206F700-2FUSE BOARD MOUNT 7A 32VDC 1206 |
22,211 |
|
Datasheet |
SinglFuse™ SF-1206F | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 7 A | - | 32 V | Fast Blow | 50A | 3.25 | UL | -20°C ~ 105°C | - | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) | |
|
MRT 3.15-BULKFUSE BRD MNT 3.15A 250VAC RADIAL |
5,132 |
|
Datasheet |
MRT | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3.15 A | 250 V | - | Slow Blow | 50A | 69.0 | AEC-Q200, CCC, CE, CSA, cURus, PSE, SEMKO, VDE | -55°C ~ 125°C | - | 0.329" Dia x 0.303" H (8.35mm x 7.70mm) | |
|
3SB 10-RFUSE GLASS 10A 125VAC 3AB 3AG |
1,725 |
|
Datasheet |
3SB | Bulk | Active | Requires Holder | Cartridge, Glass | 10 A | 125 V | - | Slow Blow | 10kA | 817.0 | CE, CSA, cULus, PSE | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
0235003.MXPFUSE GLASS 3A 250VAC 5X20MM |
1,591 |
|
Datasheet |
235 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | - | Fast Blow | 100A | 8.395 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0697H9100-02FUSE BRD MT 10A 350VAC 72VDC RAD |
105,996 |
|
Datasheet |
0697H | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 10 A | 350 V | 72 V | Slow Blow | 150A AC, 200A DC | 370.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
3413.0329.22FUSE BOARD MOUNT 12A 32VAC 63VDC |
102,160 |
|
Datasheet |
UST 1206 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 12 A | 32 V | 63 V | Slow Blow | 100A | 33.0 | cURus | -55°C ~ 90°C | - | 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm) | |
|
0697H8000-01FUSE BRD MT 8A 350VAC 72VDC RAD |
73,354 |
|
Datasheet |
0697H | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 8 A | 350 V | 72 V | Slow Blow | 150A AC, 200A DC | 325.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
|
0697H9200-01FUSE BRD MT 20A 350VAC 72VDC RAD |
34,528 |
|
Datasheet |
0697H | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 20 A | 350 V | 72 V | Slow Blow | 150A AC, 200A DC | 1100.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) |
