Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SF-1206FP250-2FUSE BOARD MOUNT 2.5A 32VDC 1206 |
31,956 |
|
Datasheet |
SinglFuse™ SF-1206FP | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2.5 A | - | 32 V | Fast Blow | 50A | 0.445 | UL | -20°C ~ 105°C | - | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) | |
|

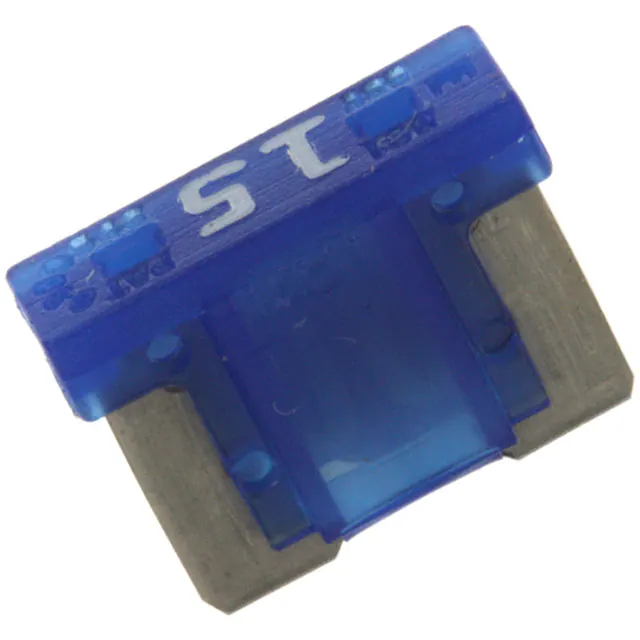

0891015.NXSFUSE AUTO 15A 58VDC BLADE MINI |
11,948 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 15 A | - | 58 V | Fast Blow | 1kA | 198.0 | - | -40°C ~ 125°C | Blue | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
0680L0630-05FUSE BRD MT 630MA 125VAC/VDC SMD |
11,766 |
|
Datasheet |
0680L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 630 mA | 125 V | 125 V | Slow Blow | 50A AC, 100A DC | 0.43 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm) | |
|

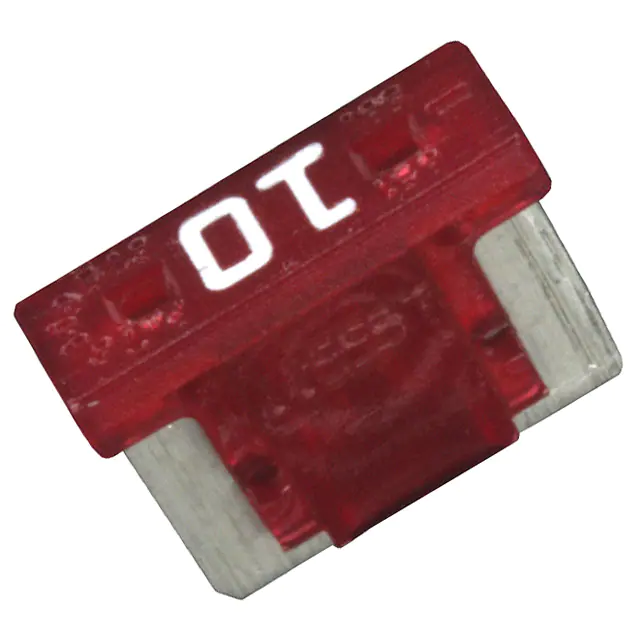

0891010.NXSFUSE AUTO 10A 58VDC BLADE MINI |
7,803 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 10 A | - | 58 V | Fast Blow | 1kA | 102.0 | - | -40°C ~ 125°C | Red | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|

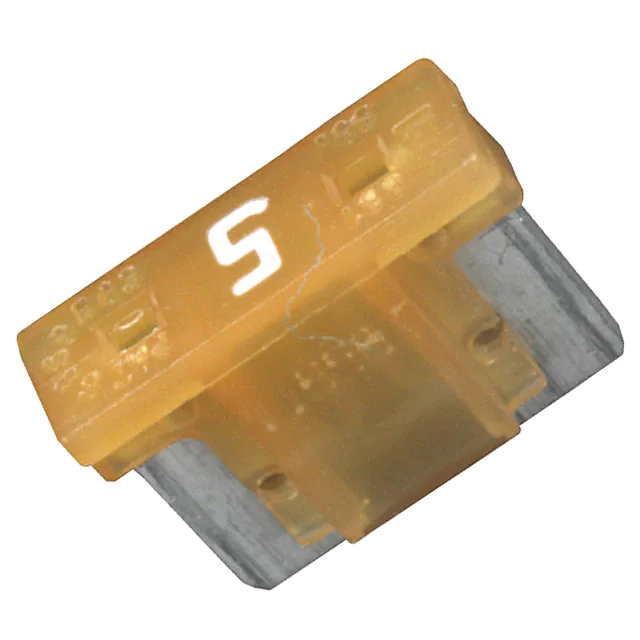

0891005.NXSFUSE AUTOMOTIVE 5A 58VDC BLADE |
6,246 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 5 A | - | 58 V | Fast Blow | 1kA | 22.0 | - | -40°C ~ 125°C | Tan | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
0891020.NXSFUSE AUTO 20A 58VDC BLADE MINI |
5,427 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 20 A | - | 58 V | Fast Blow | 1kA | 420.0 | - | -40°C ~ 125°C | Yellow | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
089107.5NXSFUSE AUTO 7.5A 58VDC BLADE MINI |
2,221 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 58 V | Fast Blow | 1kA | 53.0 | - | -40°C ~ 125°C | Brown | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
0312001.MXPFUSE GLASS 1A 250VAC 3AB 3AG |
1,275 |
|
Datasheet |
312 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Fast Blow | 35A | 0.76 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
BK/AGC-12-RFUSE GLASS 12A 32VAC 3AB 3AG |
1,271 |
|
Datasheet |
AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 12 A | 32 V | - | Fast Blow | 1kA | 696.96 | CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0697H0500-02FUSE BRD MNT 500MA 350VAC 100VDC |
132,575 |
|
Datasheet |
0697H | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 350 V | 100 V | Slow Blow | 100A AC, 65A DC | 1.1 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
5HT 6.3-RFUSE CERAMIC 6.3A 250VAC 5X20MM |
89,671 |
|
Datasheet |
5HT | Bulk | Active | Requires Holder | Cartridge, Ceramic | 6.3 A | 250 V | - | Slow Blow | 1.5kA | 181.0 | CCC, CE, CSA, cURus, SEMKO, VDE | -55°C ~ 125°C | - | 0.201" Dia x 0.787" L (5.10mm x 20.00mm) | |
|
|
0697H1000-02FUSE BRD MT 1A 350VAC 100VDC RAD |
59,218 |
|
Datasheet |
0697H | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 350 V | 100 V | Slow Blow | 100A AC, 65A DC | 6.1 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
0697H0250-01FUSE BRD MNT 250MA 350VAC 100VDC |
52,136 |
|
Datasheet |
0697H | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 250 mA | 350 V | 100 V | Slow Blow | 100A AC, 65A DC | 0.18 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
|
0680L6300-05FUSE BRD MNT 6.3A 125VAC/VDC SMD |
35,878 |
|
Datasheet |
0680L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 6.3 A | 125 V | 125 V | Slow Blow | 50A AC, 100A DC | 43.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm) | |
|
F0402E0R25FSTRFUSE BOARD MNT 250MA 32VDC 0402 |
34,527 |
|
Datasheet |
Accu-Guard® II | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | - | 32 V | Fast Blow | 50A | 5.0E-5 | cUL, UL | -55°C ~ 125°C | - | 0.039" L x 0.022" W x 0.016" H (1.00mm x 0.55mm x 0.40mm) | |
|
|
0697H0500-01FUSE BRD MNT 500MA 350VAC 100VDC |
21,080 |
|
Datasheet |
0697H | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 350 V | 100 V | Slow Blow | 100A AC, 65A DC | 1.1 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
|
0697H3150-02FUSE BRD MNT 3.15A 350VAC 72VDC |
13,403 |
|
Datasheet |
0697H | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3.15 A | 350 V | 72 V | Slow Blow | 150A AC, 200A DC | 58.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
|
0697H2000-02FUSE BRD MT 2A 350VAC 100VDC RAD |
10,066 |
|
Datasheet |
0697H | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 350 V | 100 V | Slow Blow | 100A AC, 65A DC | 23.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
|
0312007.HXPFUSE GLASS 7A 250VAC 3AB 3AG |
7,928 |
|
Datasheet |
312 | Bulk | Active | Requires Holder | Cartridge, Glass | 7 A | 250 V | - | Fast Blow | 200A | 118.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0697H3150-01FUSE BRD MNT 3.15A 350VAC 72VDC |
5,184 |
|
Datasheet |
0697H | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3.15 A | 350 V | 72 V | Slow Blow | 150A AC, 200A DC | 58.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) |
